Australia’s First Solution for the new 7-Seat Boot Space

250 Prado Platform

Loaded Drawers proudly introduces the 250 Prado Platform, the first-ever solution tailored for the all-new Toyota Land Cruiser Prado 7-seat boot space. This innovative platform is perfect for adventure seekers and everyday drivers, offering increased cargo capacity, durability, and ease of use—all while being fully reversible.

Watch It in Action!

Click here to view our 250 Prado 'Rear Seat Delete' video on YouTube.

Download our fitting guide for full installation instructions.

Refer to the downloadable written fitting instructions below for a detailed installation guide.

Download Fitting Instructions

View our step-by-step photo fitting guide below:

Read through the entire instruction guide before installing your Rear Seat Delete. Kindly note, not all photos have written instructions.

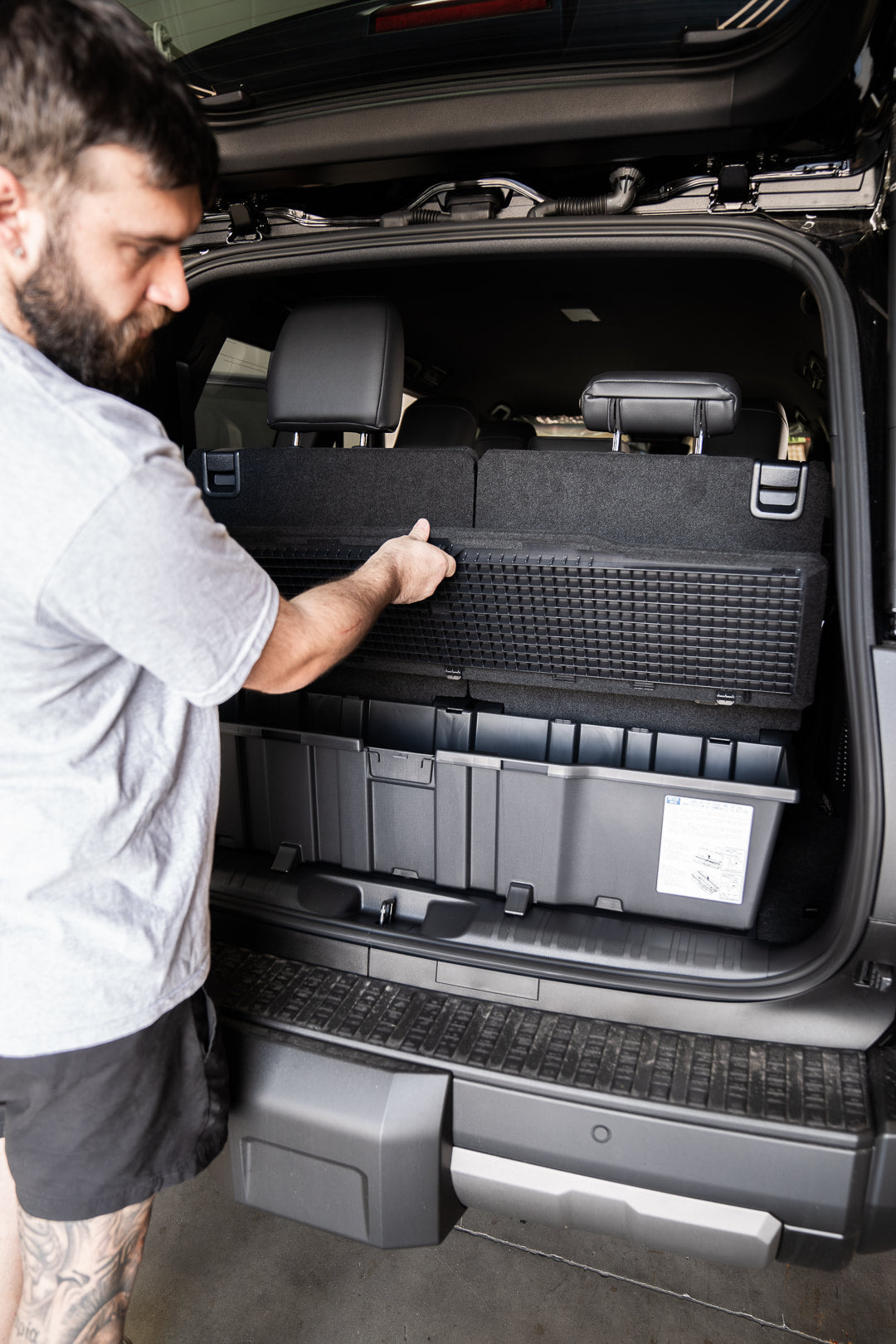

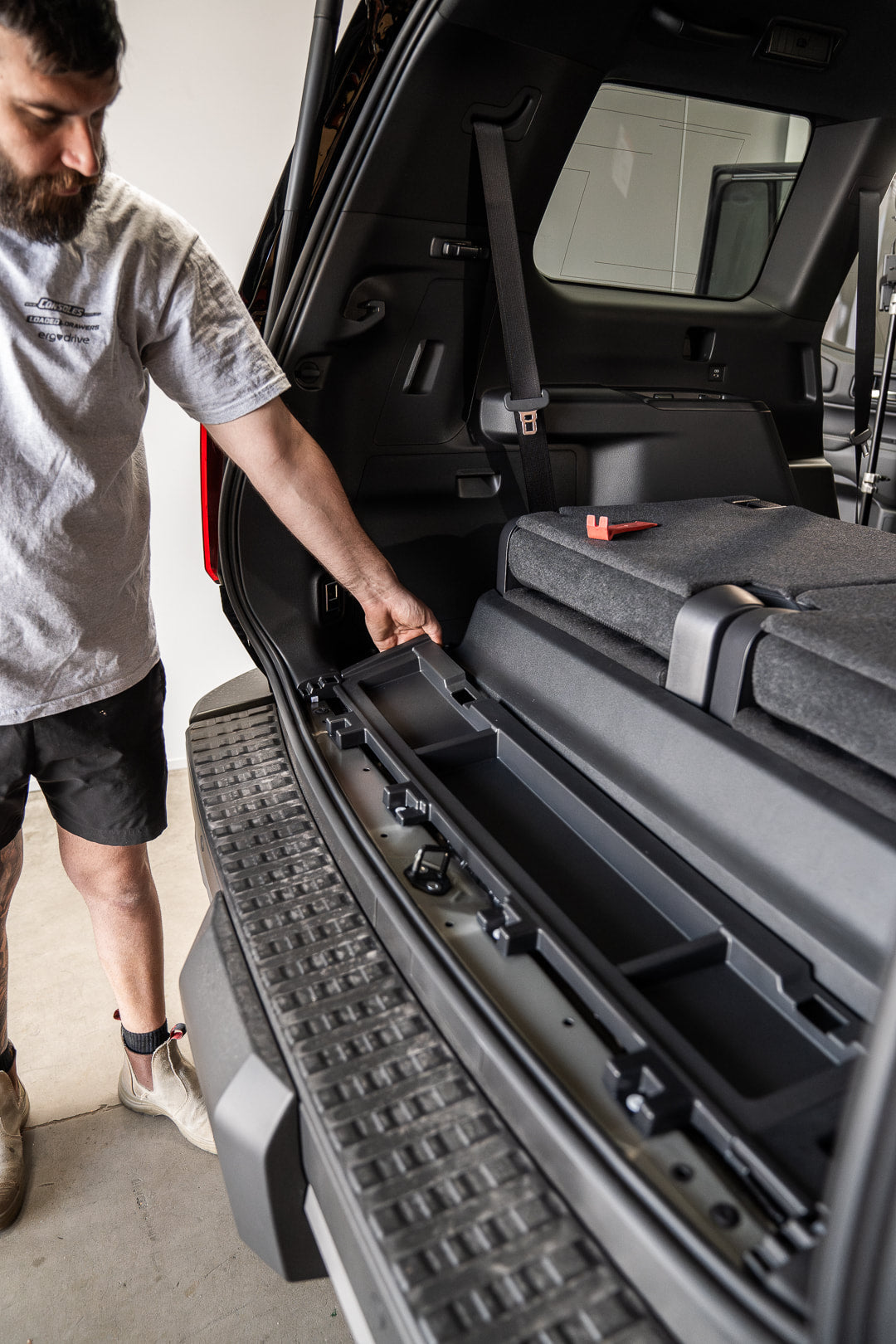

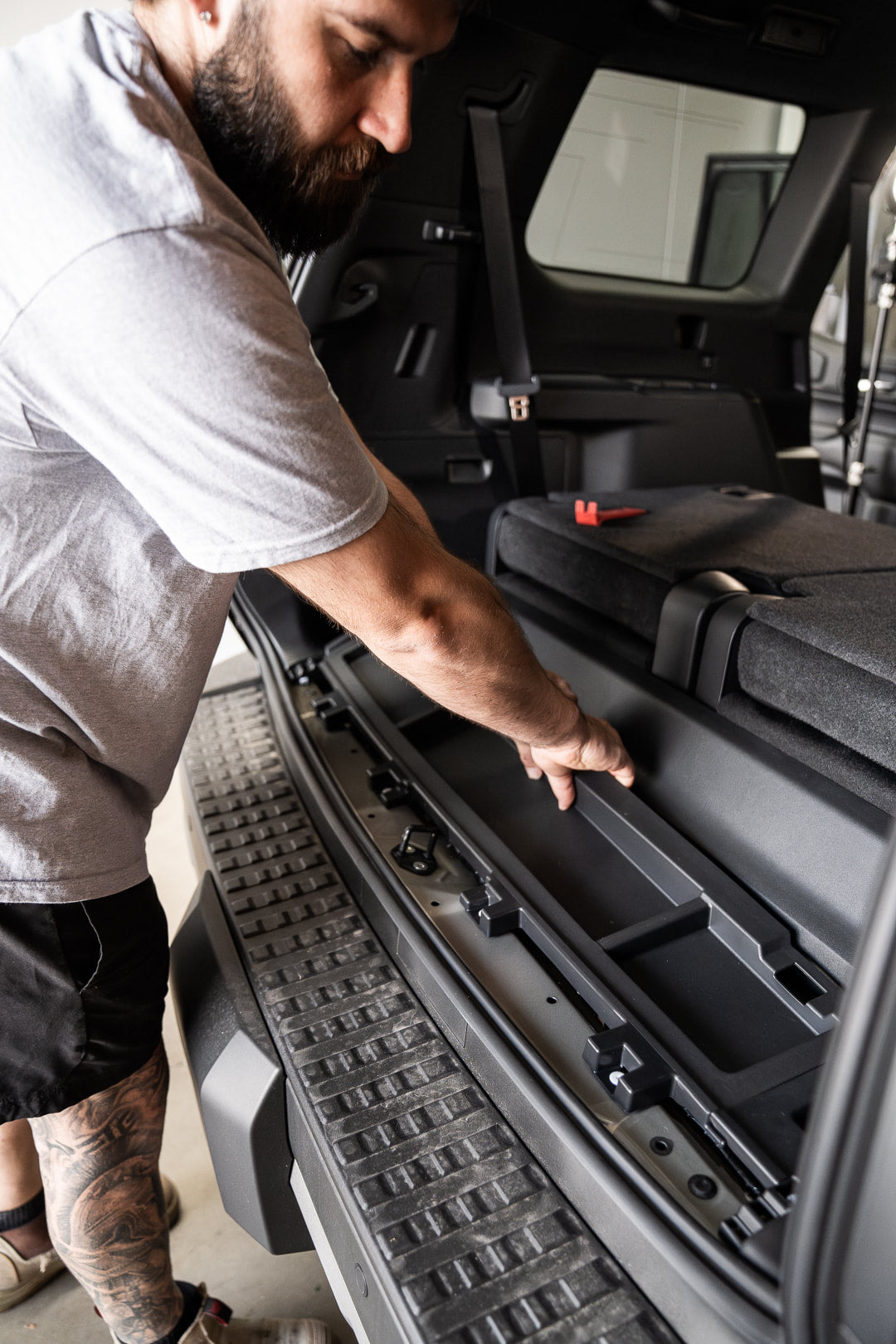

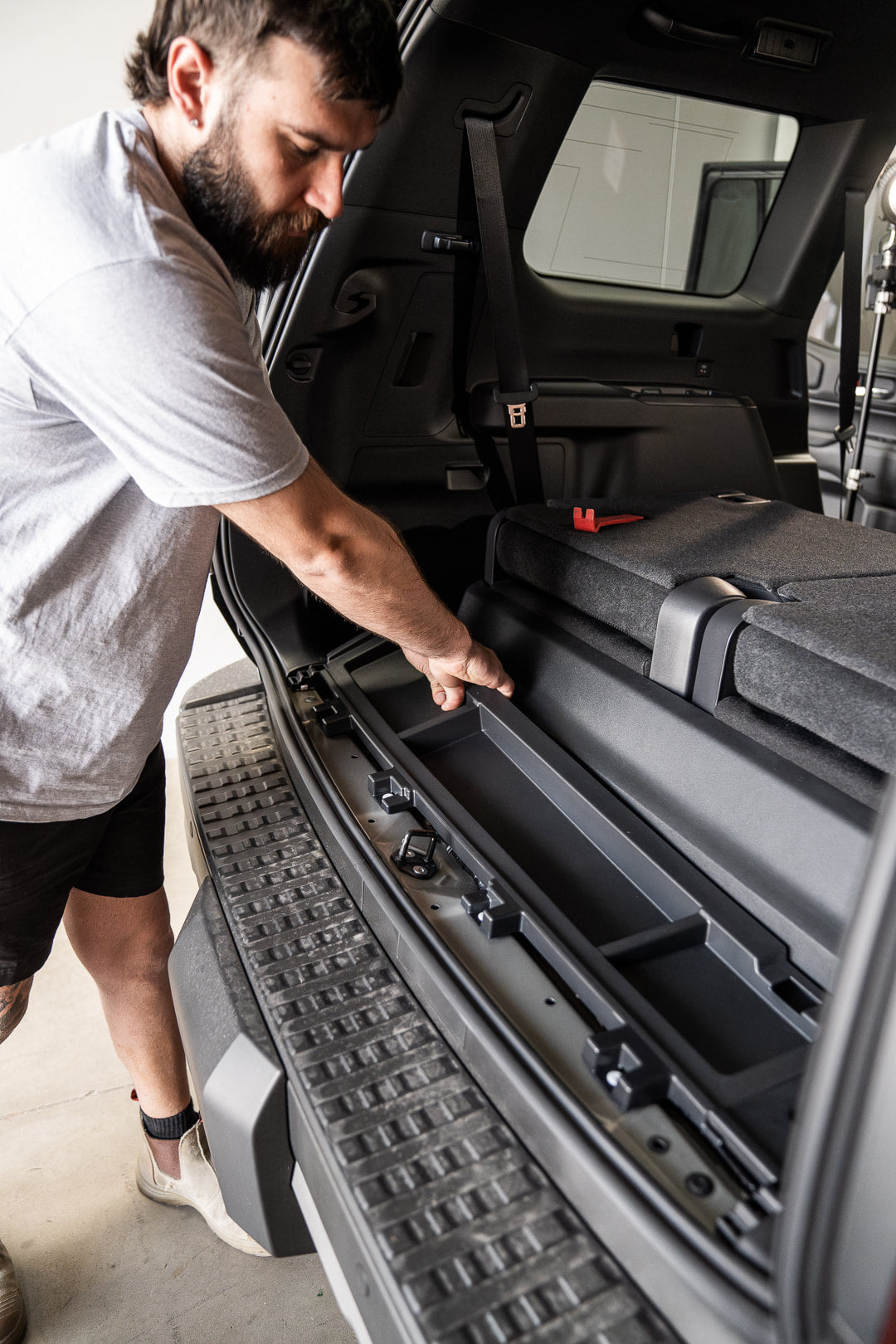

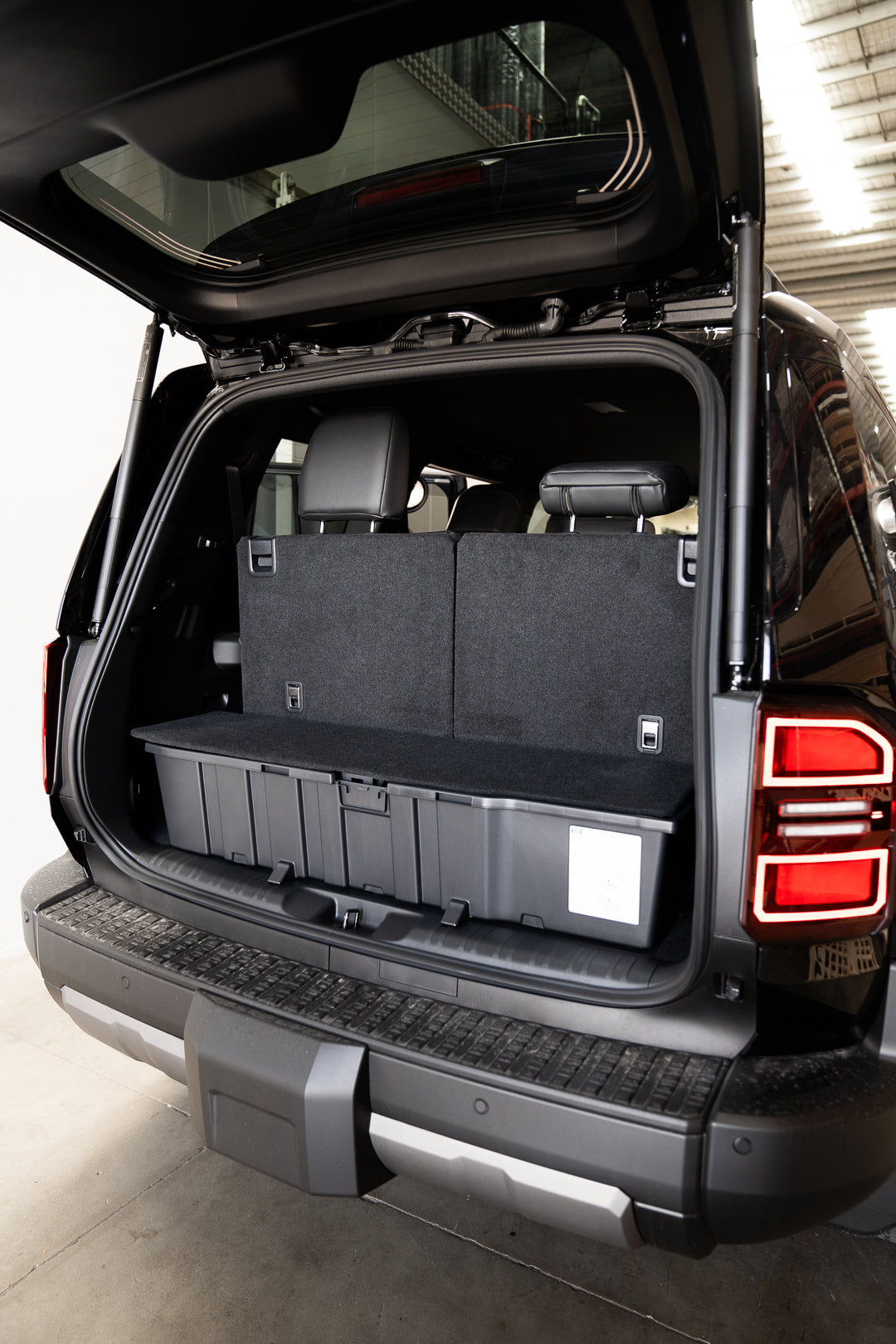

Open the rear storage compartment of the vehicle to access the mounting latches.

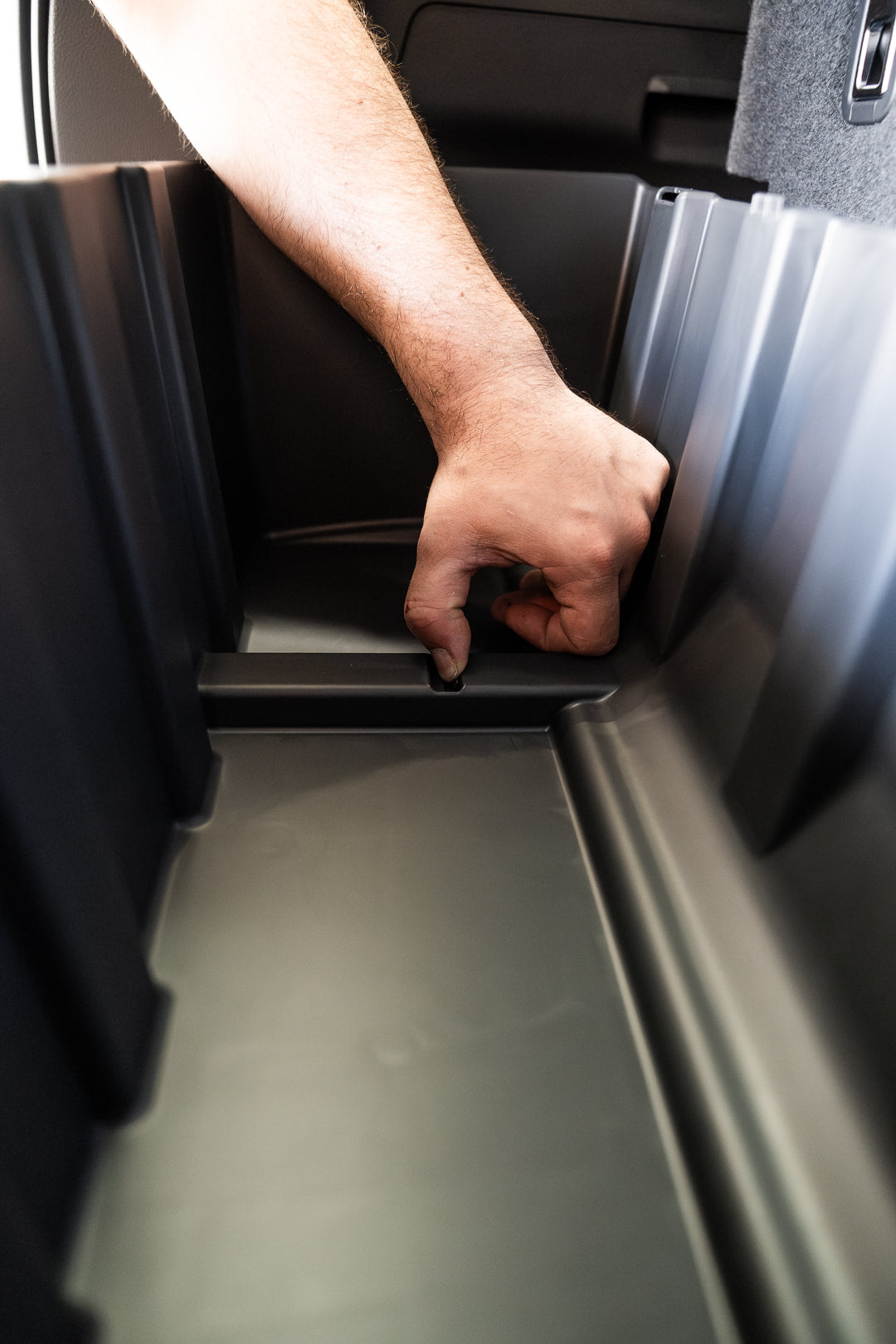

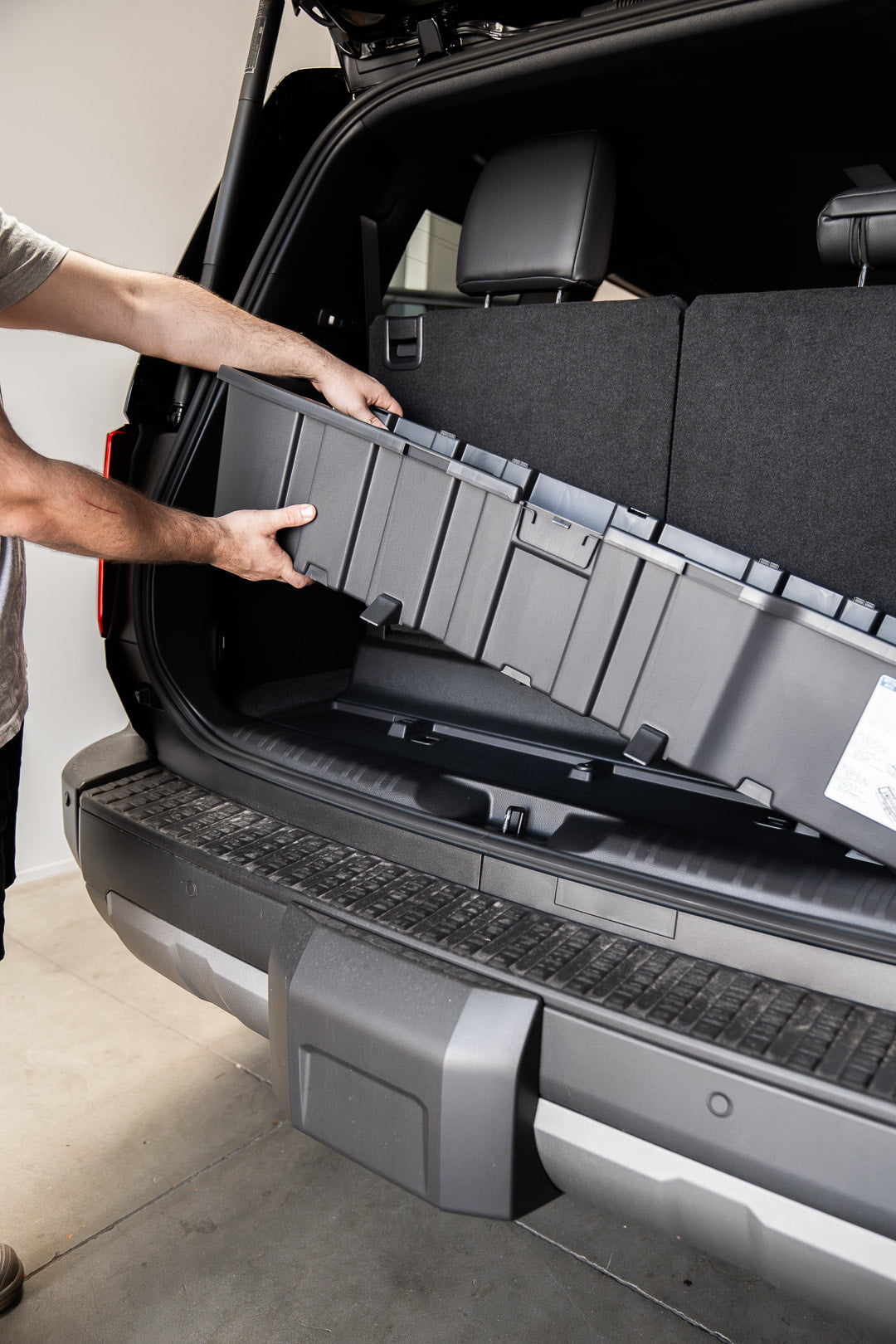

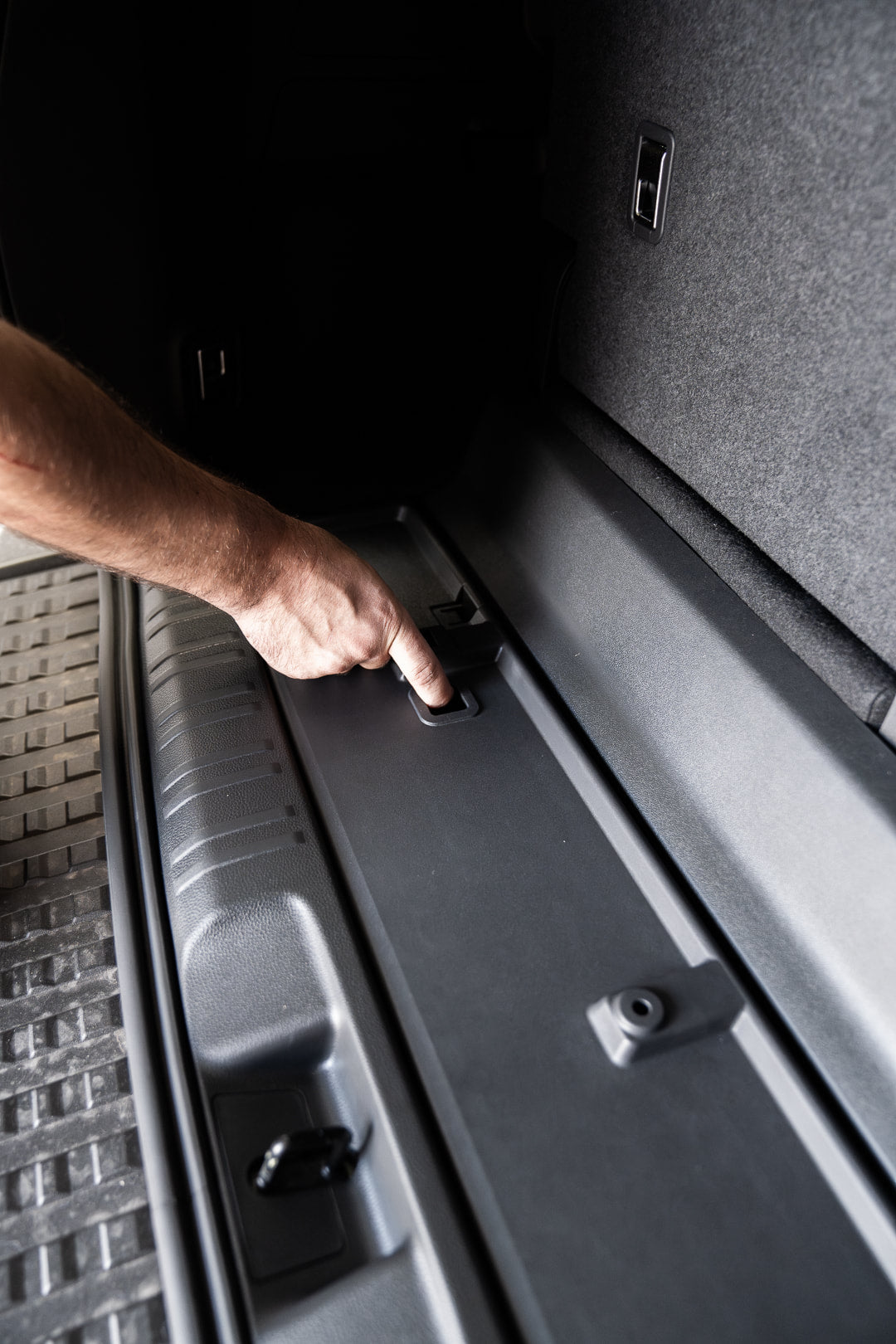

Push both latches inward to release the container.

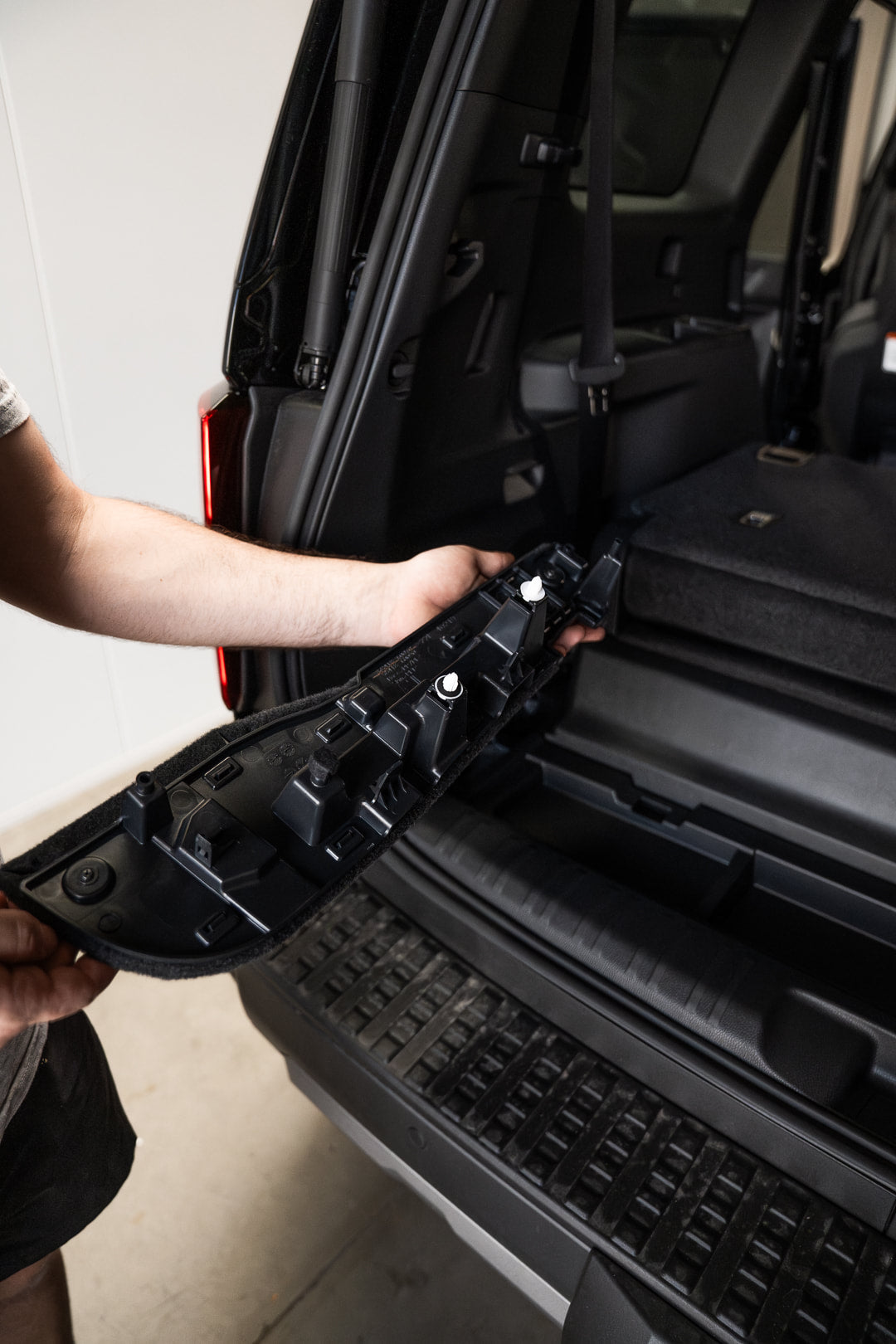

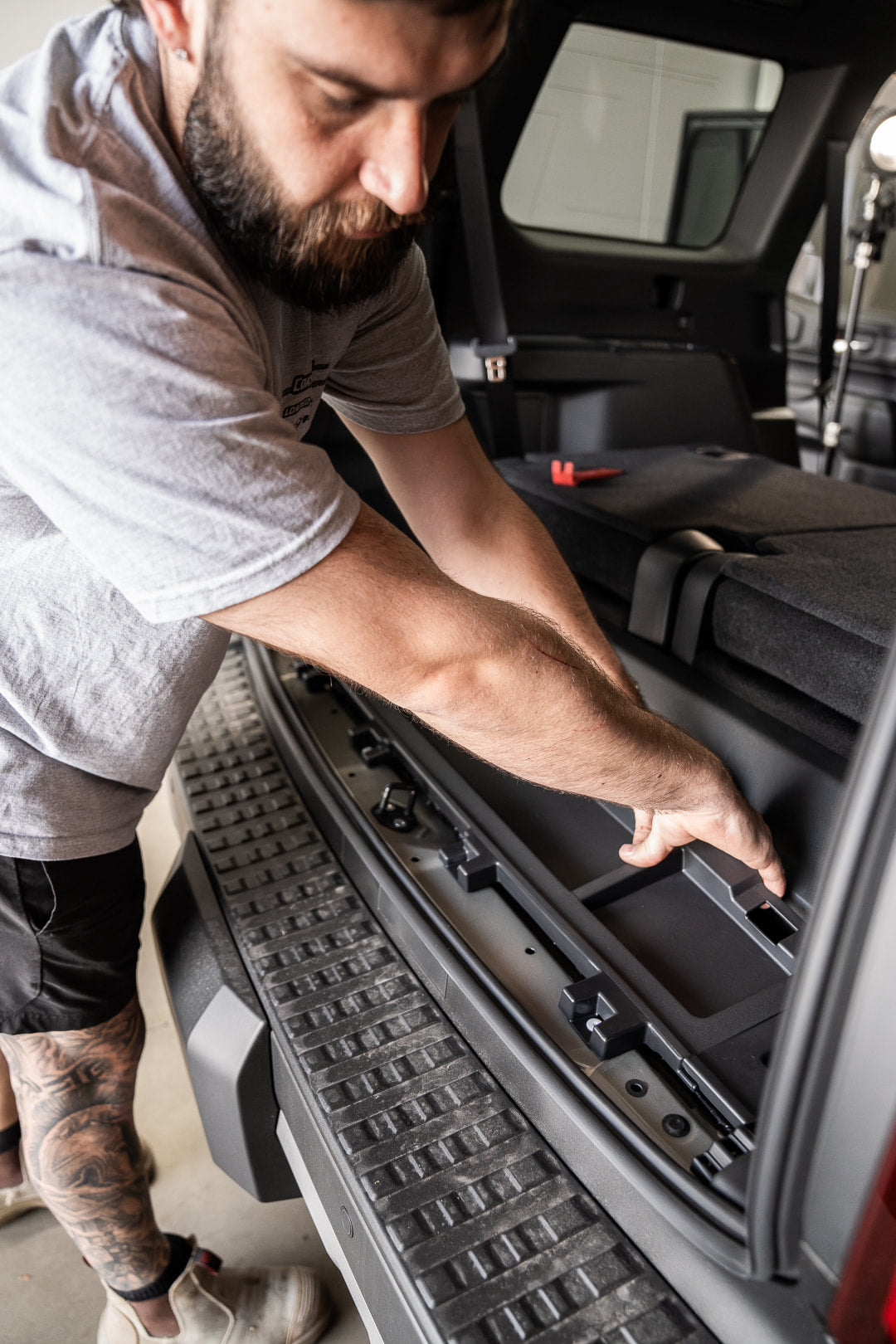

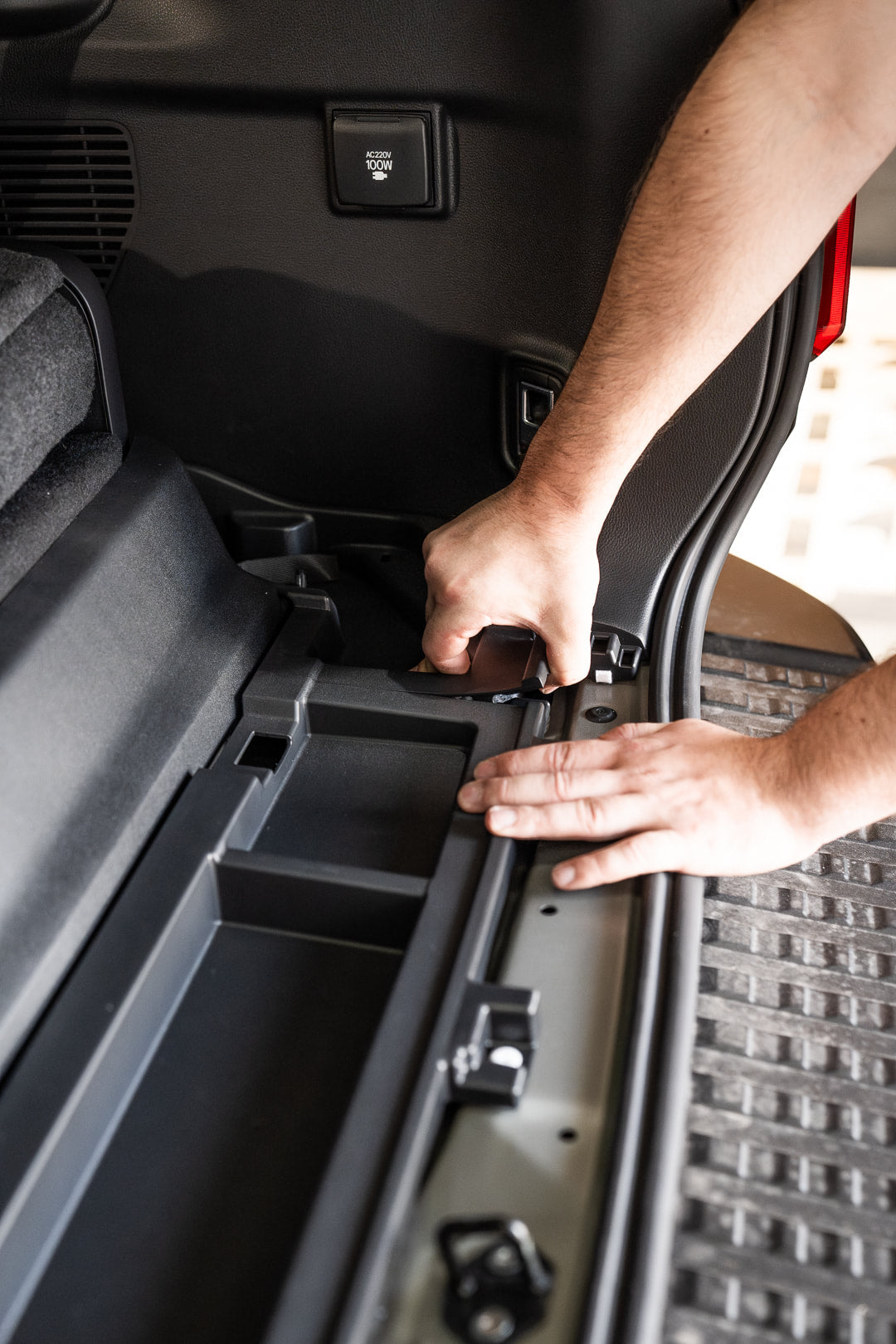

Use your hands to gently pull up the trim.

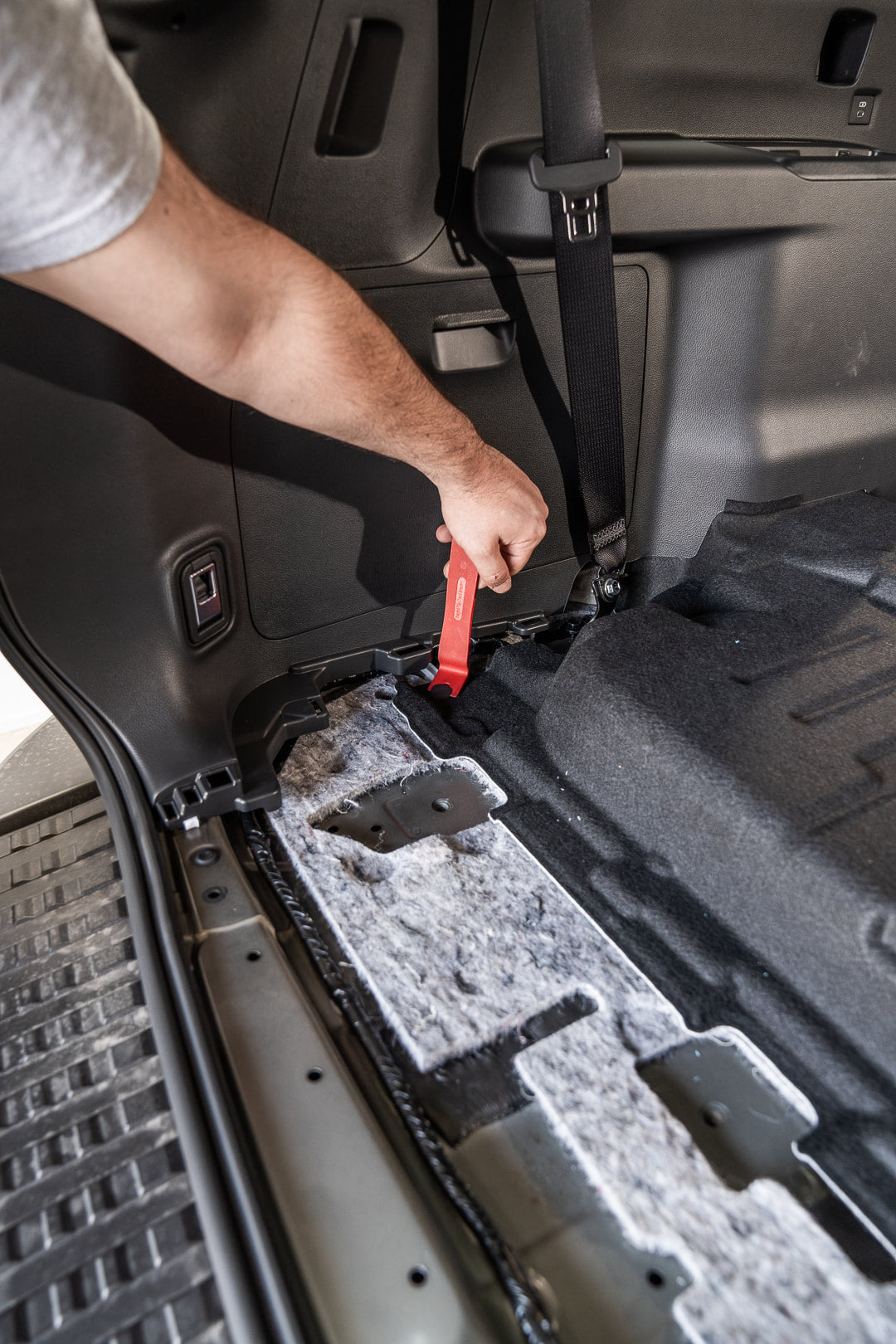

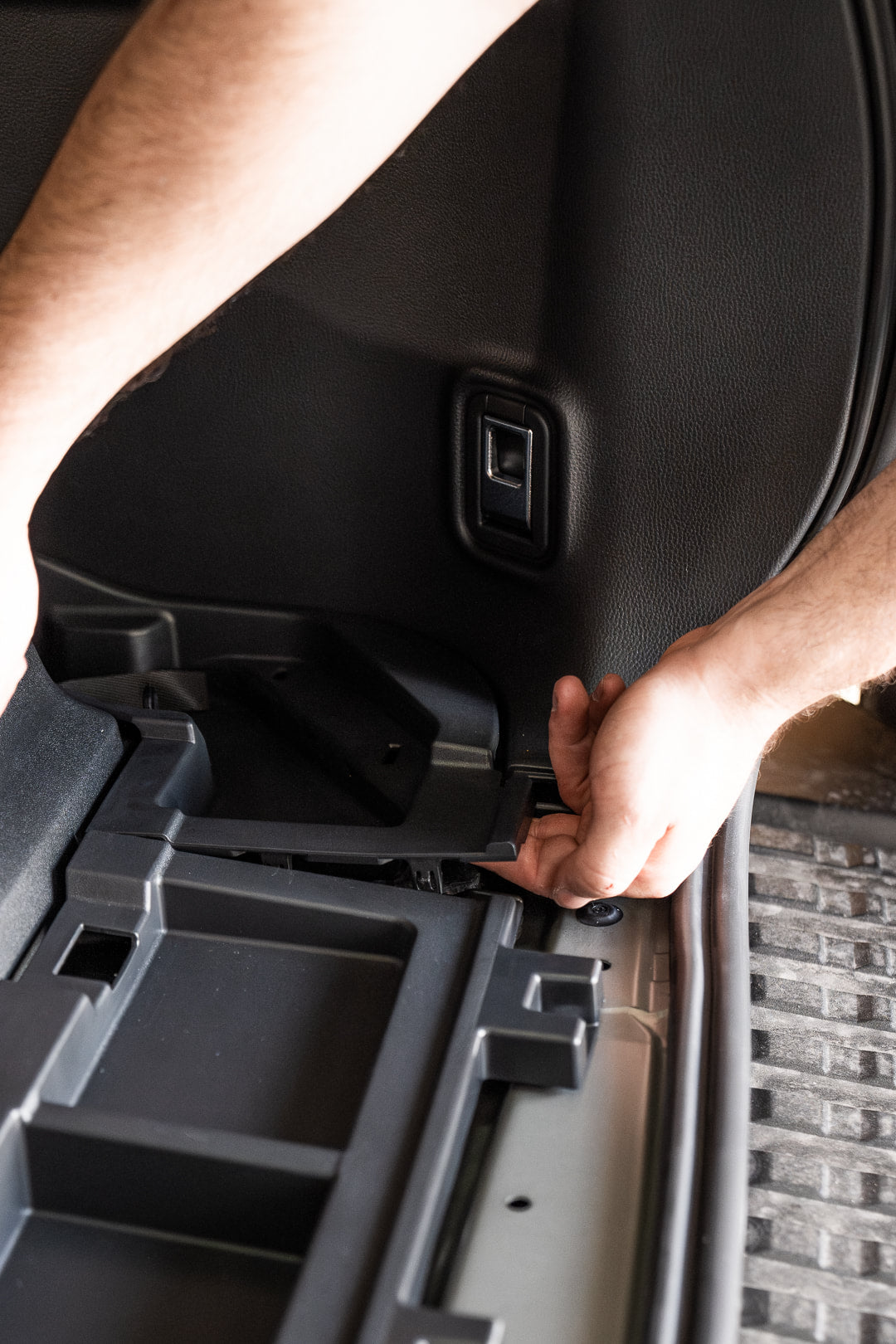

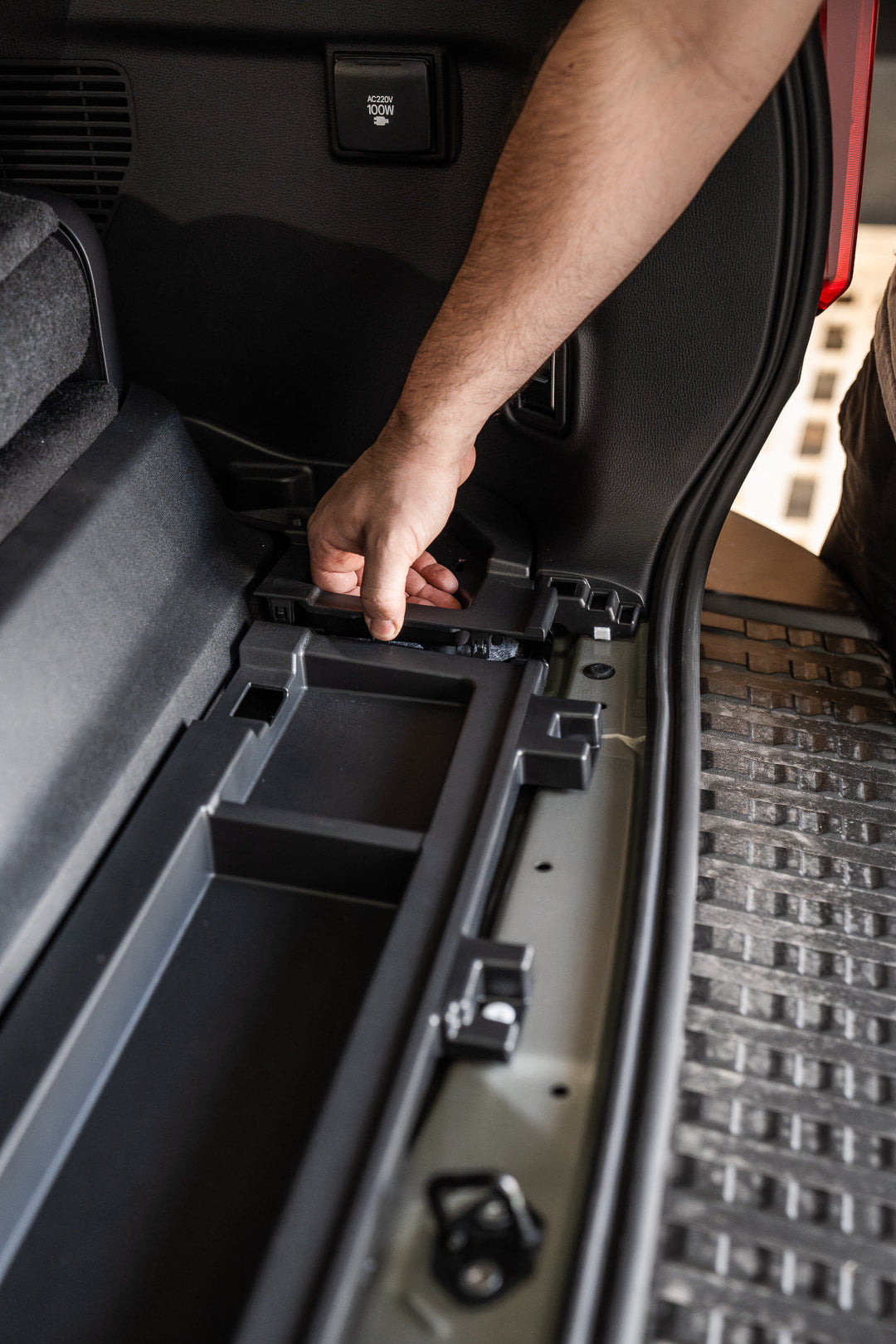

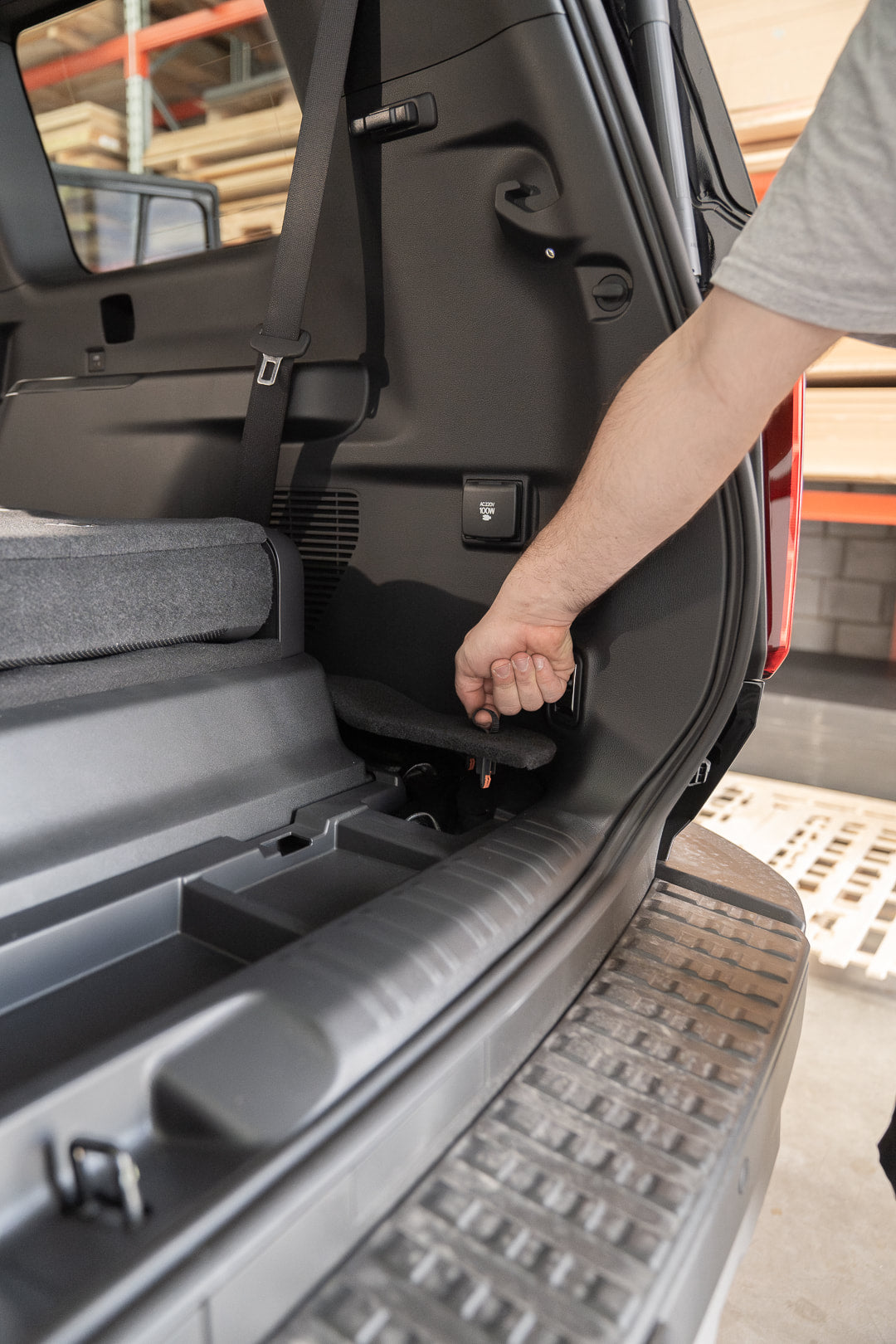

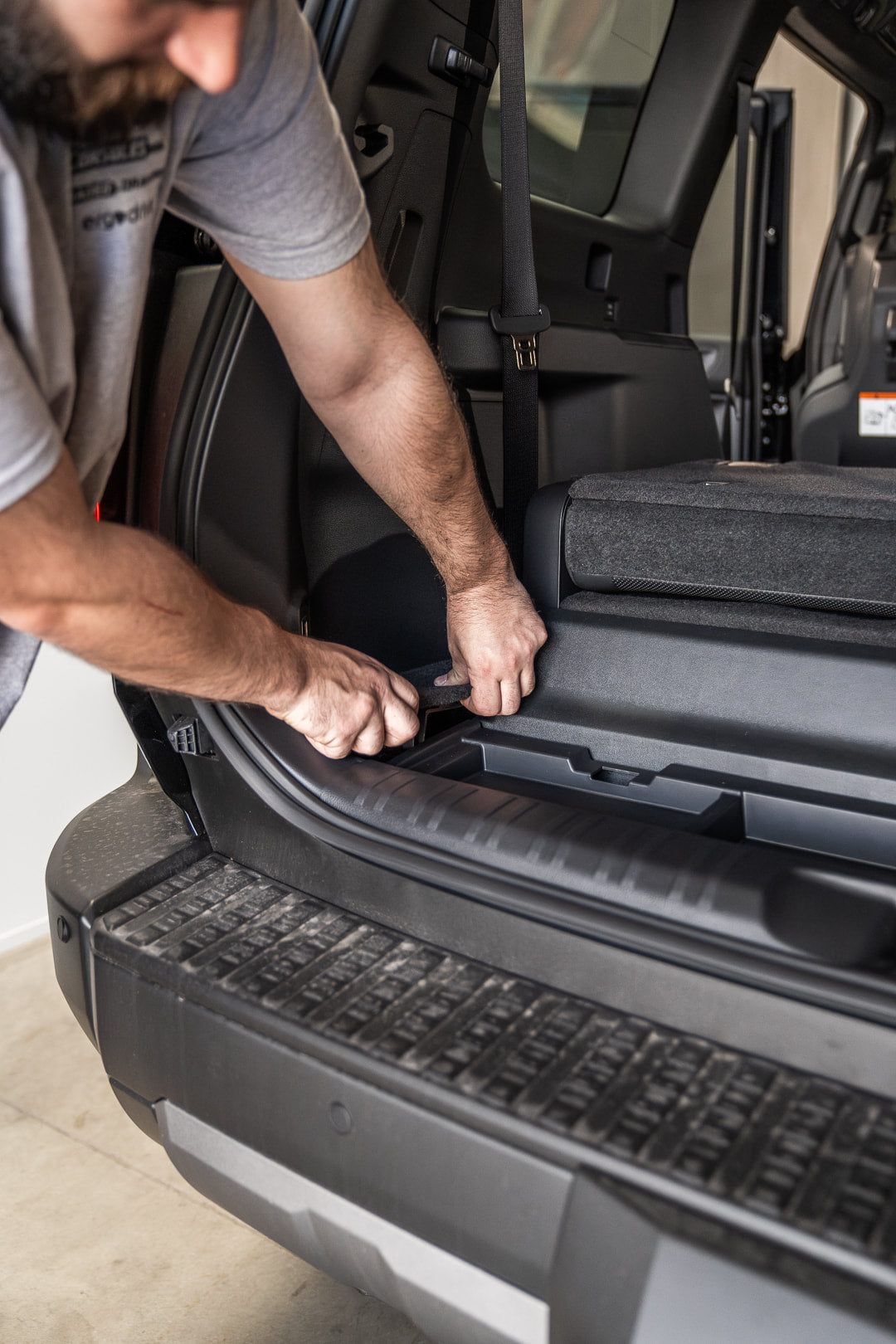

Remove both side wings from the vehicle, applying gentle pressure to release the trim clips.

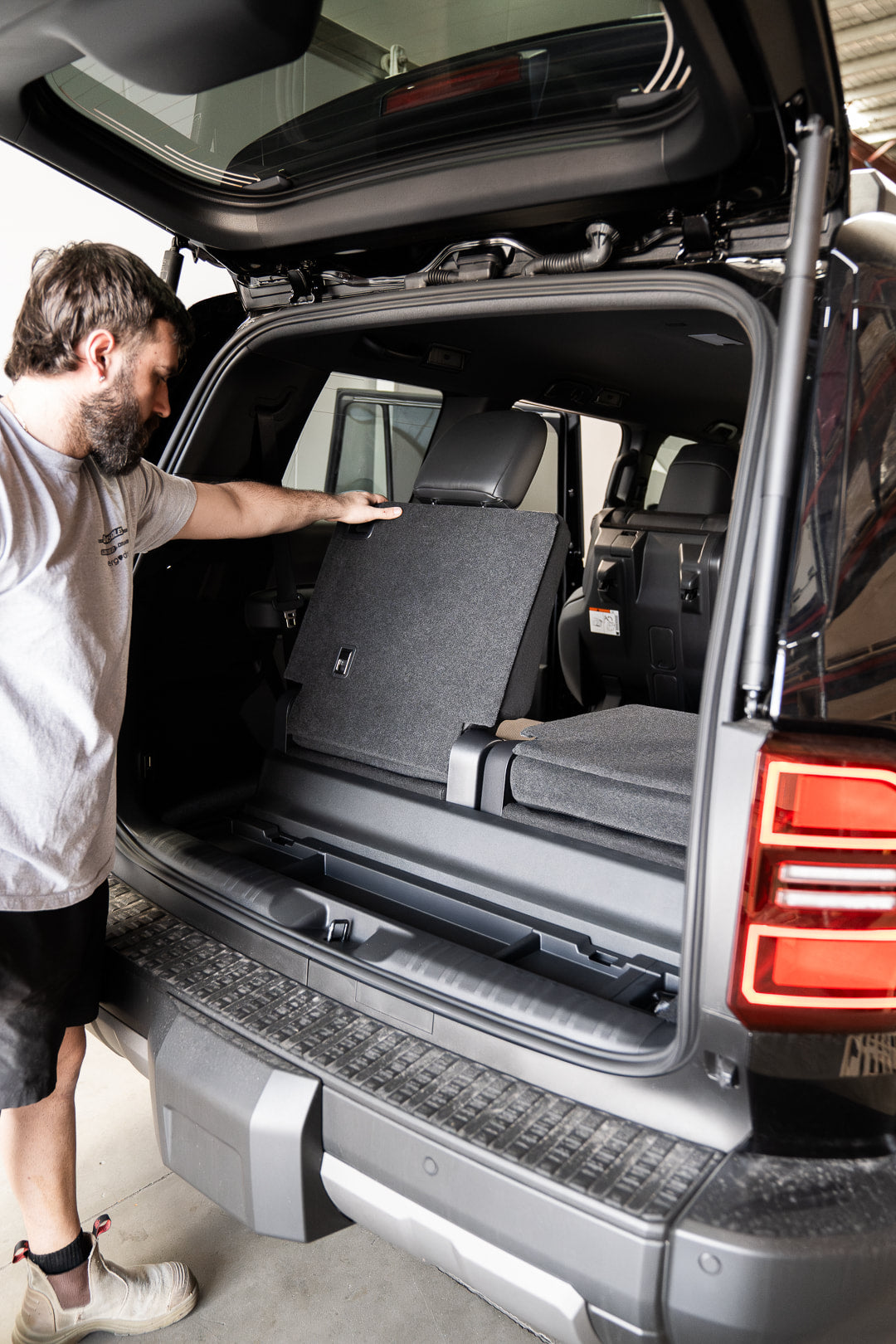

Fold both rear seats down before removal.

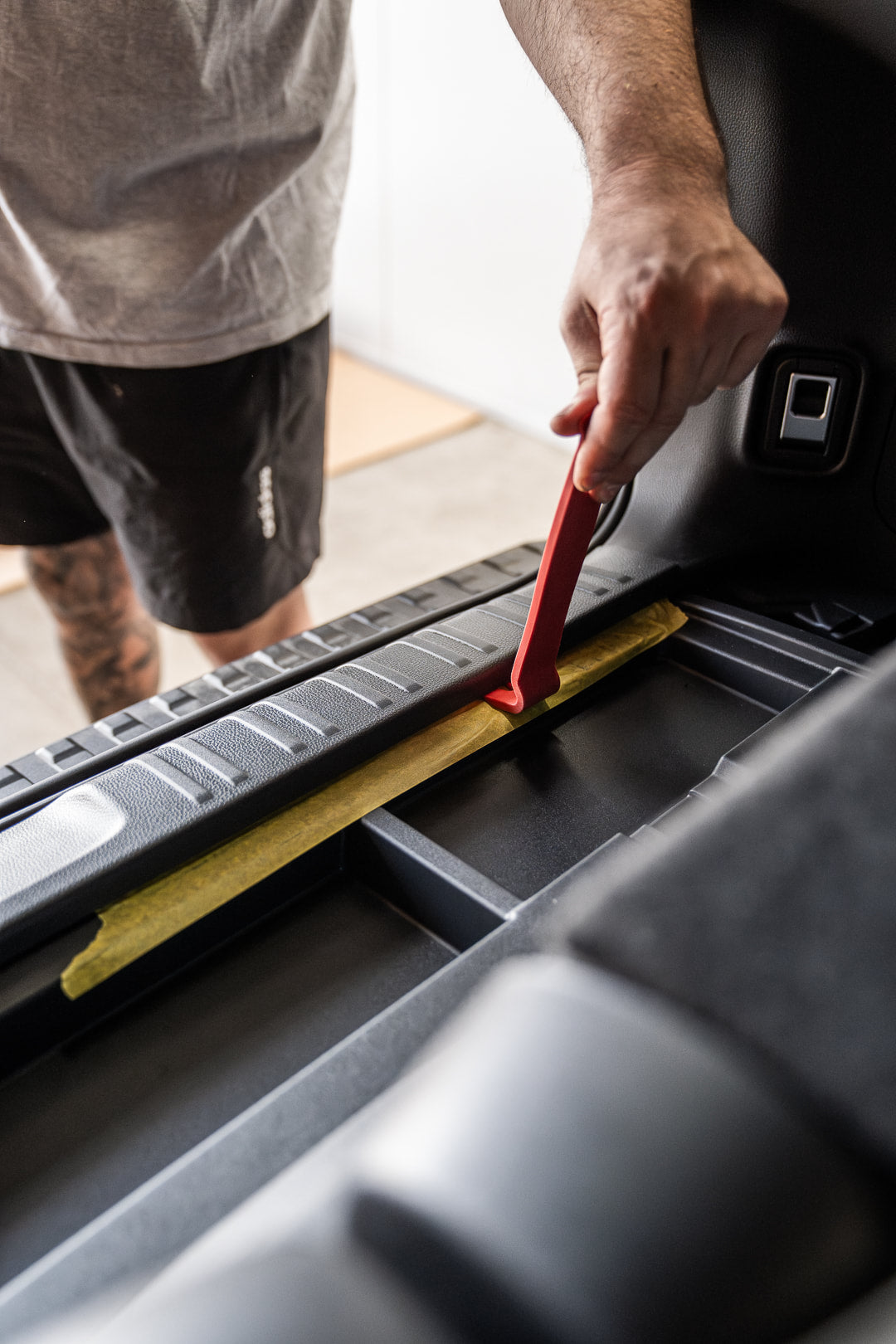

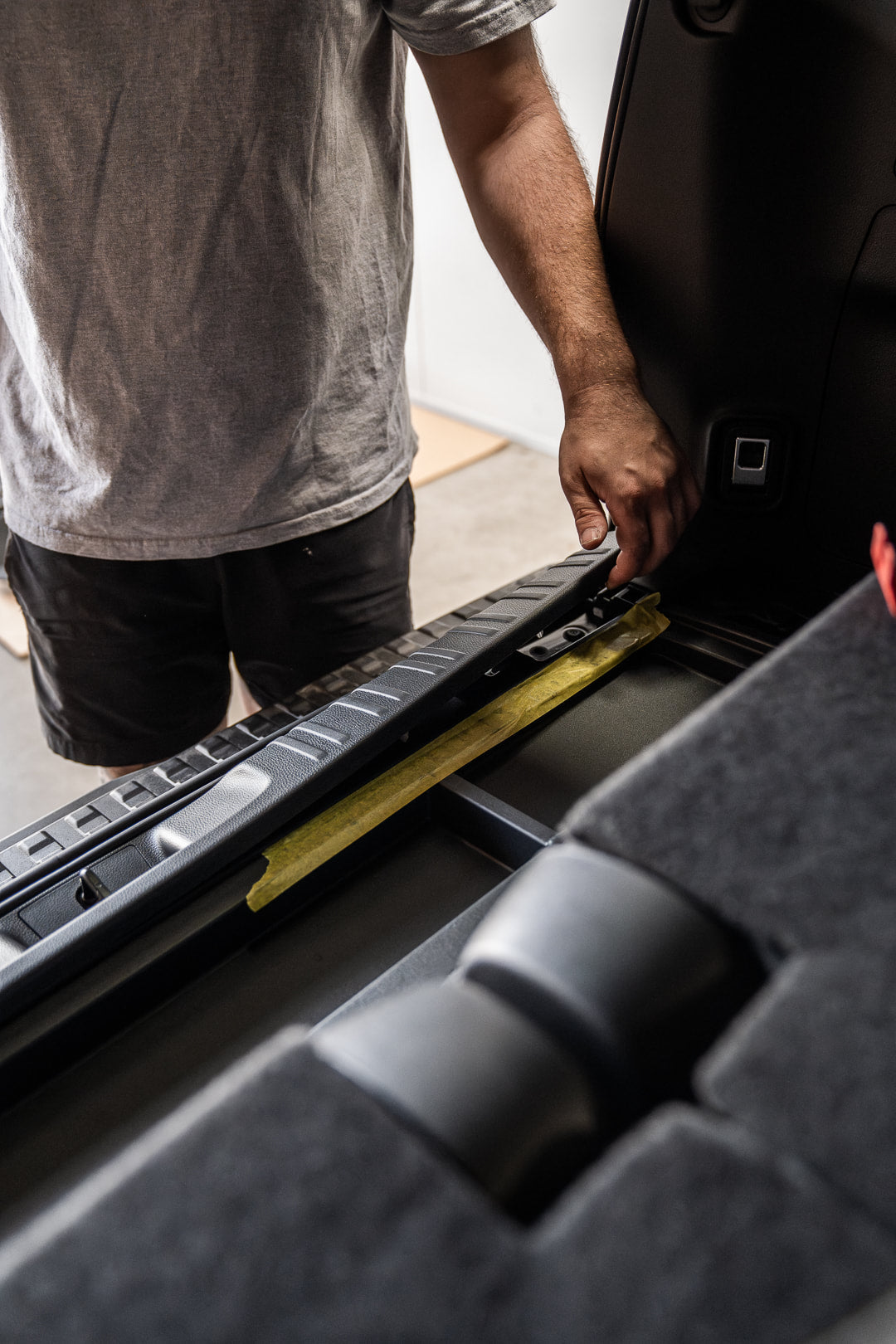

* Recommened * Apply a layer of tape before using your trim removal tool to create a protective barrier.

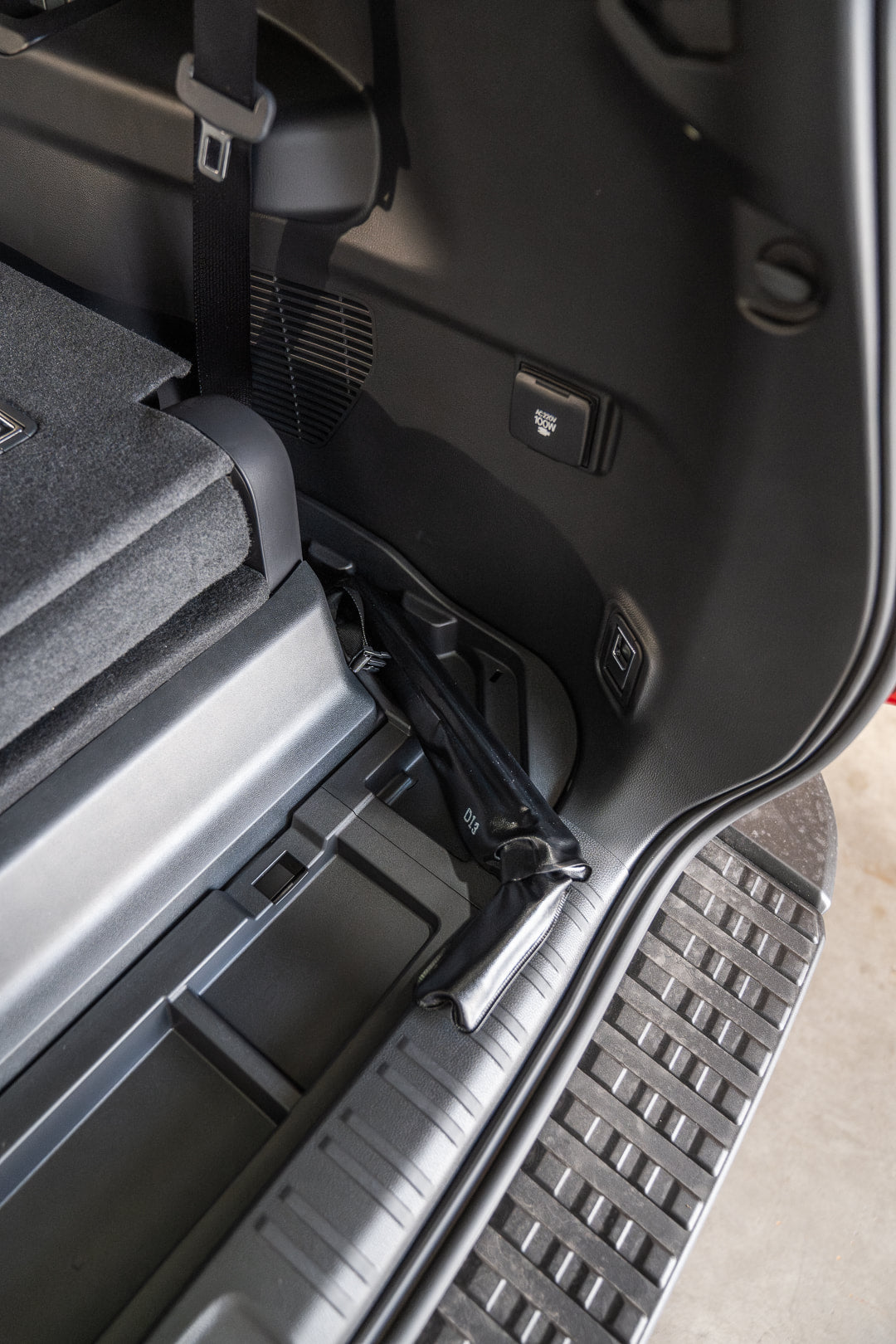

Remove factory tool kit and set aside

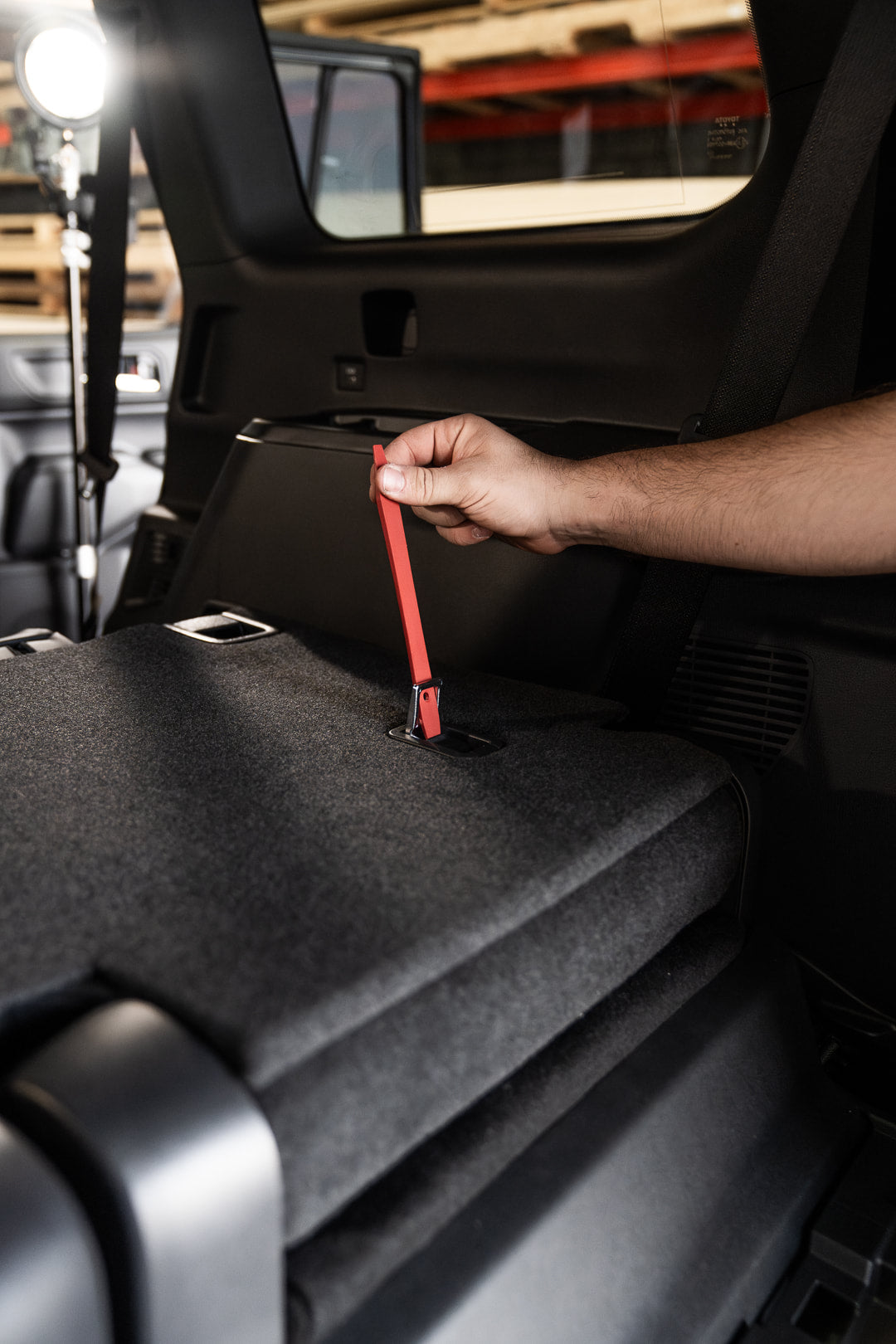

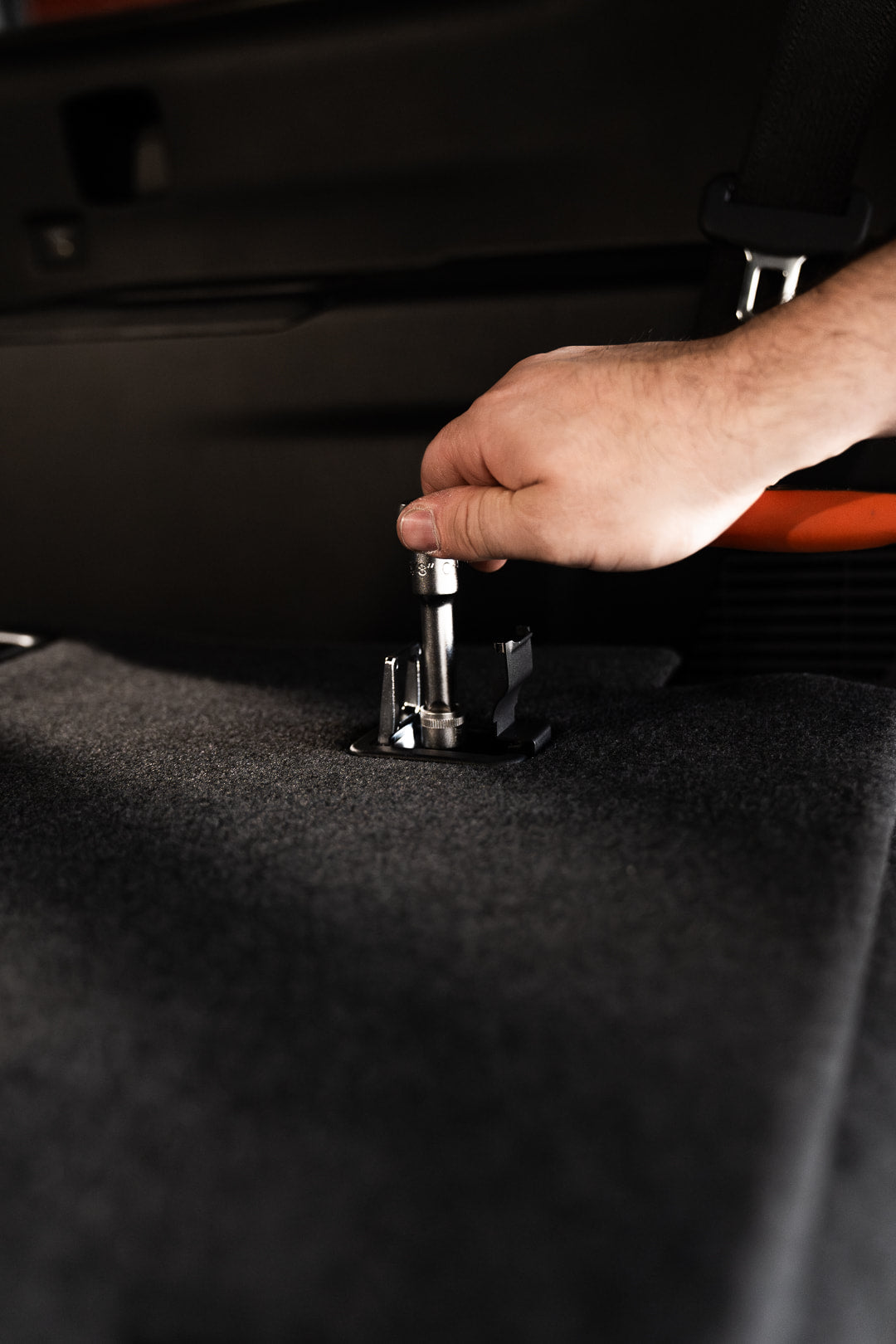

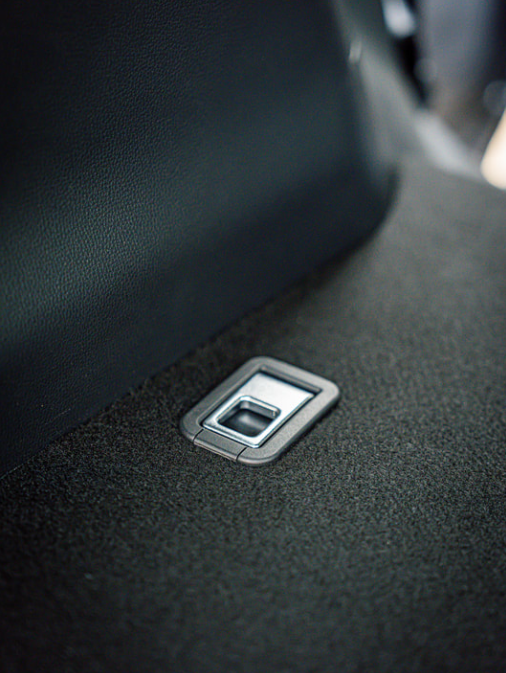

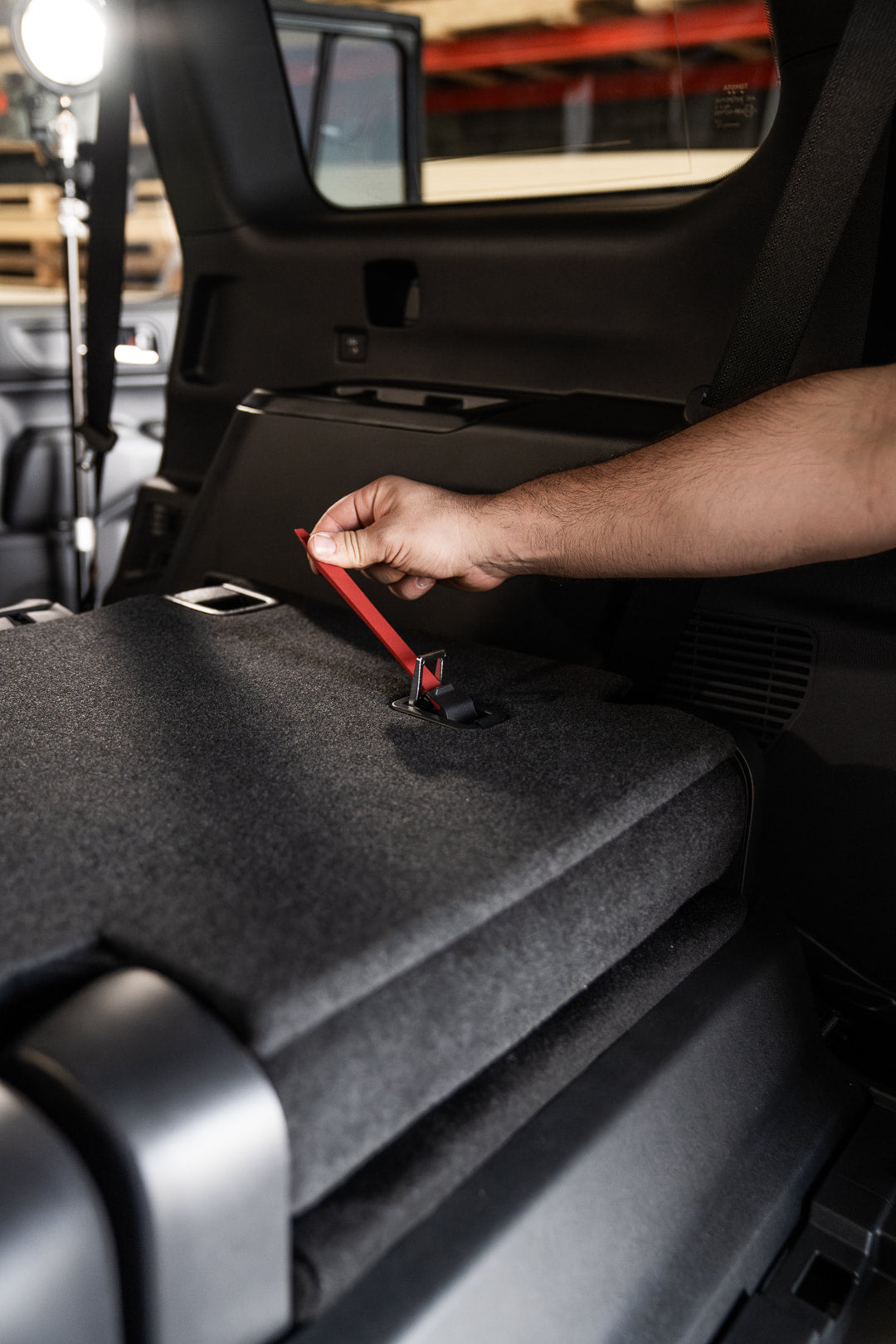

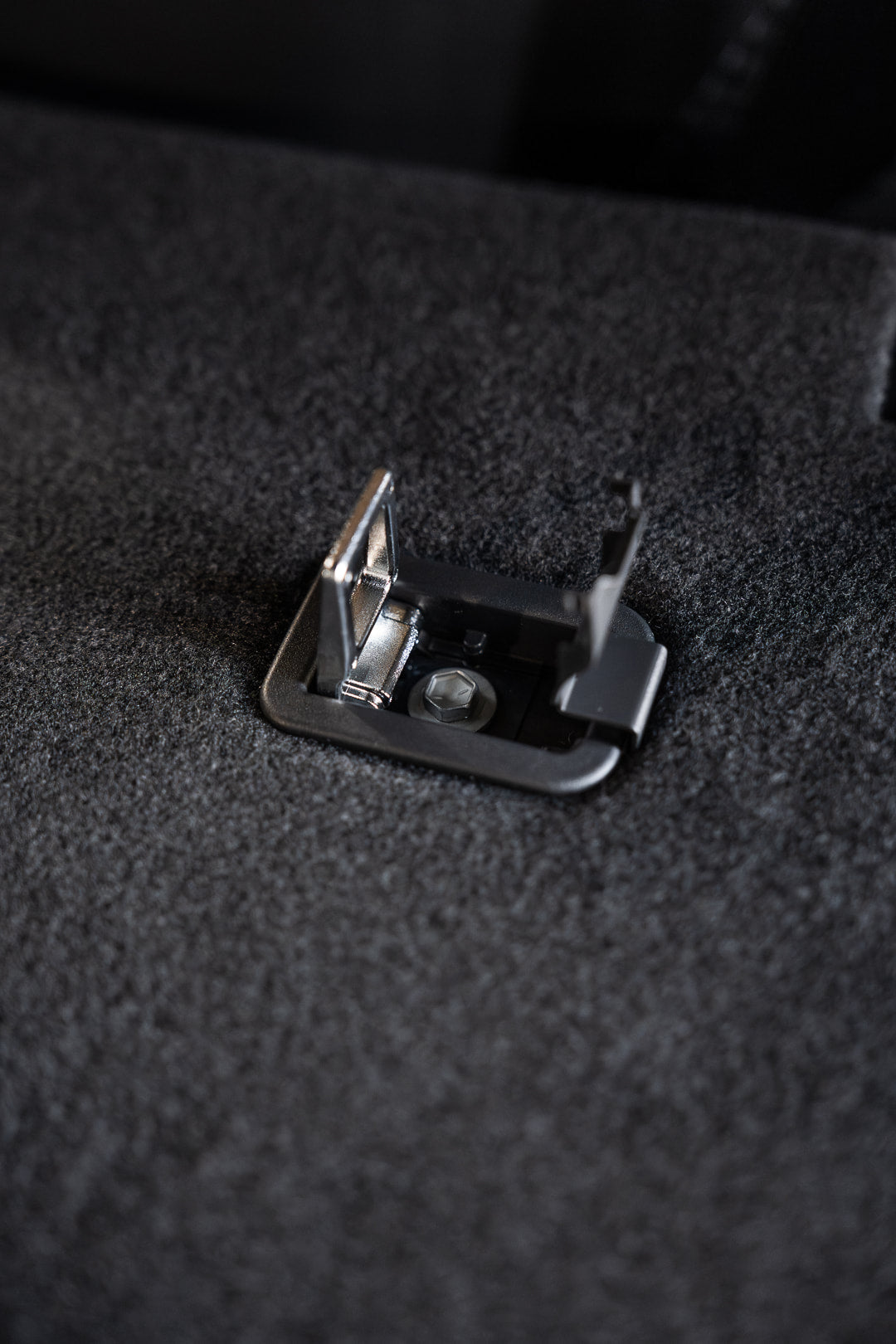

Using a trim tool, lift the silver tie-down point upright, then pry off the black bolt cover to expose the mounting bolt for the tie-down.

Remove both factory tie-downs and set them aside for reinstallation on the new platform.

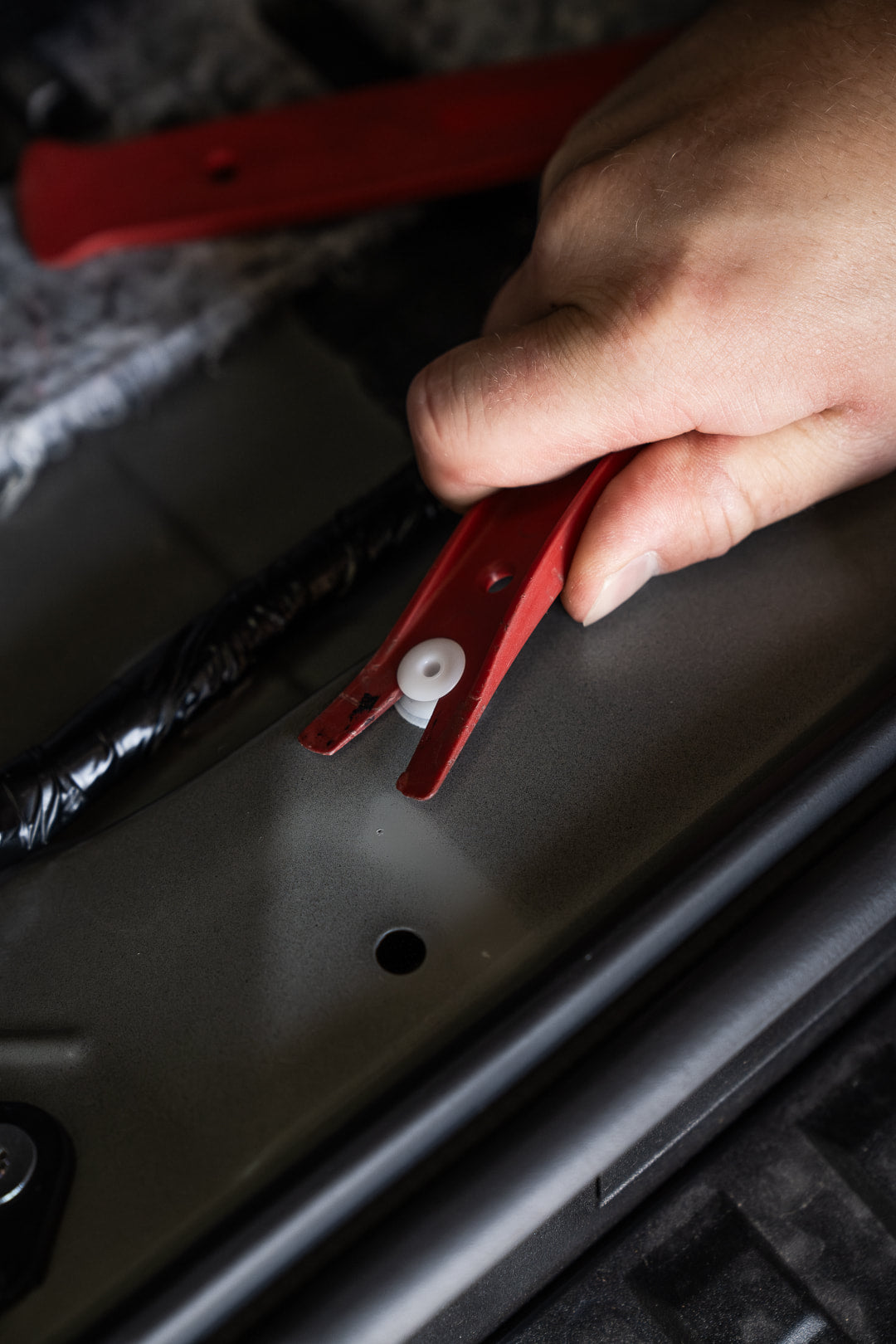

Once removed, the trim clip may stay seated , use trim tool to remove

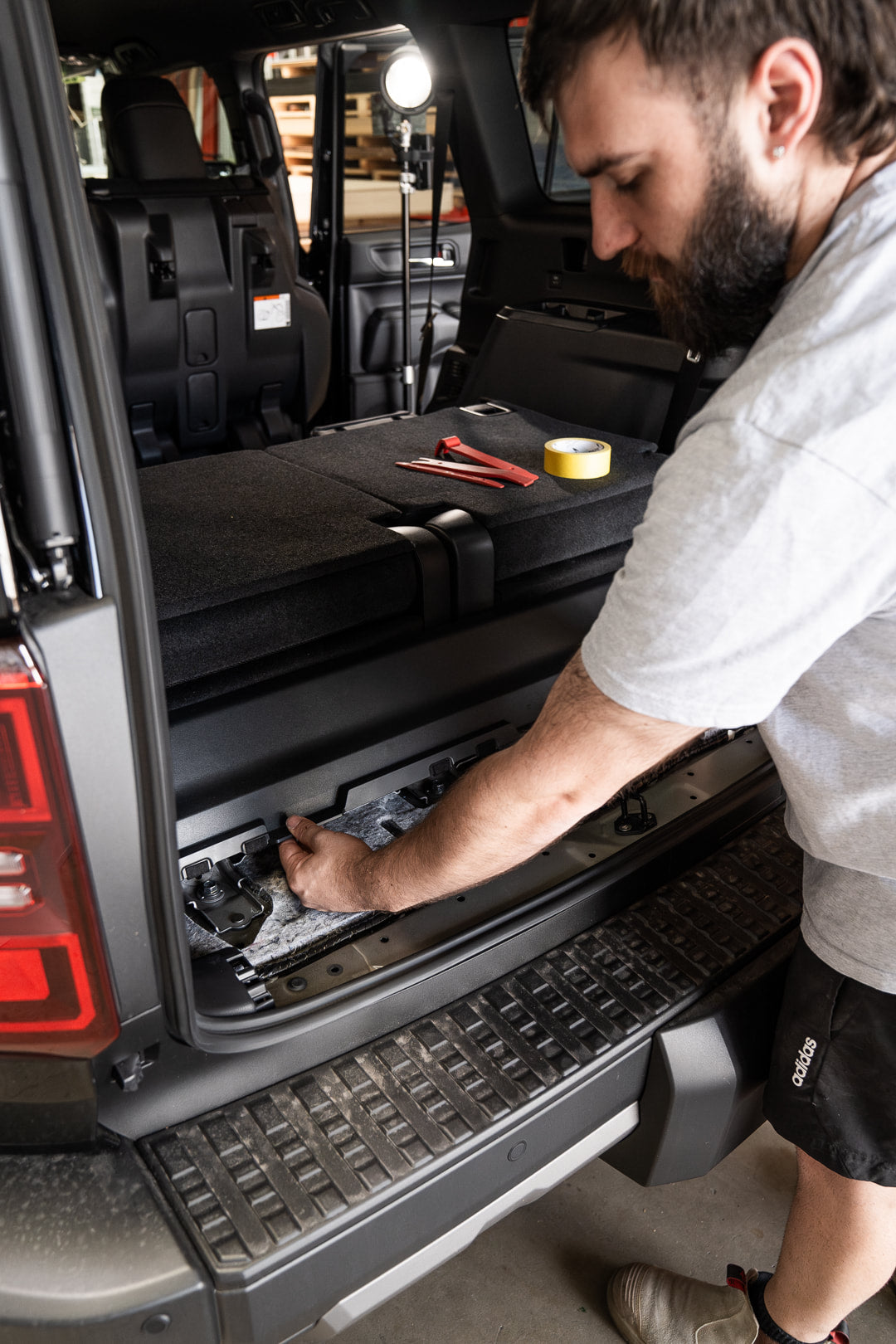

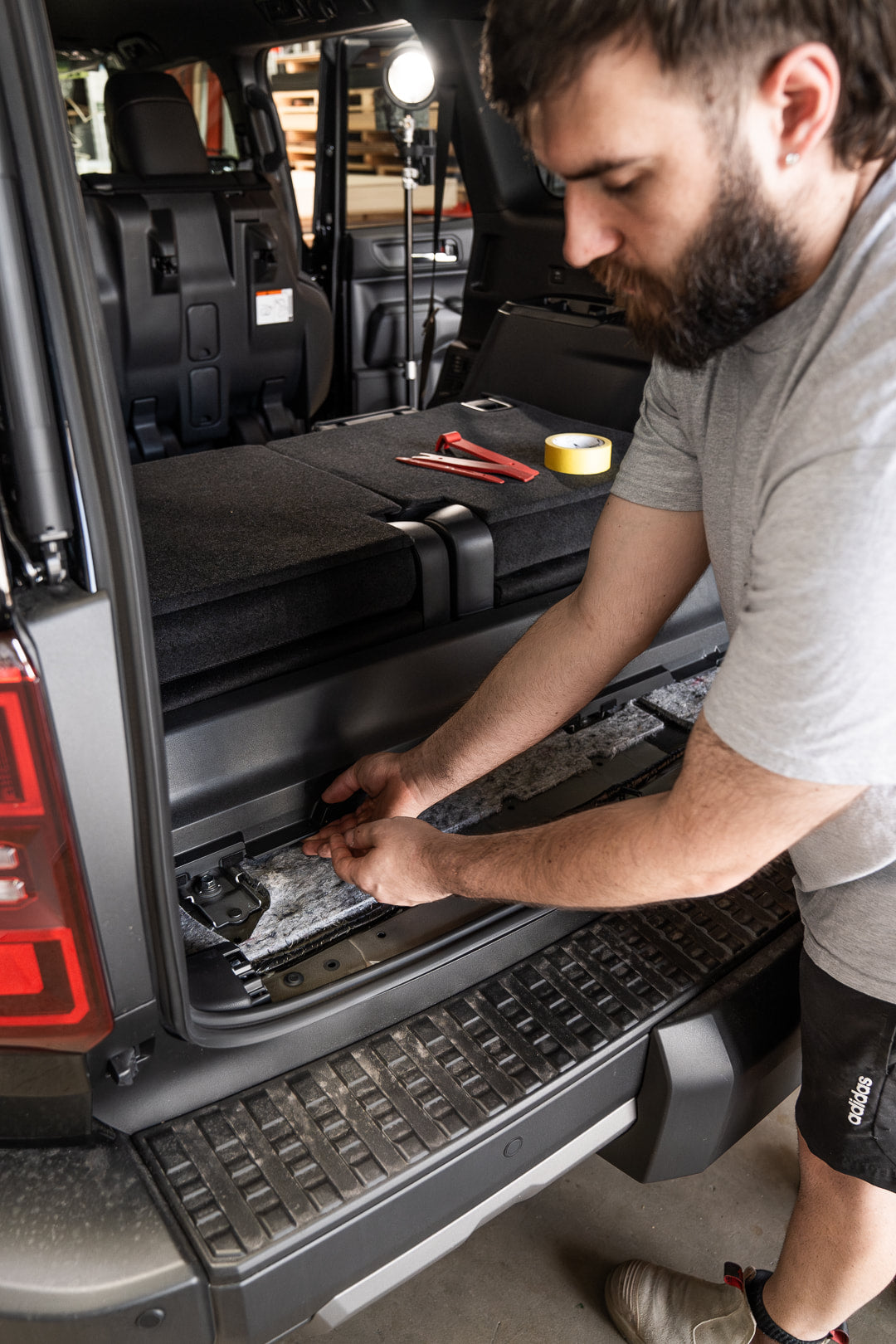

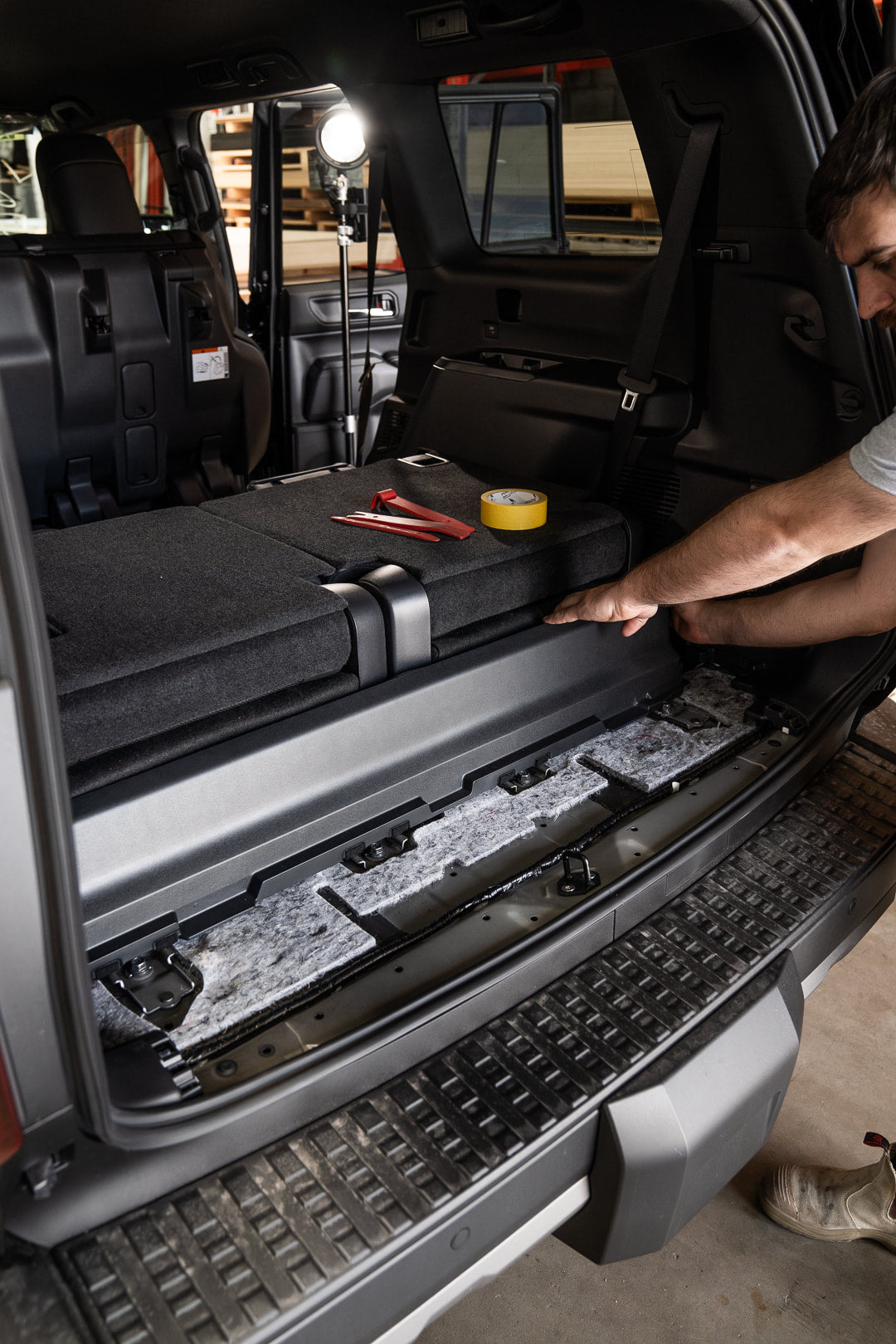

Remove rear trim panel to expose factory mounting bolts

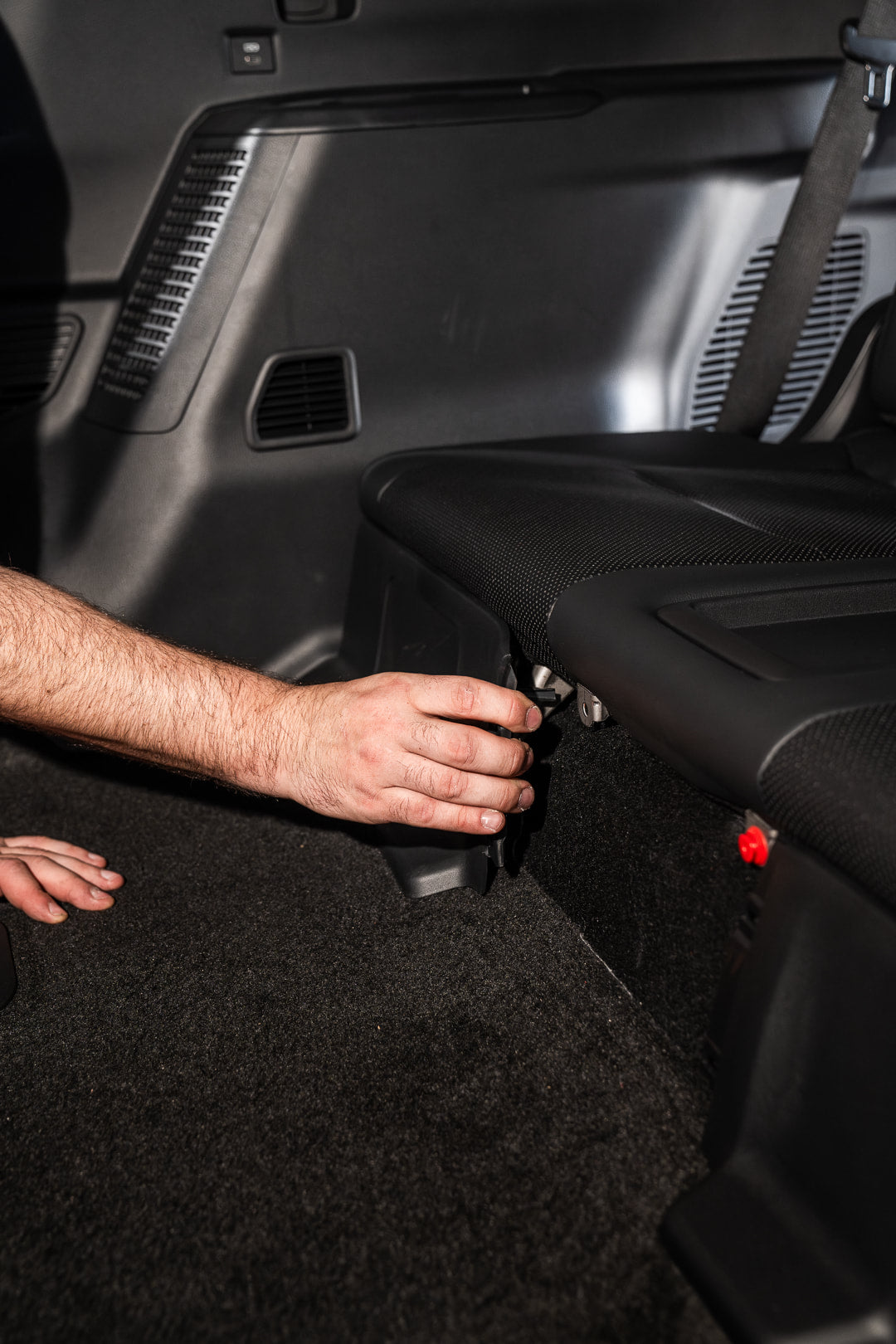

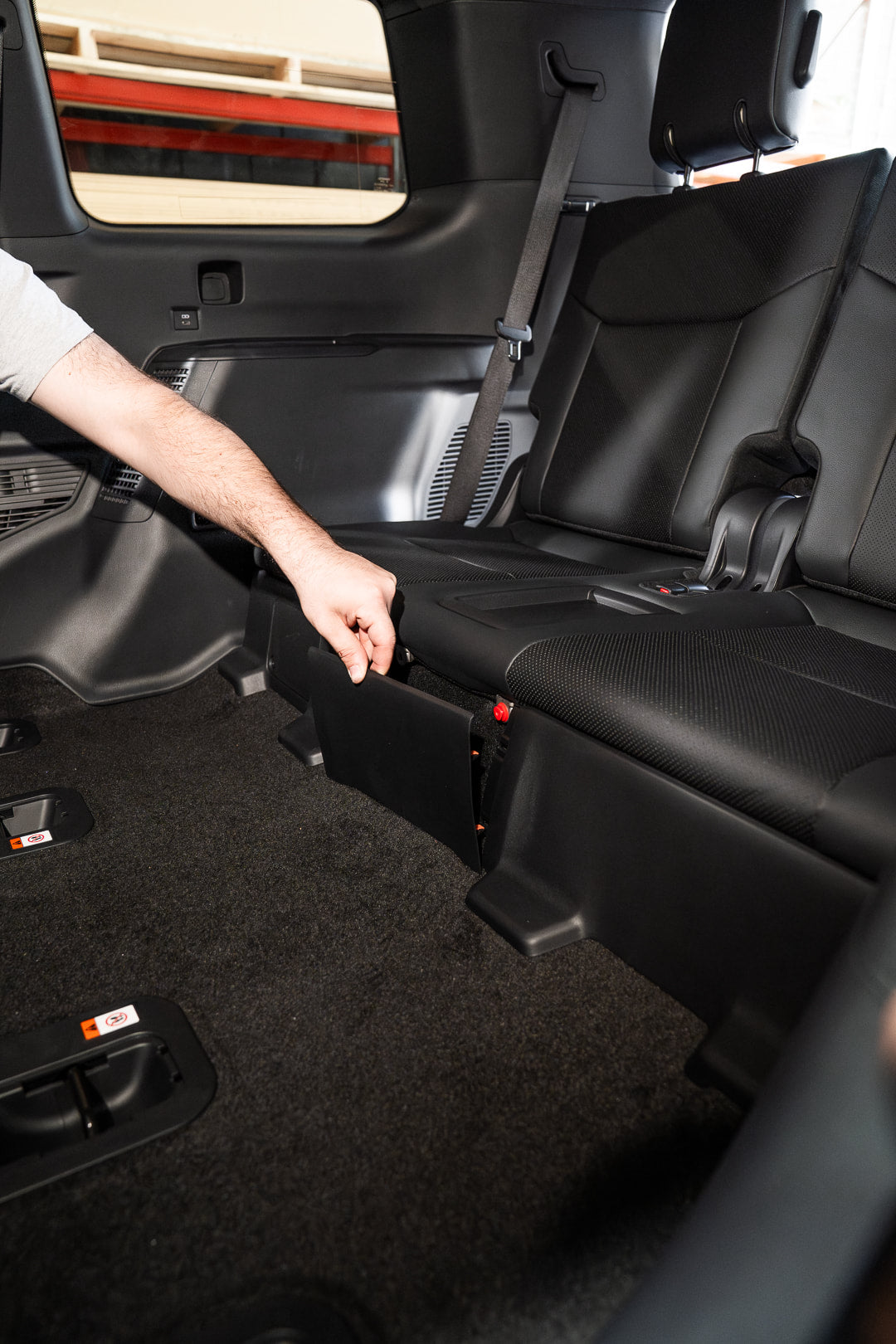

Inside the vehicle, remove the front trim panels of the third-row seats to expose the mounting bolts.

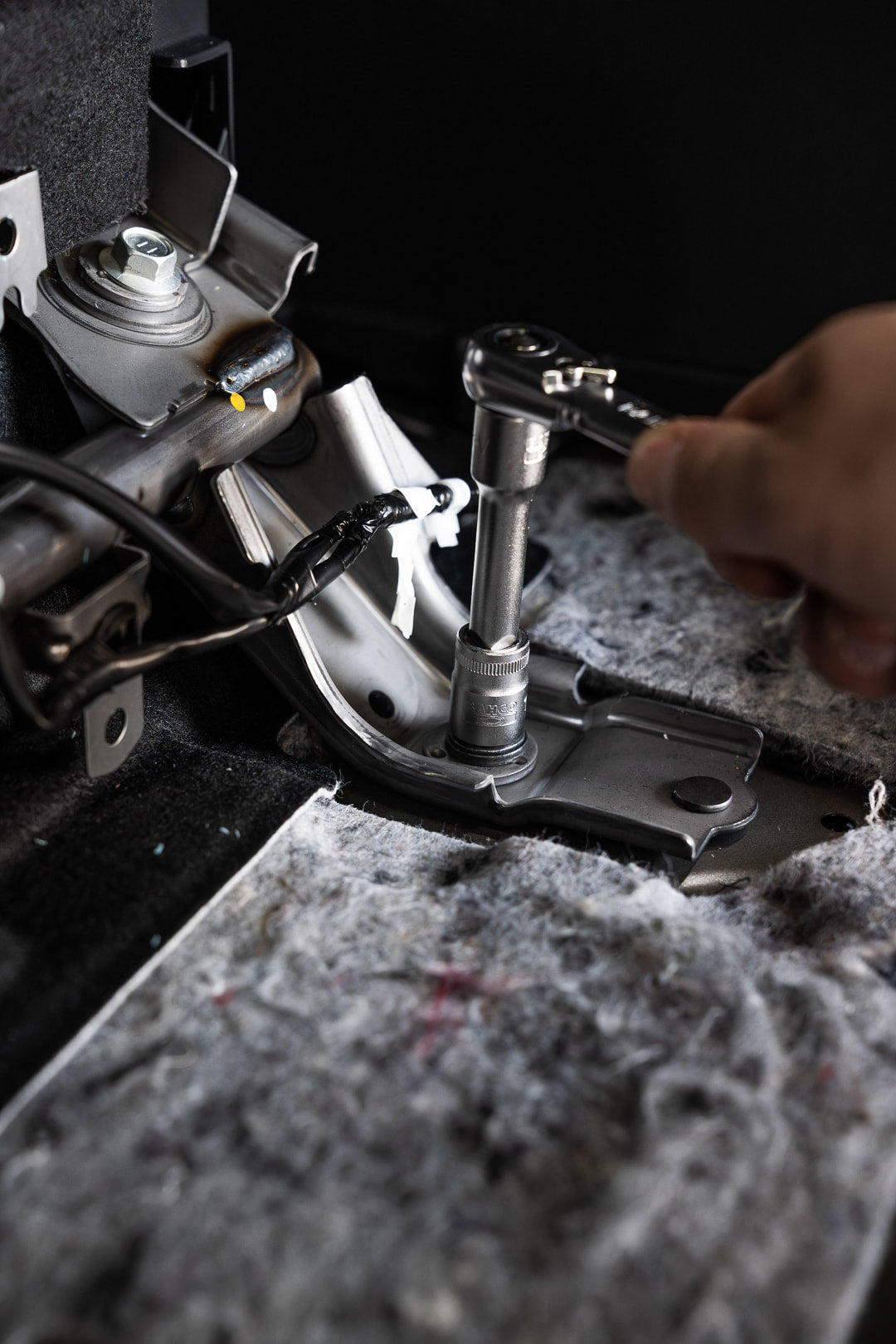

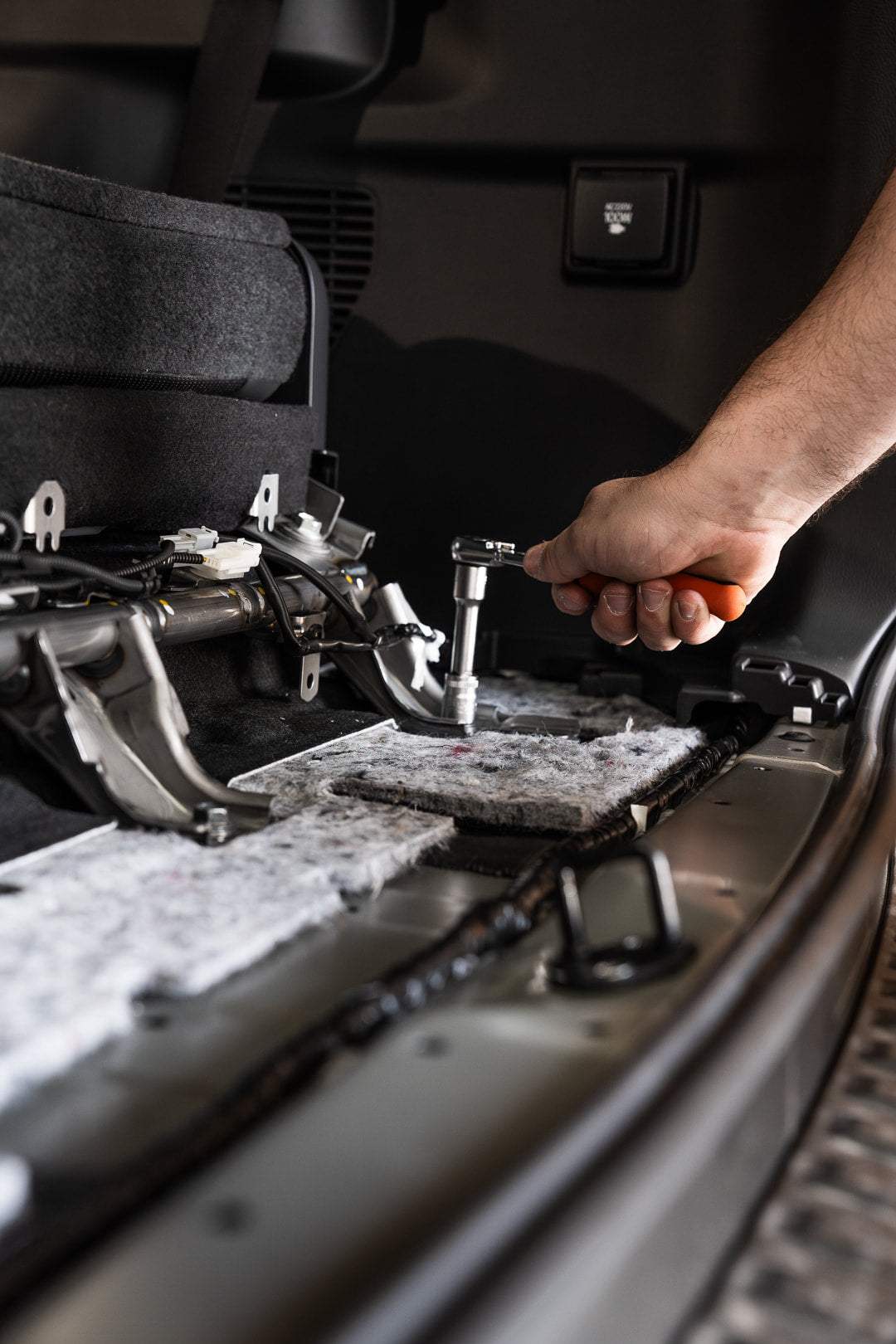

Using a 14mm Socket to remove all 8 bolts that secure the seat to the vehicle.

Keep factory bolts aside as you will need these to install the sub frame to the vehicle.

Remove clips on the wiring harness.

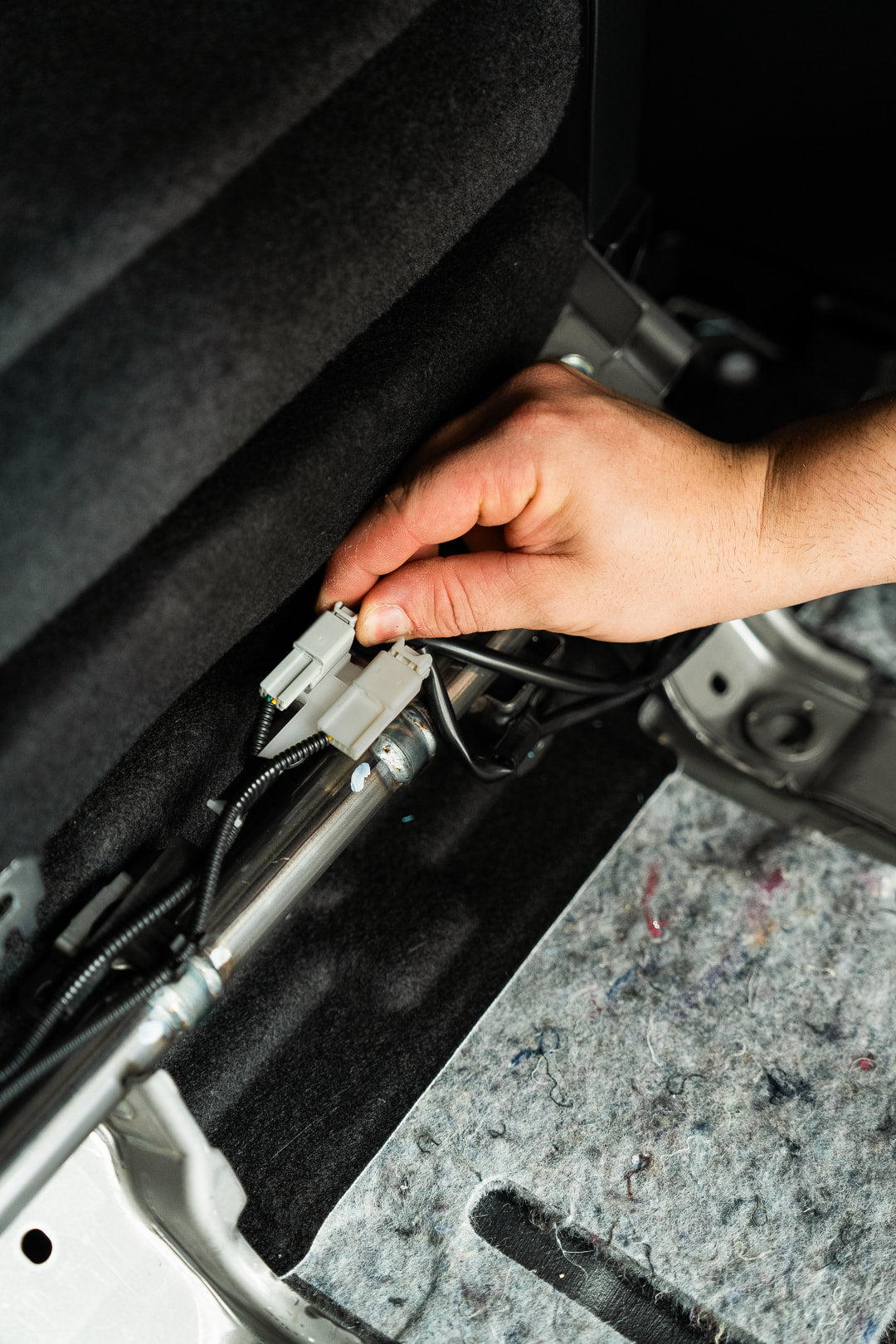

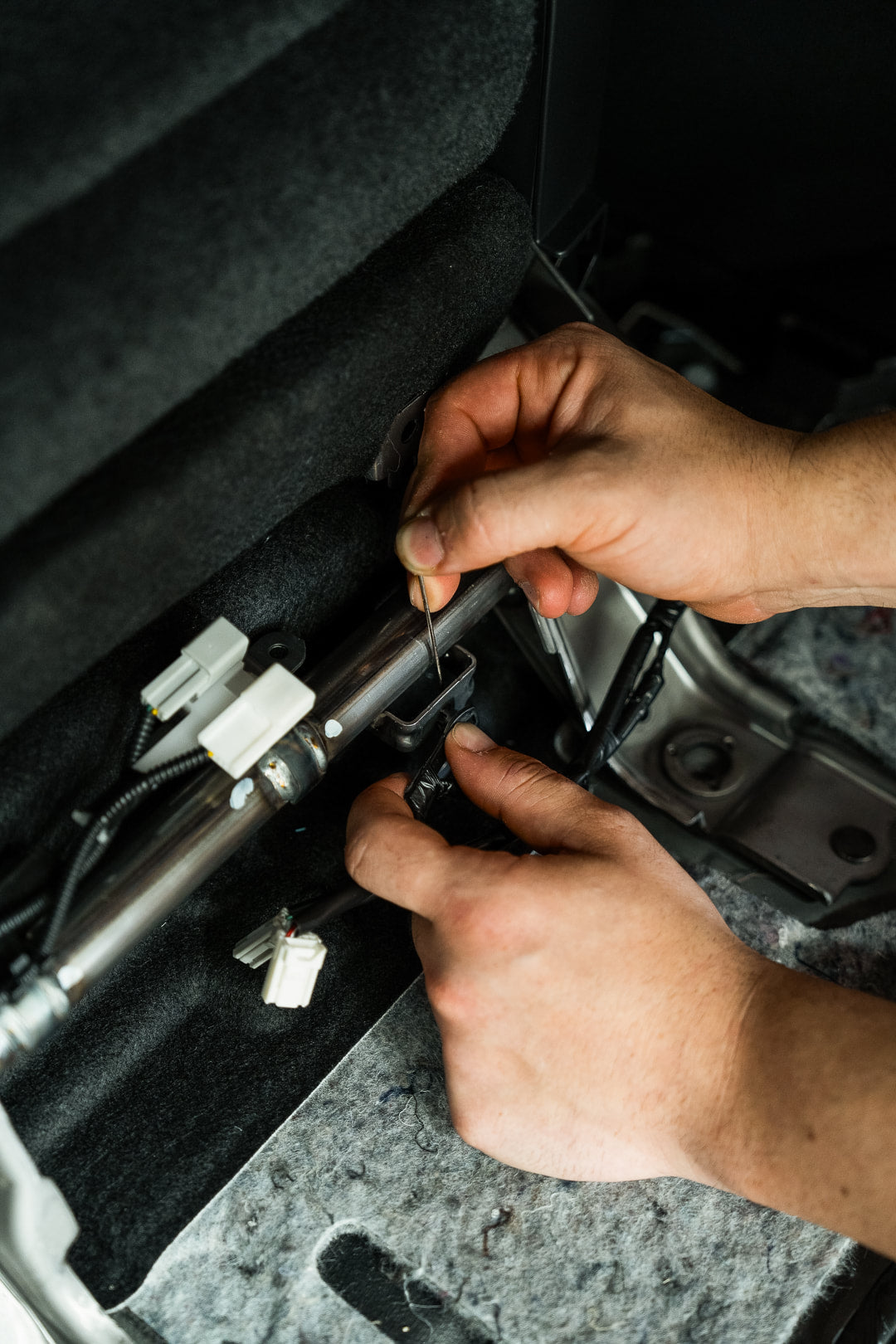

Using Needle Nose Pliers, disengage the latch on the sensor

Once these steps have been completed you should be able to remove the third row of seats.

Remove the third row of seats

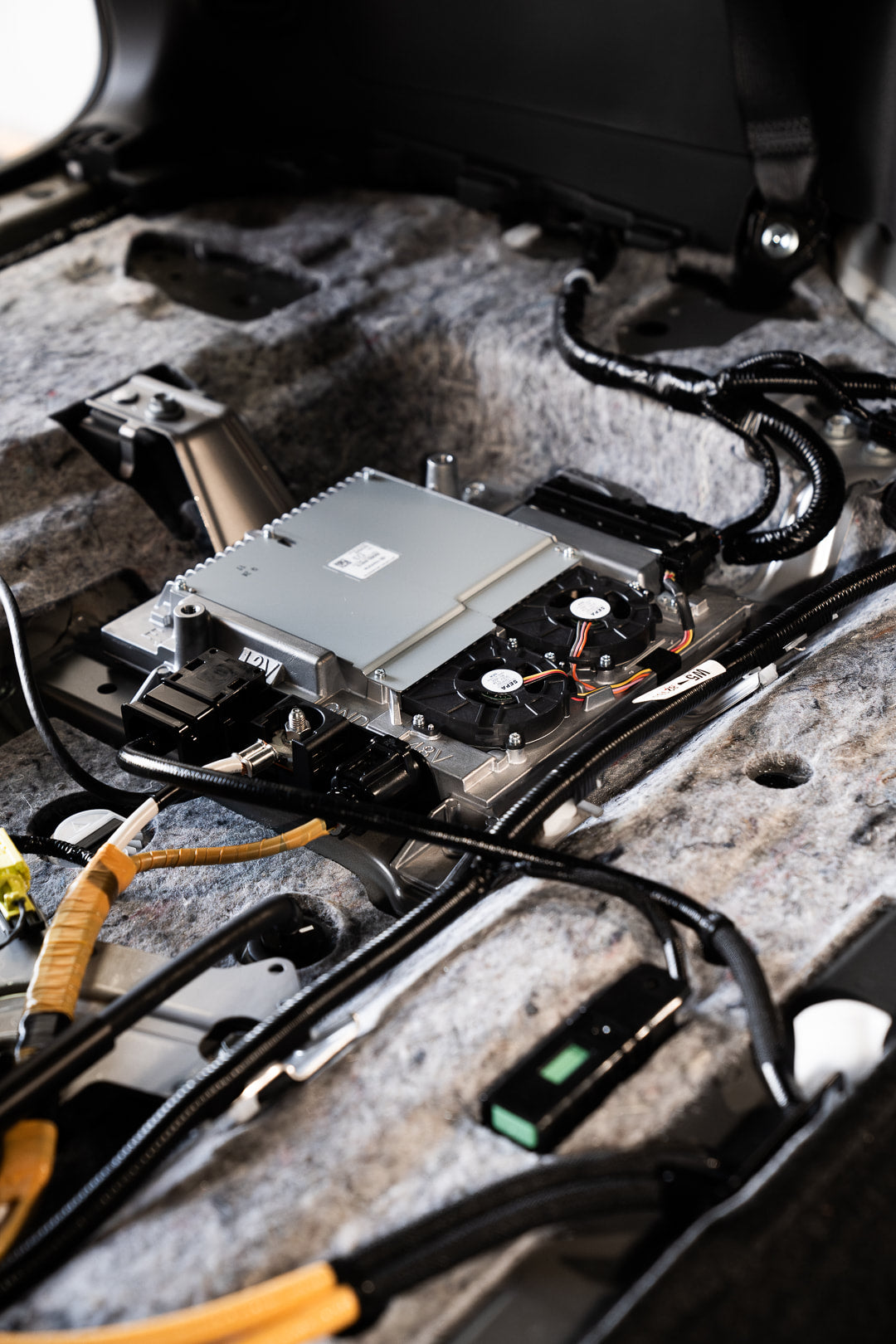

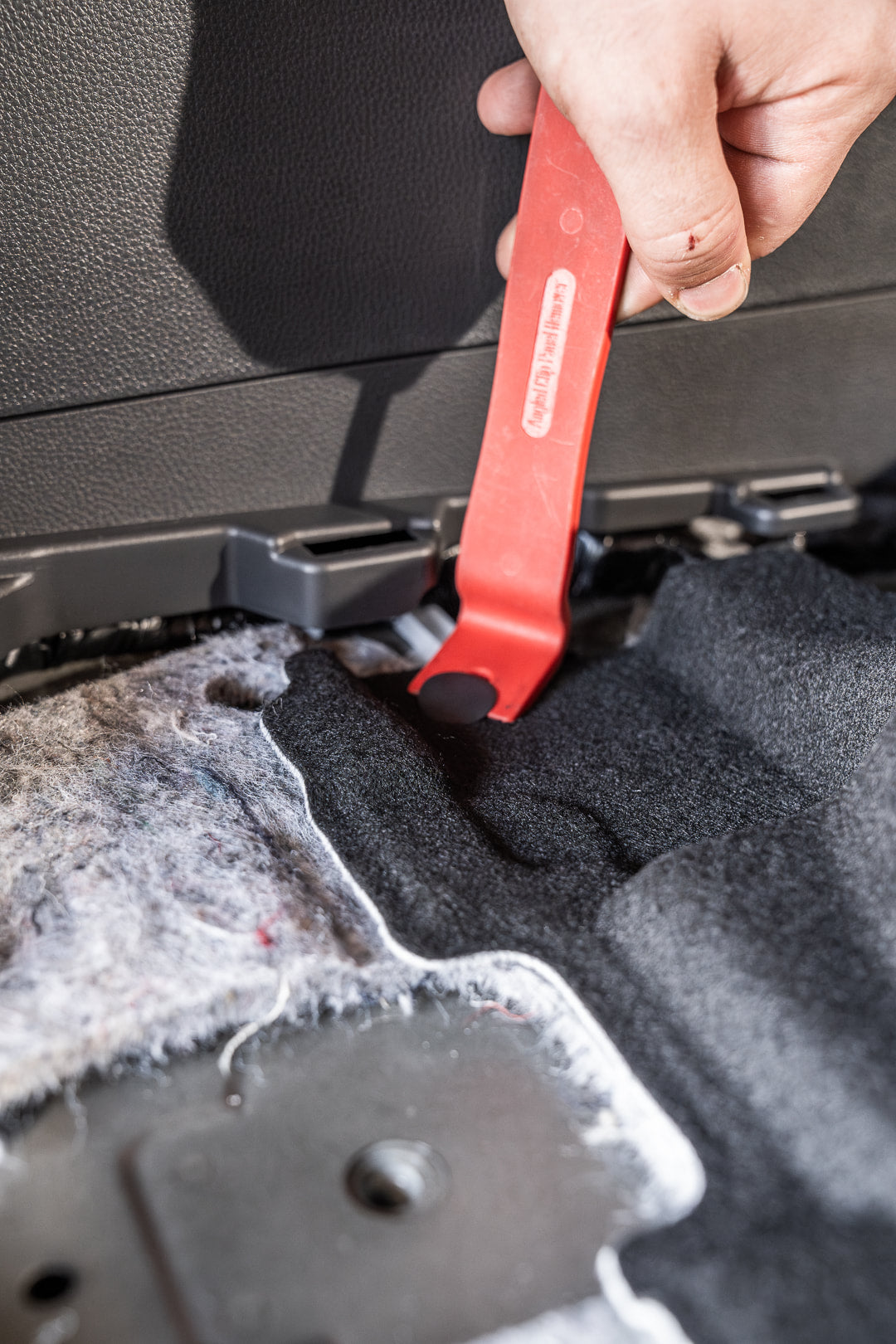

Locate the trim clips and remove the top underlay cover to uncover the battery beneath.

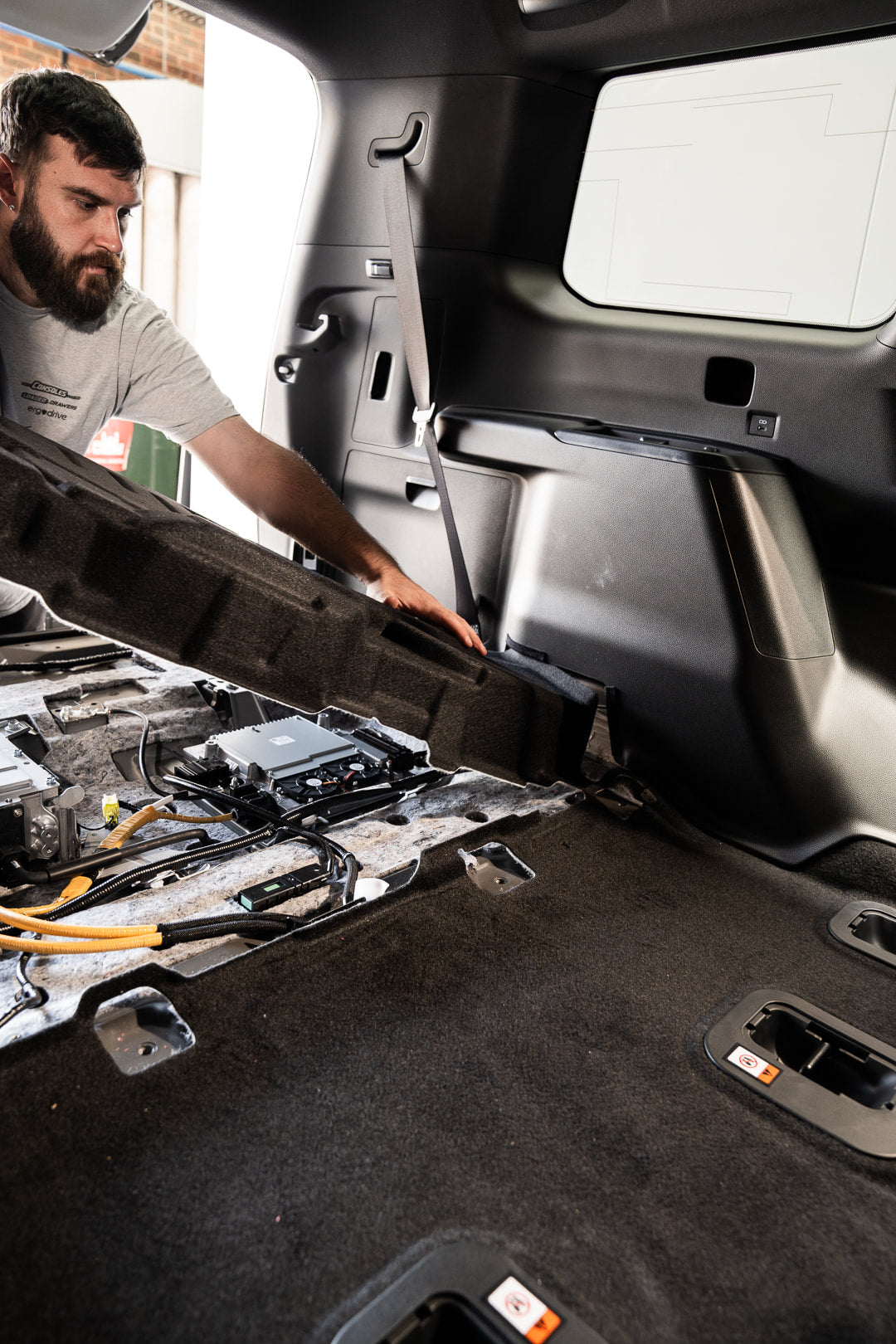

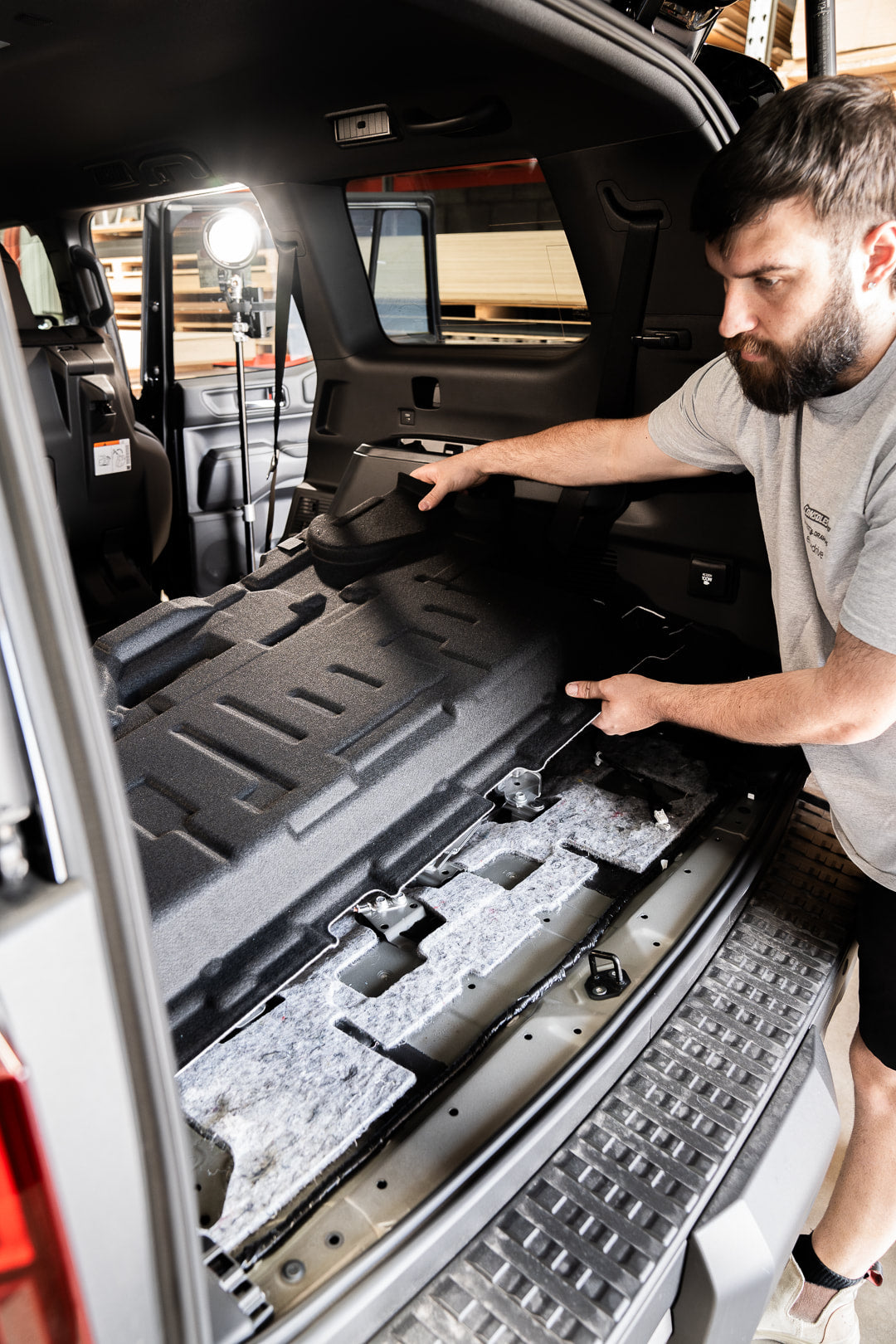

Remove the hard felt cover from the cargo area to expose the battery underneath.

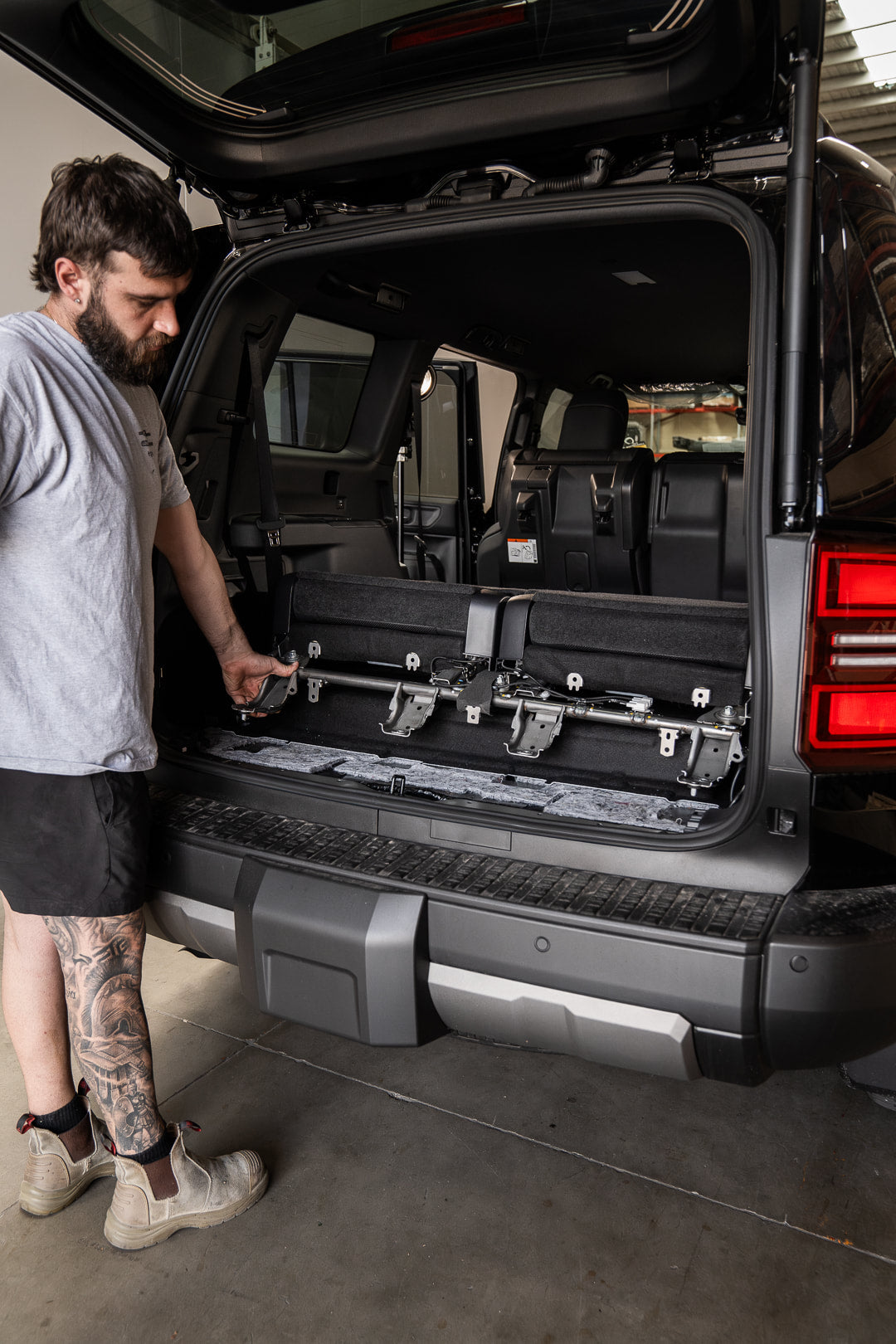

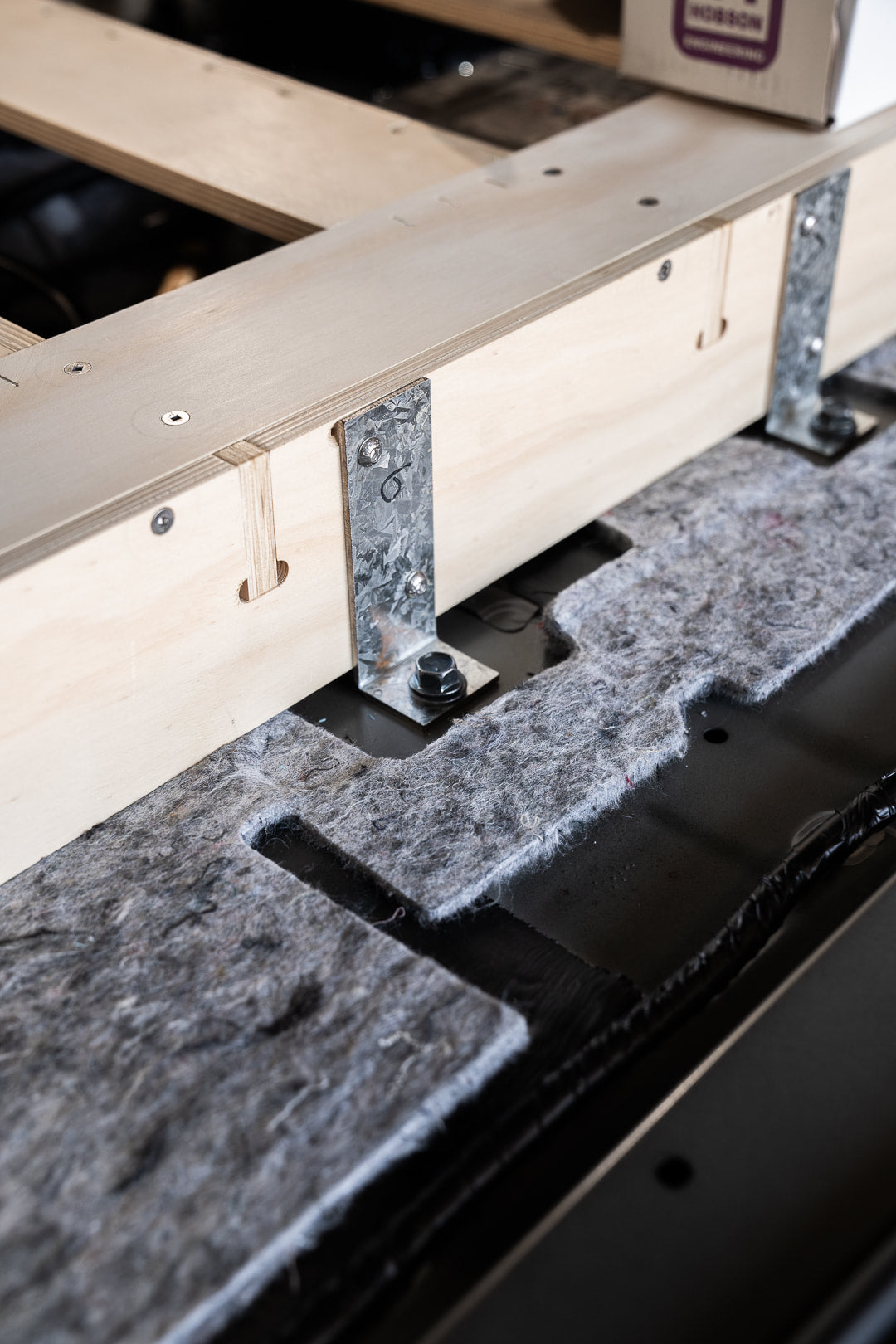

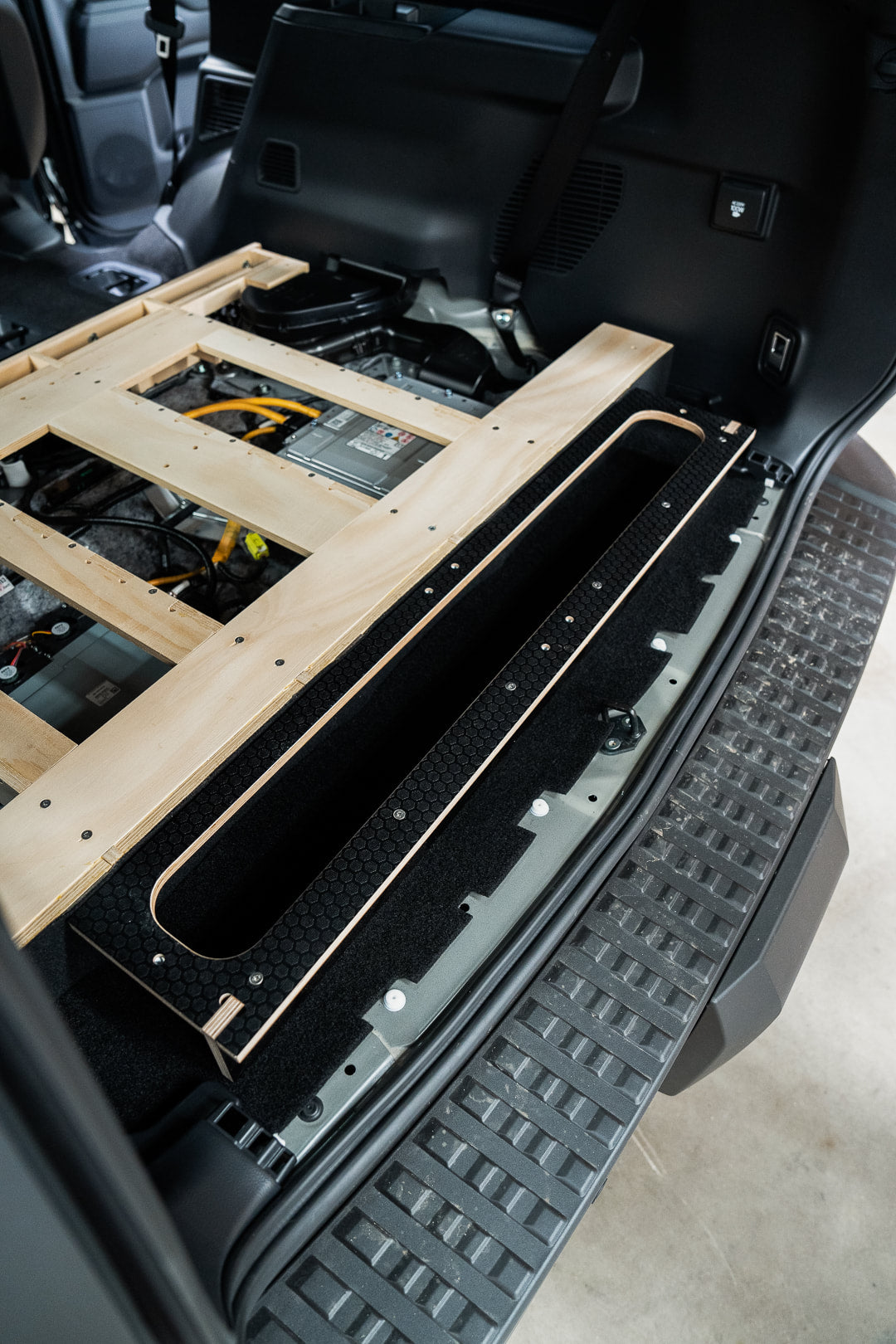

Position the subframe into the vehicle and align the brackets with the factory mounting holes.

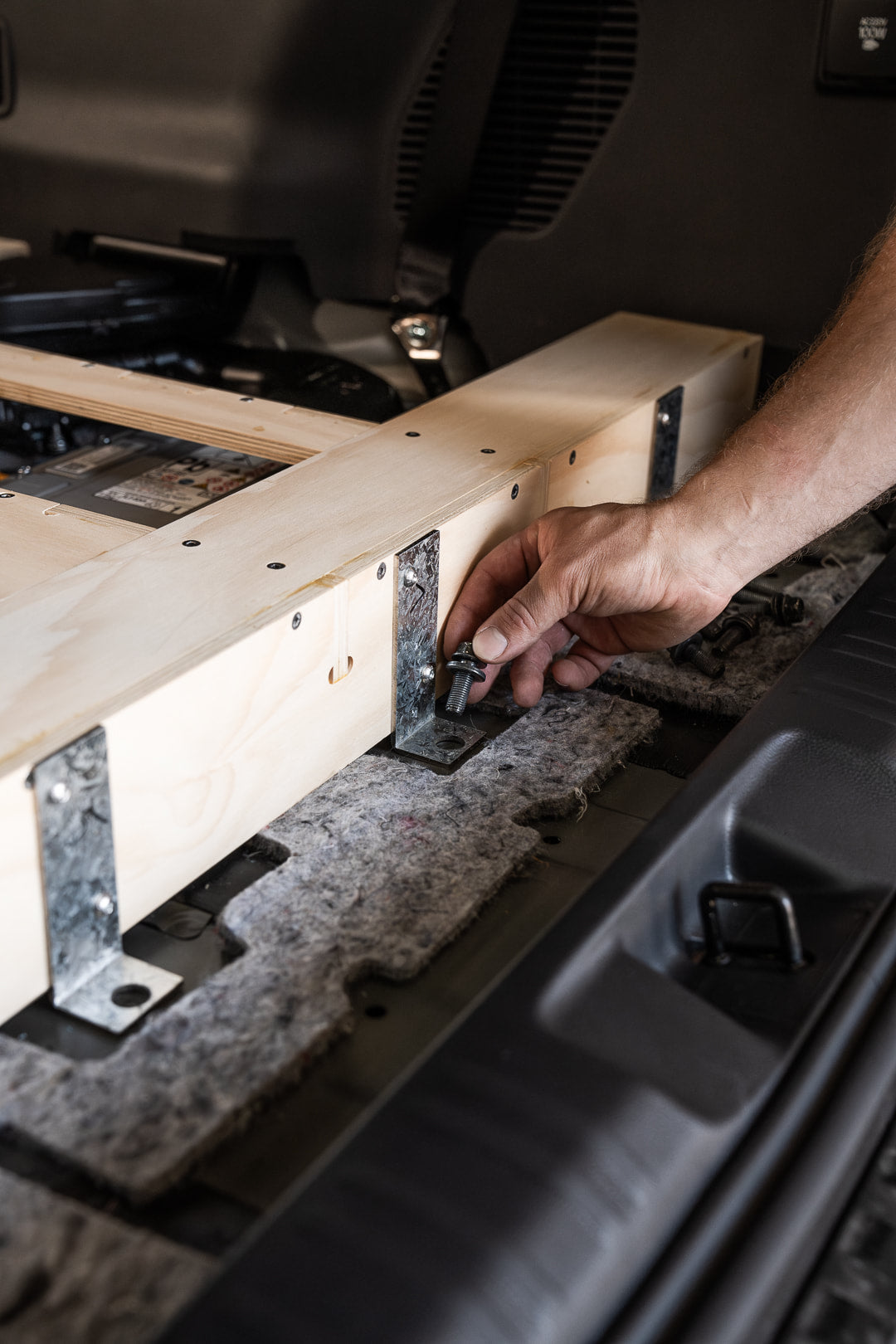

Hand tighten all bolts leaving some play in the frame. These will be tightened once platform is in vehicle.

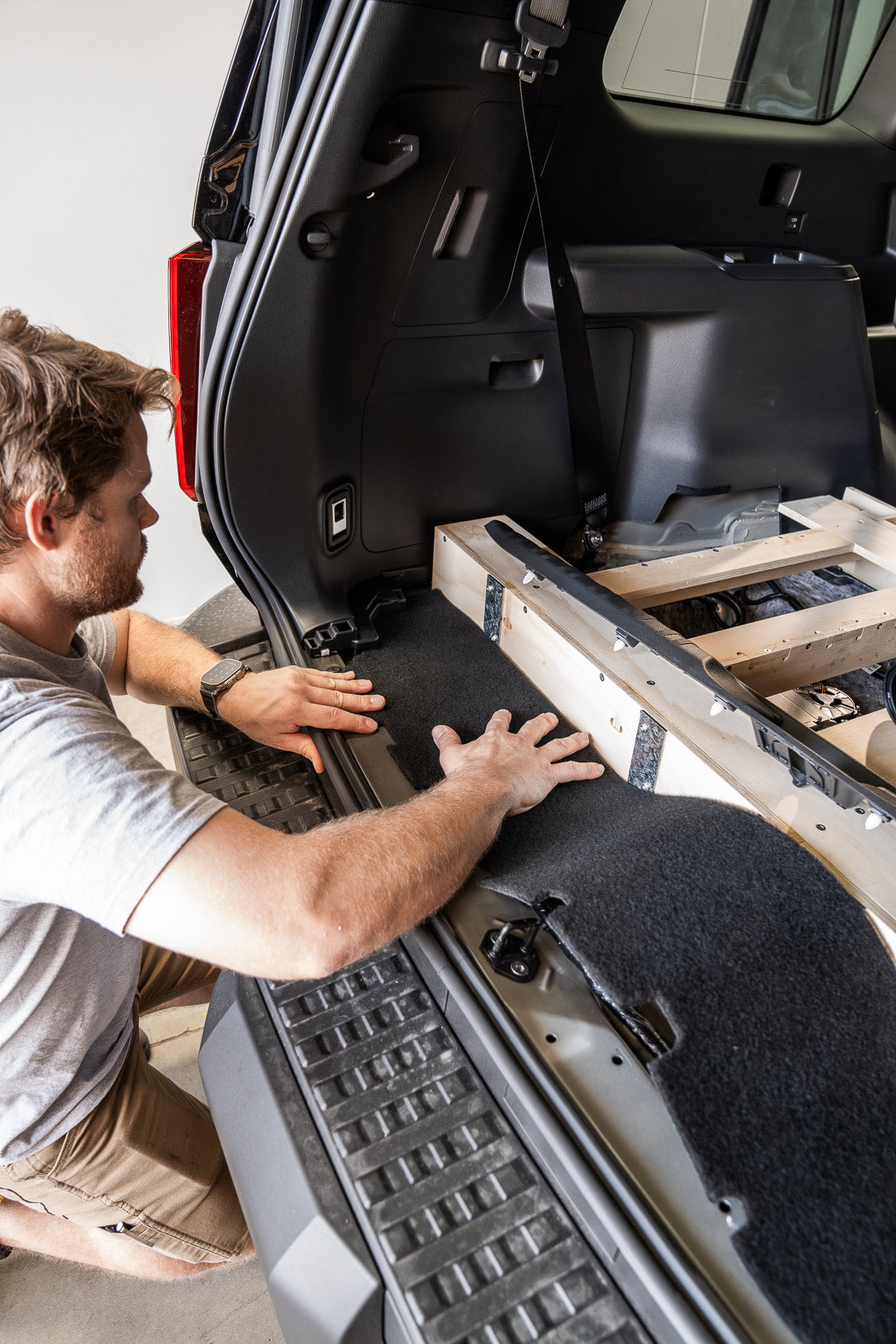

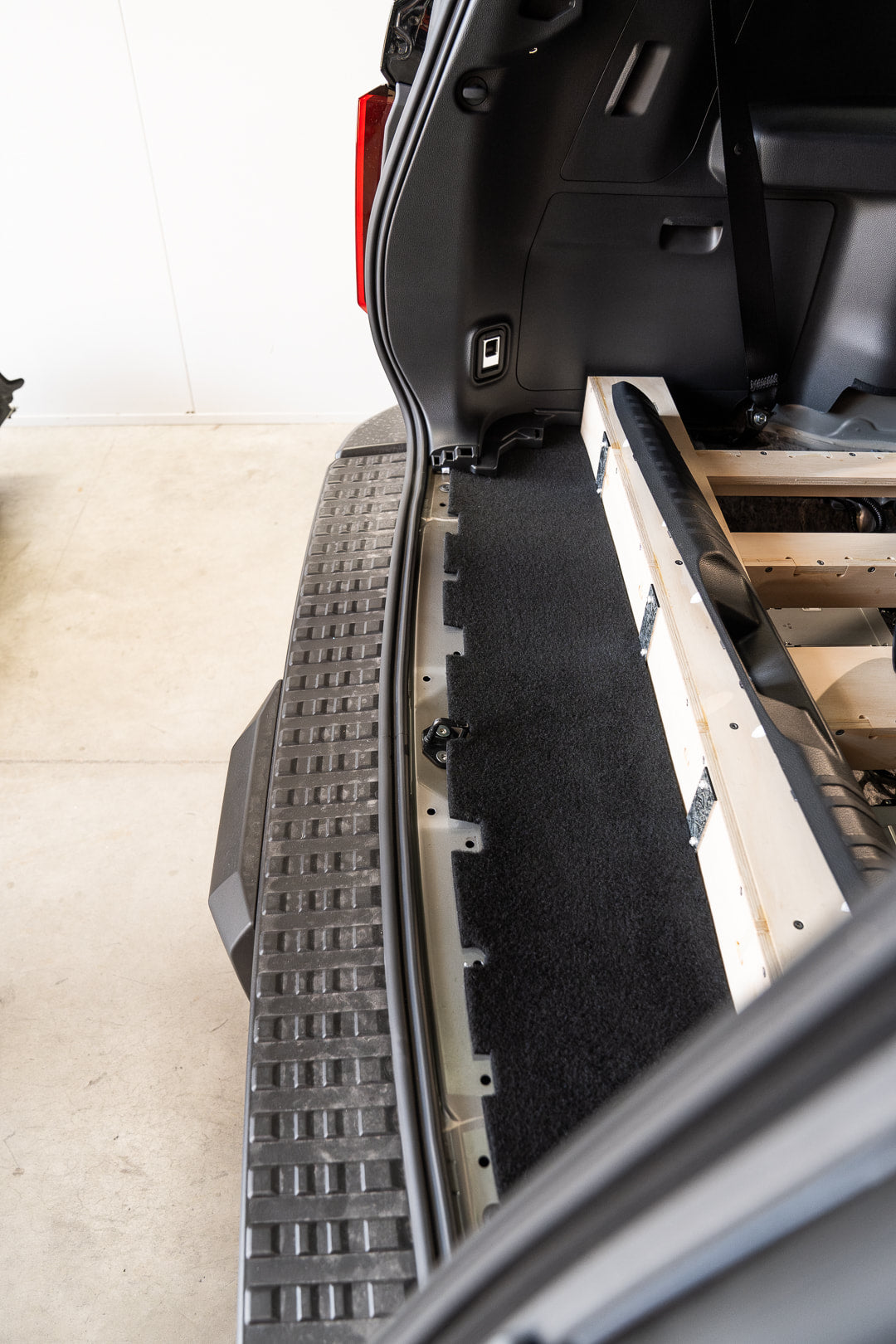

Once secured, use the carpet insert provided to cover the area between the boot latch and subframe.

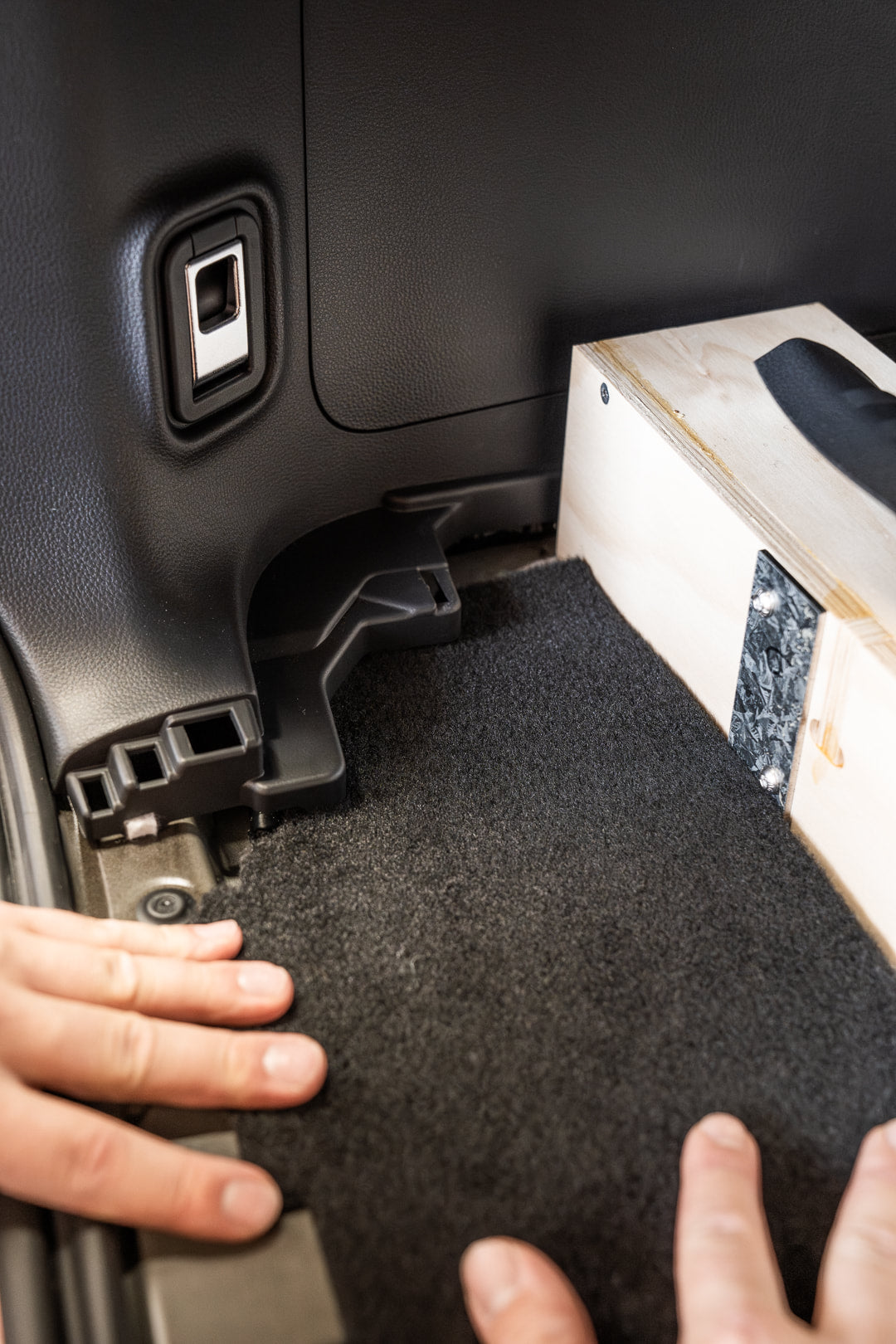

Tuck the carpet under the rear side panel to secure

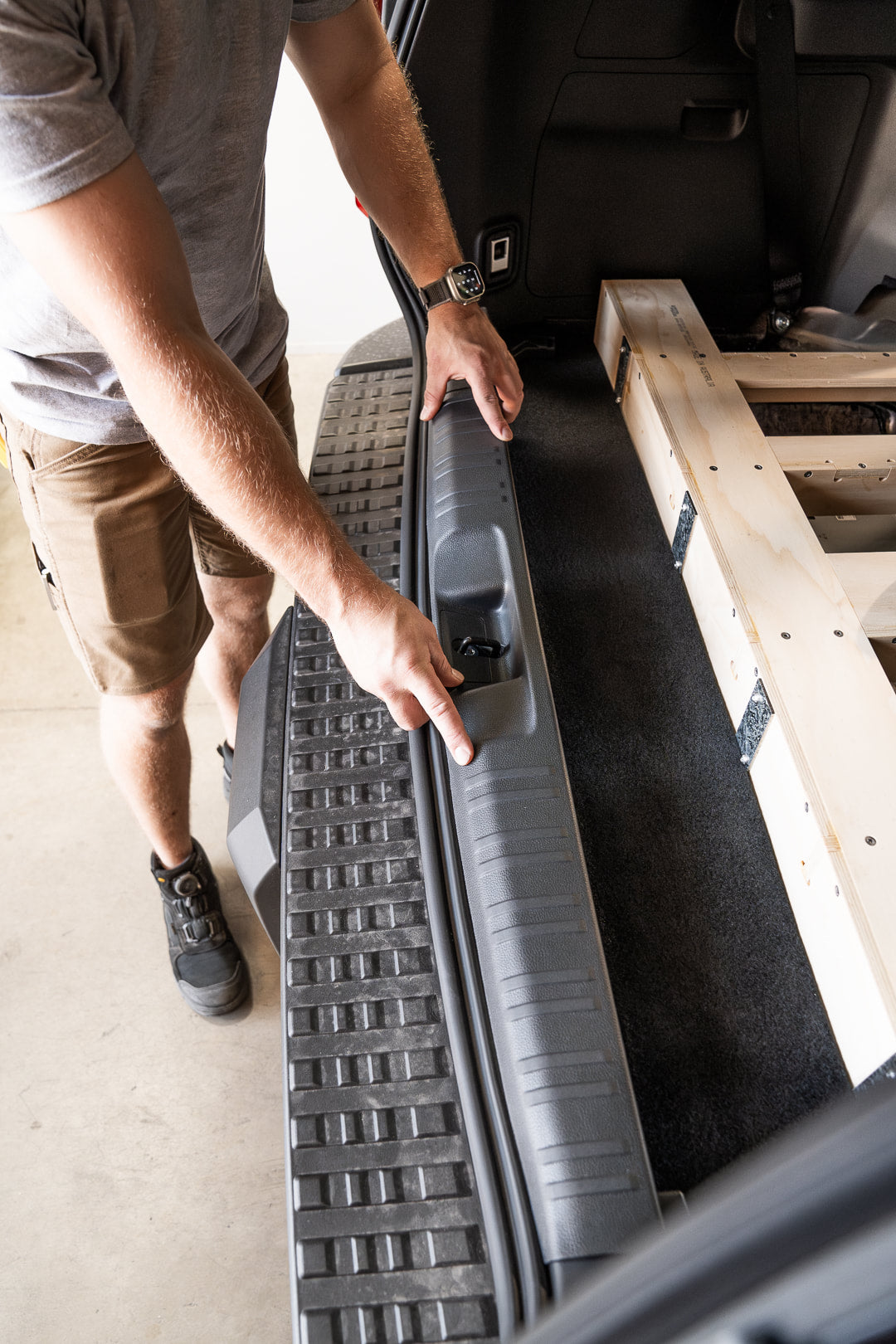

Once covered, reattach the factory boot lip trim to the vehicle to secure the carpet in place.

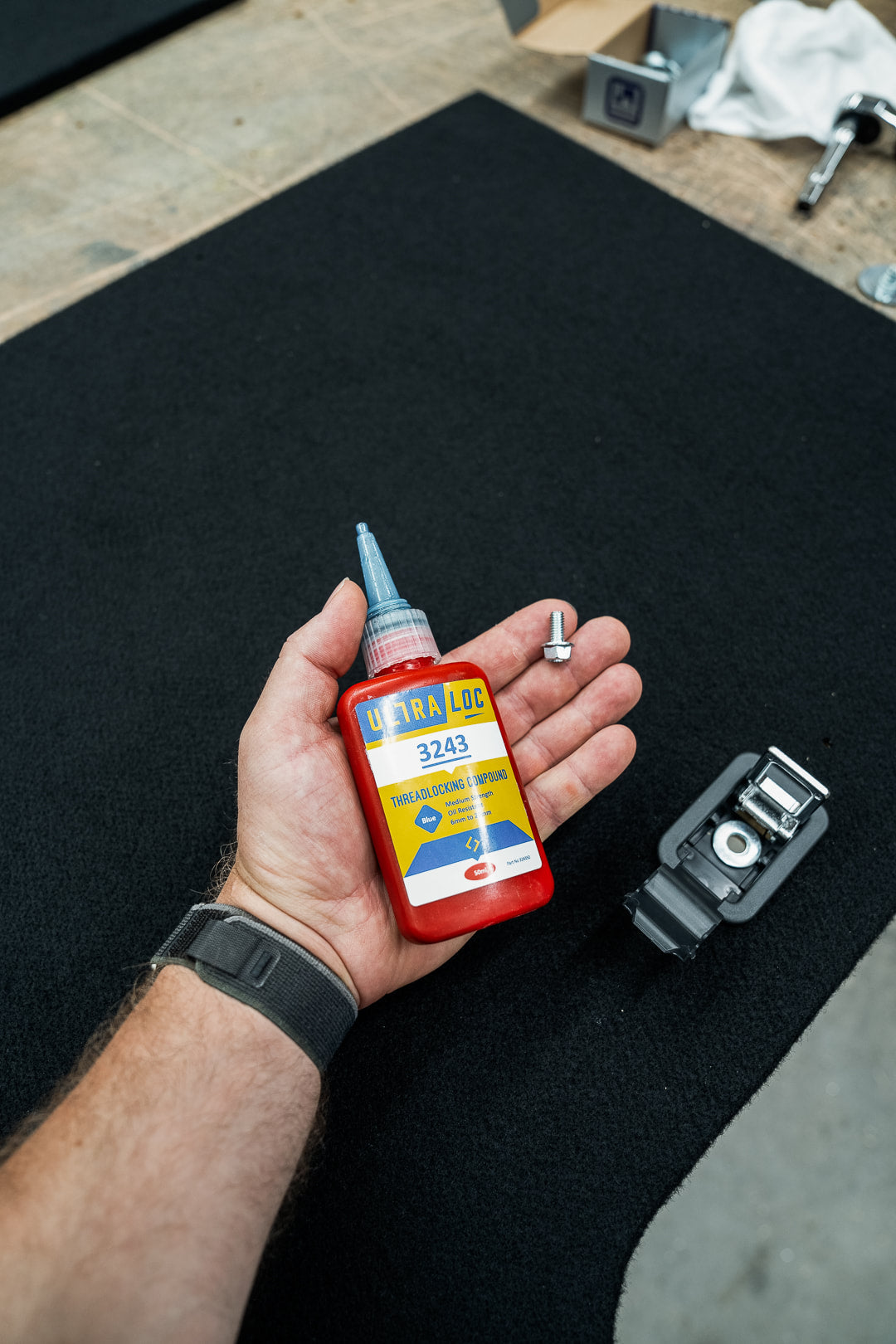

Using the Loctite provided, apply a small amount to the drivers side only bolt for the tie-down mount.

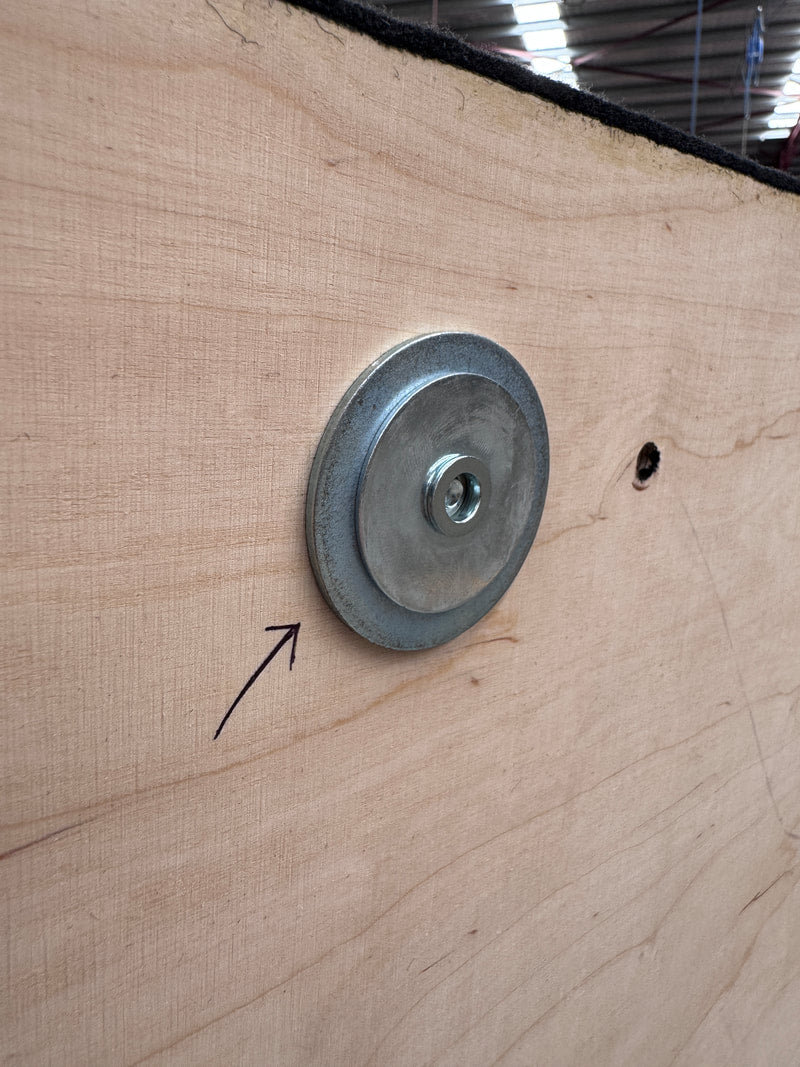

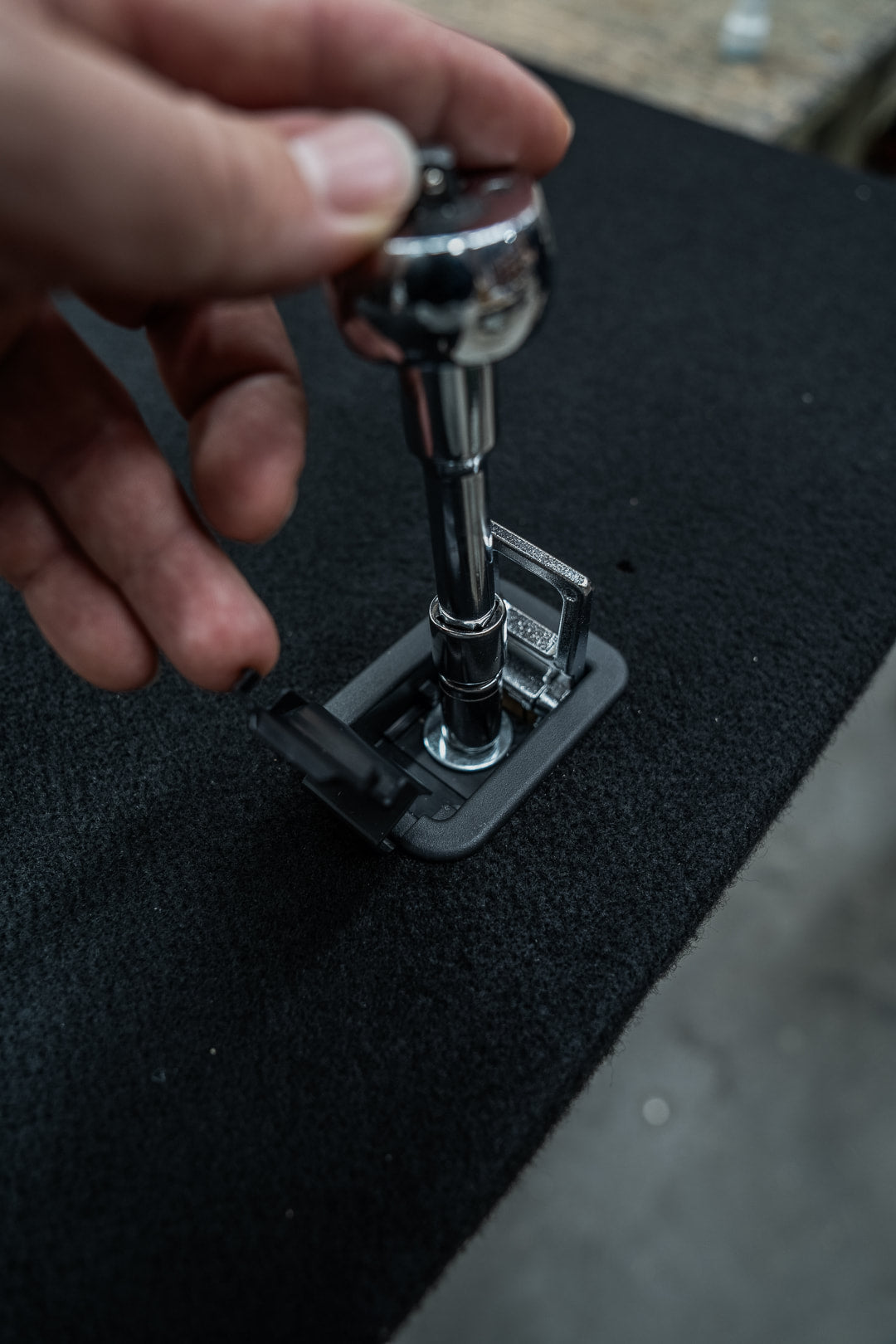

Before fitting the platform, secure the tie-down mount to the platform panels by placing the bolt and washer on the top side, with the threaded washer underneath as shown in the picture.

Now, place the hatch subframe into the space between the platform subframe and the boot latch.

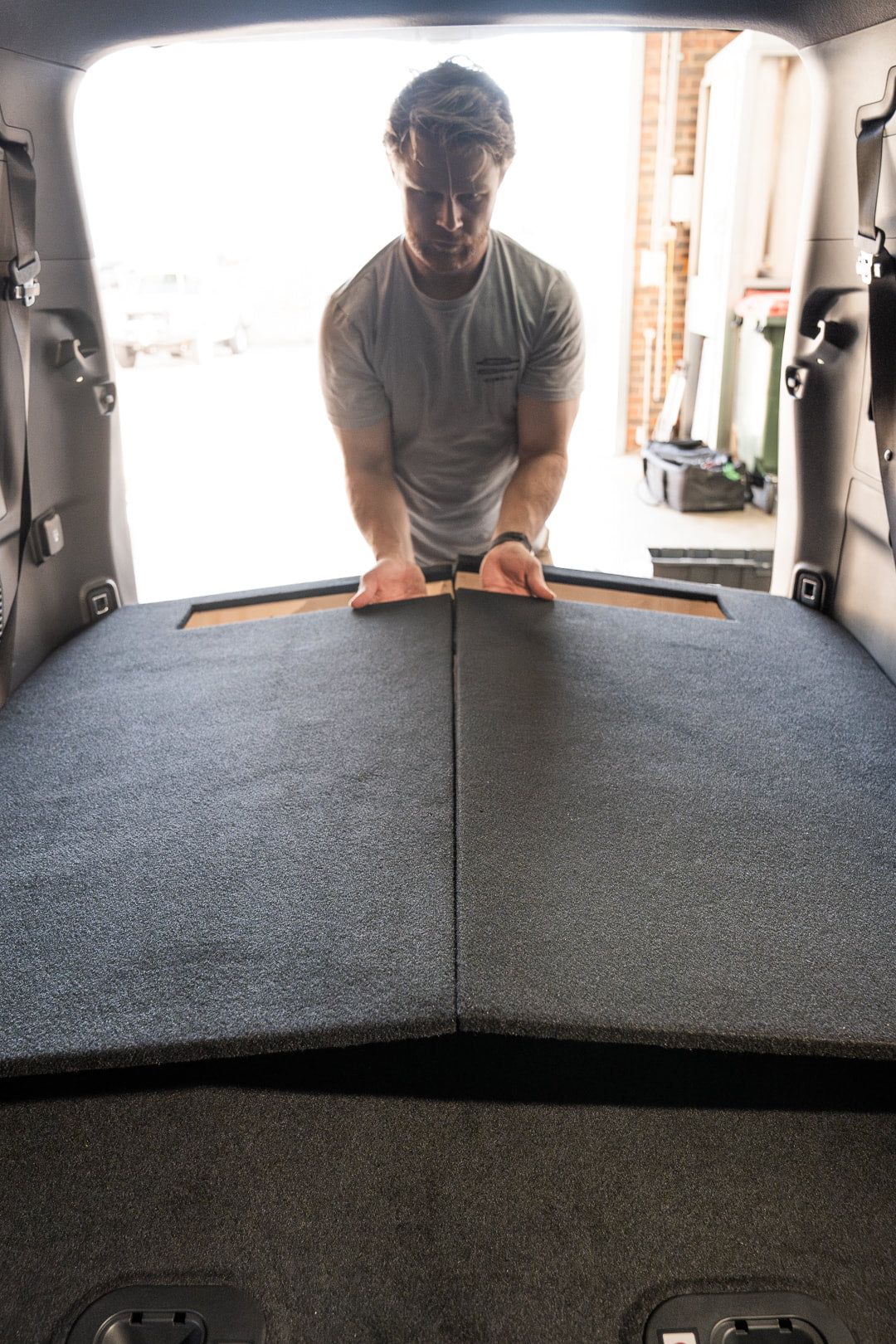

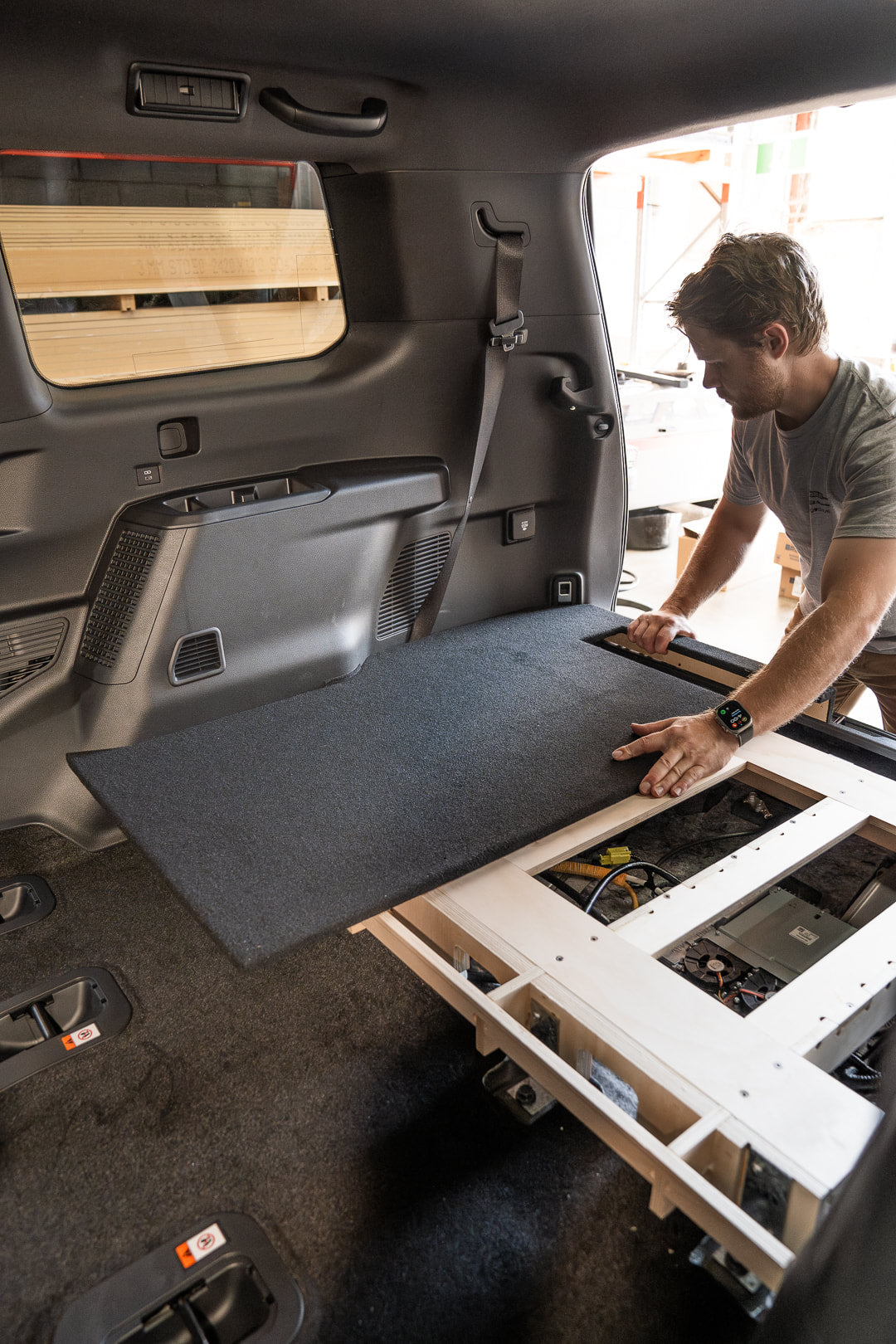

Align the platform panels on top of the subframe with the middle raised and lower them together, ensuring they fit securely.

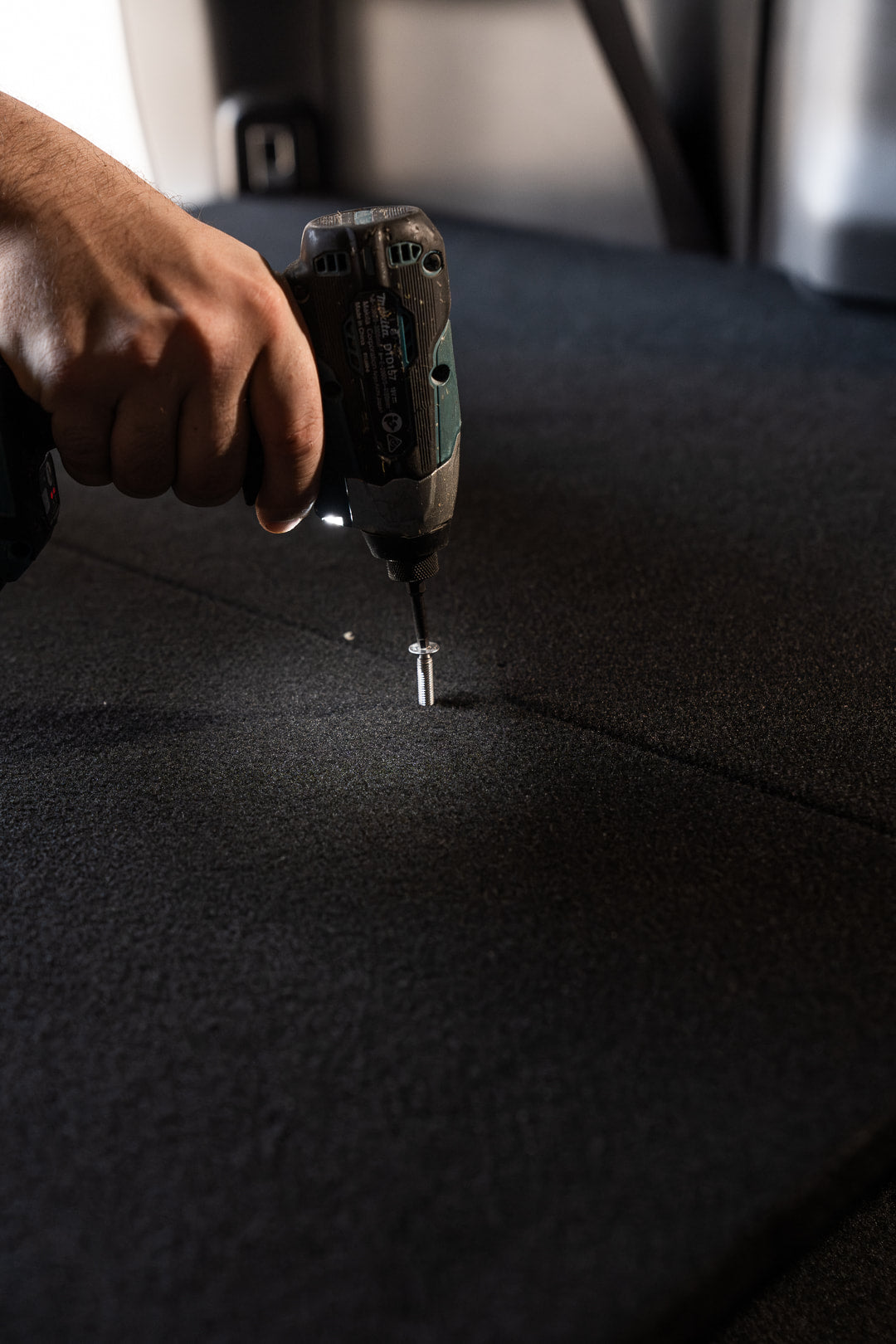

Once in place, use the 14 platform bolts to secure the platform to the subframe.

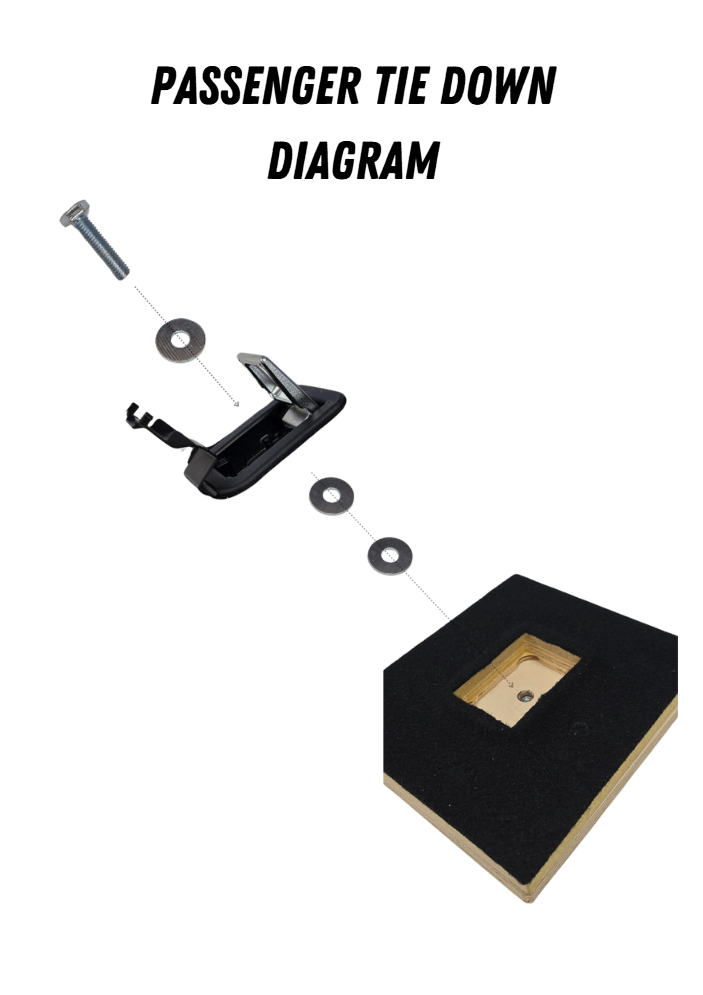

Diagram for the passenger side tie down, Do not use loctite on this tie down.

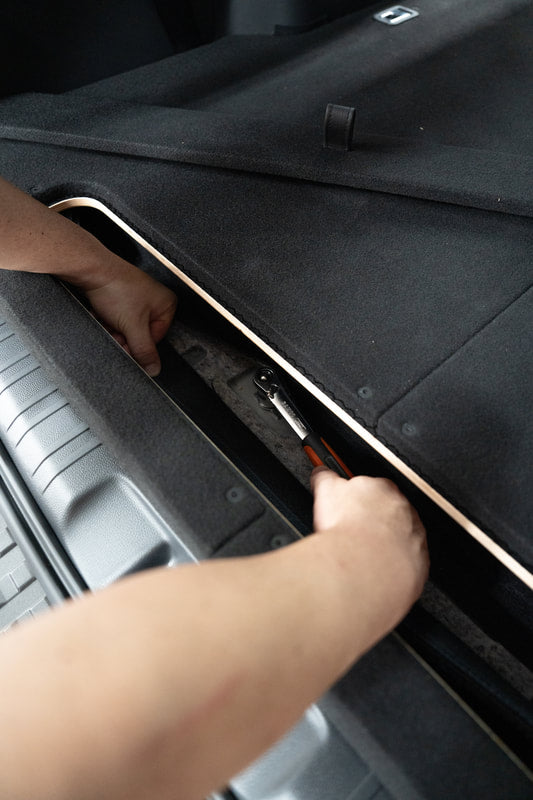

Lift back the carpet and tighten all four frame bolts to the vehicle.

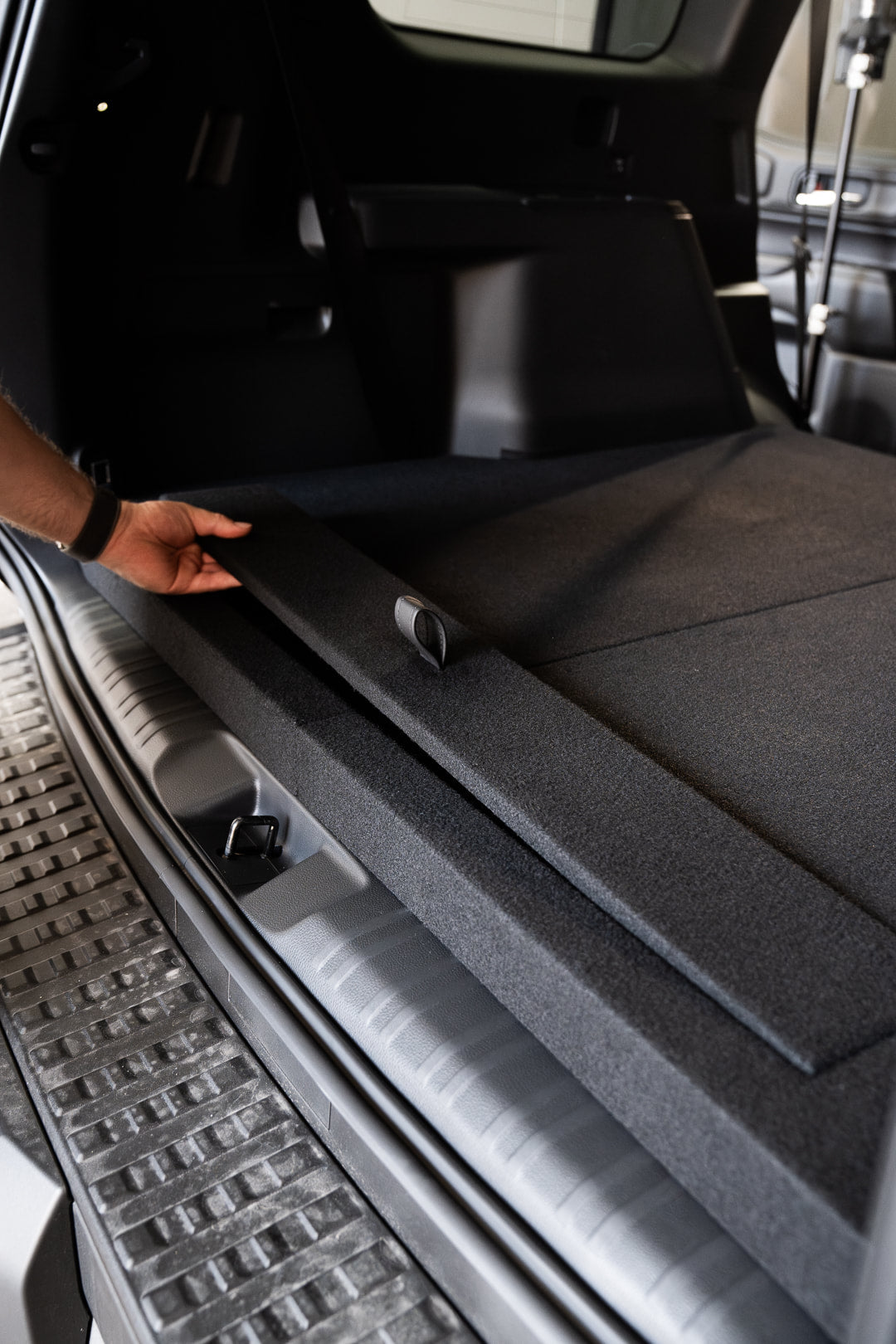

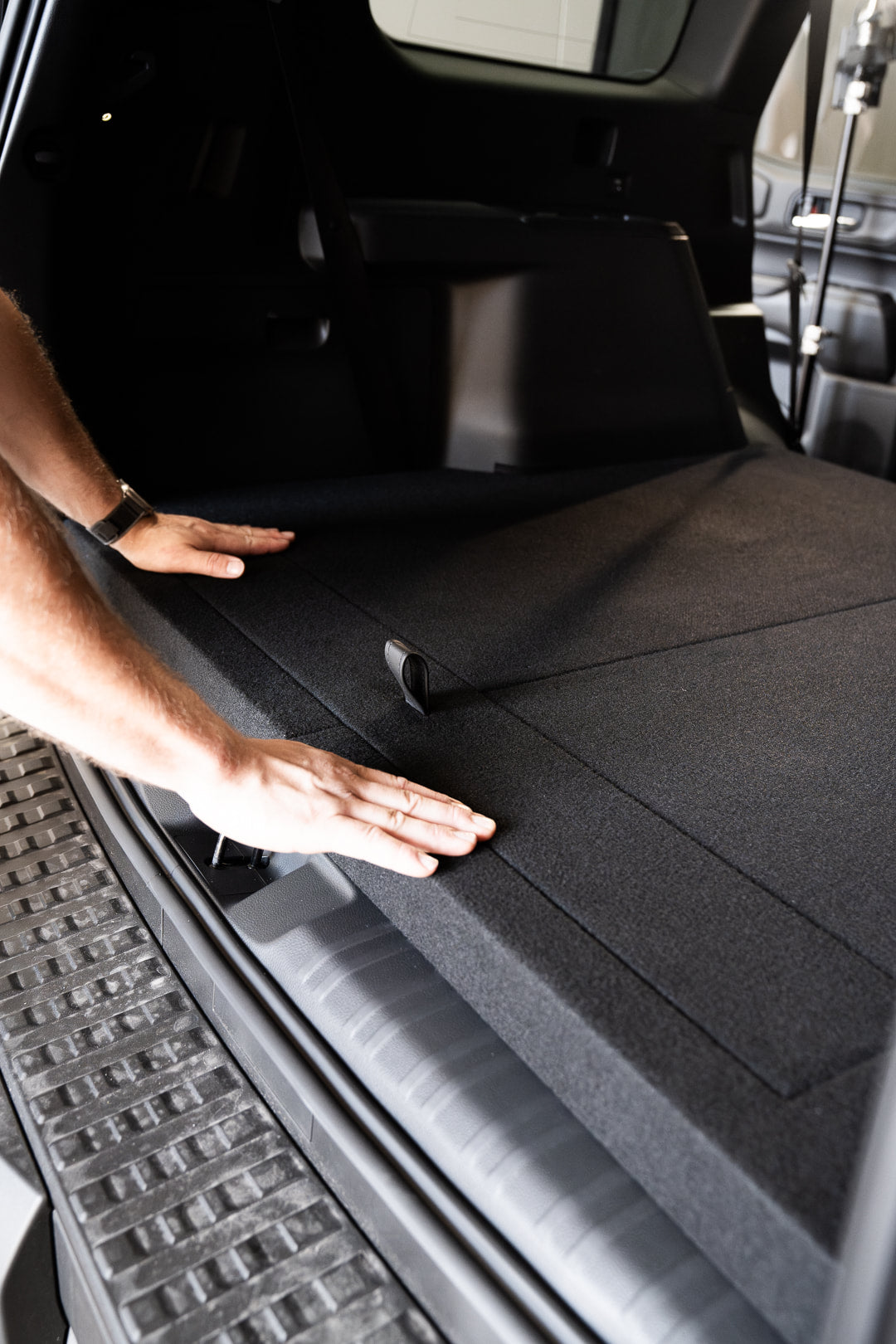

Insert the hatch lid into position,
*Note* this may be a tight fit until the carpet has seated over time.

Tighten the four rear frame bolts to the vehicle.

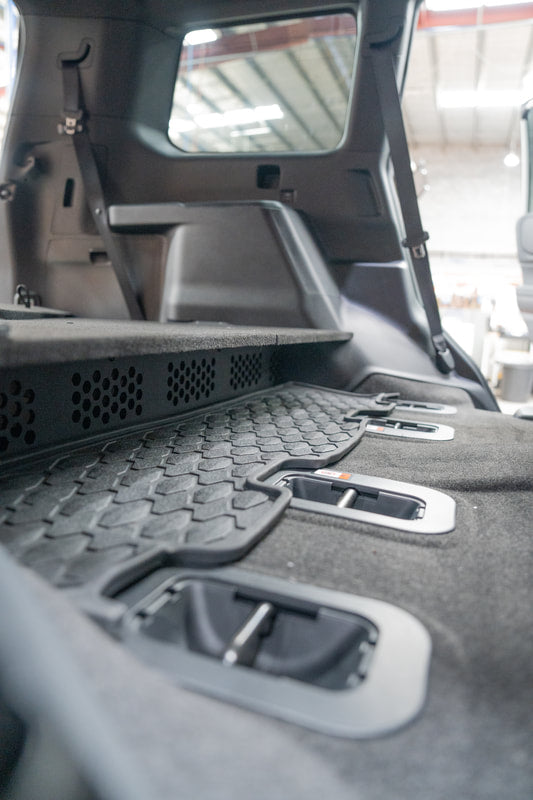

Install the grille to complete the installation.

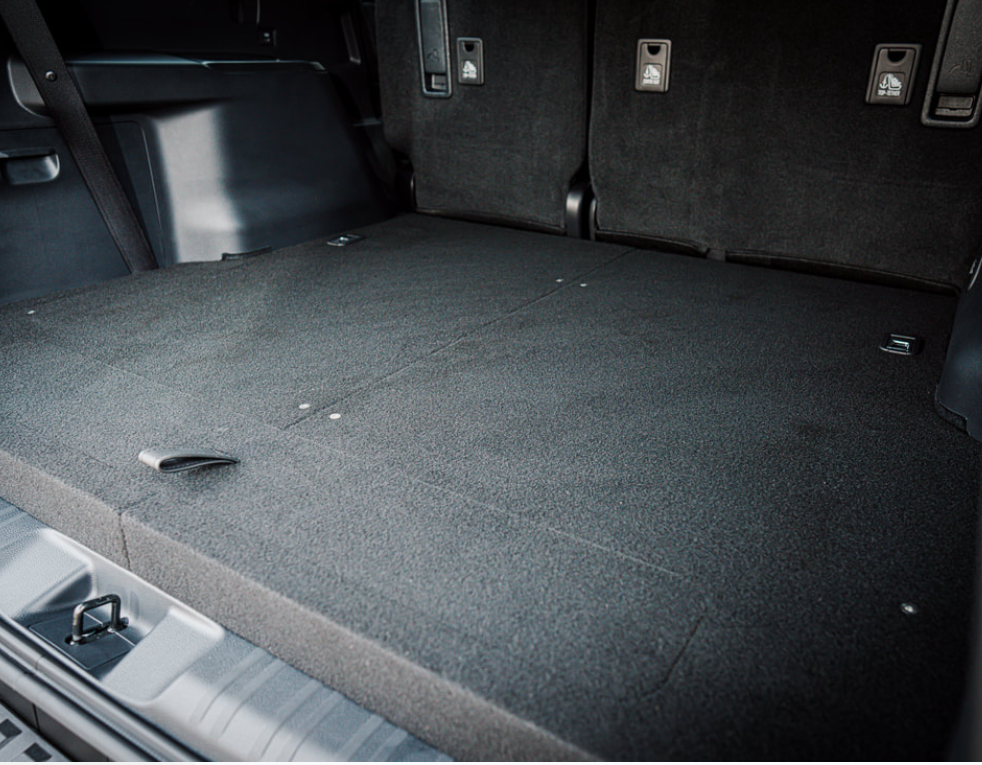

Key Features

Lightweight Design: The platform weighs 19kg, compared to the 42kg of factory seats and trim panels, saving you 23kg.

Increased Cargo Volume: Gain an extra 190L of storage capacity compared to the factory setup with the storage container.

Improved Ergonomics: The lowered floor design enhances accessibility.

Seamless Integration: Utilizes factory seat mounting points, retains access to side storage compartments, and avoids any drilling or cutting.

Convenient Storage: Includes a factory-look leather handle and reuses factory tie-down points.

Ventilation: Equipped with a forward-facing ventilation grille for optimal airflow to the 48V factory system, preventing overheating.

Durable Construction: Made from premium exterior-grade birch plywood and marine-grade carpet, with galvanized steel mounting brackets for added strength.

Factory Look: Designed to complement the vehicle’s interior, with plans to confirm compatibility with the factory rubber mat for 5-seat models soon.

Easily Reversible: Return your Prado to its original 7-seat configuration for resale or other needs.

Warranty and Compliance

Warranty Information

"If a customer removes the third-row seats out of the 7-seat LandCruiser Prado variant, the warranty will remain valid for all components of the vehicle besides the third-row components," said a Toyota Australia spokesperson (via CarExpert).

  • No Warranty Voids: Toyota warranties typically remain valid unless the modification directly contributes to a defect. For example, this platform won’t affect claims related to unrelated components, like paint or the instrument cluster.
  • Consult Your Dealer: Contact your local Toyota dealer to confirm specific concerns.

Registration Updates by State

For NSW and other Australian states, it’s recommended to update your registration to reflect the seating capacity change. Below is a guide for each state:

NSW: Contact Transport for NSW to update your registration as advised.

VIC: Notify VicRoads about the seating capacity change.

QLD: Update your registration with the Department of Transport & Main Roads (TMR).

SA: Report any seating modifications to the Department for Infrastructure & Transport.

WA: Notify the Department of Transport (DoT) about seating changes.

TAS: Reflect seating capacity updates with the Department of State Growth.

ACT: Notify Access Canberra of any modifications.

NT: Update your registration with the Department of Infrastructure, Planning & Logistics (DIPL).

Disclaimer: While these recommendations are based on guidelines, it’s your responsibility to confirm requirements with your local authority. Contact us for guidance: sales@consoles.com.au.

Upgrade your Toyota Prado 250 today with our innovative and durable platform. Maximize your storage, retain flexibility, and drive with confidence.

Contact Us Today!

FAQs

Yes, we sell directly to the public and through Toyota dealerships. Dealers can contact us at(02) 9546 7914orsales@consoles.com.au.

For NSW and some other states, registration updates are recommended to reflect the seating capacity change. Consult your local roads authority or an Automotive Engineer for details..

As per a Toyota Australia spokesperson, the warranty remains valid for all components except those directly impacted by the modification. Contact your dealer for specifics.

No warning lights will appear when the rear seats are removed.

Our platform is constructed from premium exterior-grade birch plywood and marine-grade carpet, ensuring durability and safety.
