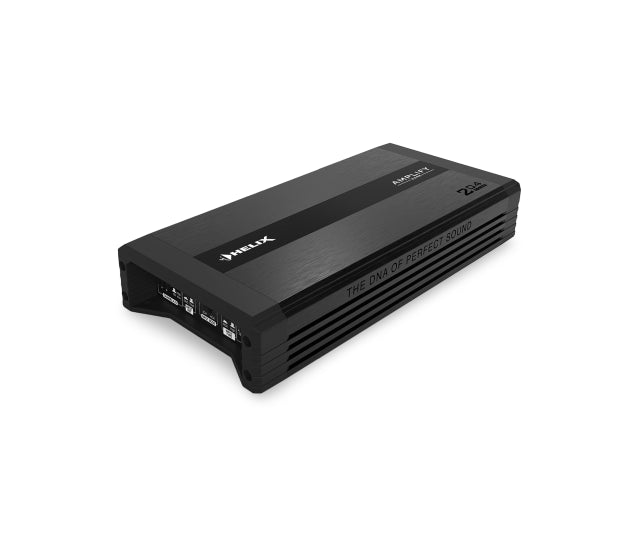

HELIX AMPLIFY 204 X-OVER – 4-Channel Amplifier
Upgrade your vehicle's sound system with the HELIX AMPLIFY 204 X-OVER 4-Channel Amplifier, designed to deliver impressive power, exceptional sound clarity and flexible system configurations.
Featuring advanced Class D amplification, the AMPLIFY 204 X-OVER provides clean, dynamic sound reproduction while maintaining excellent efficiency and a compact installation footprint.
With 4 × 100W RMS at 4 Ohms or 4 × 190W RMS at 2 Ohms, this amplifier is ideal for powering premium component and coaxial speaker systems.
The bridgeable design provides additional flexibility, allowing channels to be combined to power compatible higher-demand speakers or subwoofers.
Integrated adjustable crossover controls allow frequency ranges to be tailored to the connected speakers, helping improve sound clarity, protect against unwanted low-frequency output and achieve a more balanced listening experience.
Key Features
-
Compact 4-channel Class D amplifier
-
4 × 100W RMS at 4 Ohms
-
4 × 190W RMS at 2 Ohms
-
2 × 380W RMS bridged at 4 Ohms
-

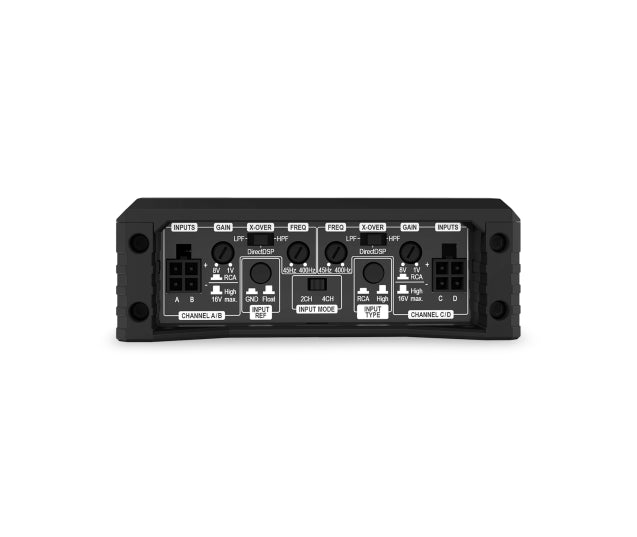

Adjustable crossover controls
-
DirectDSP functionality for external signal processing
-

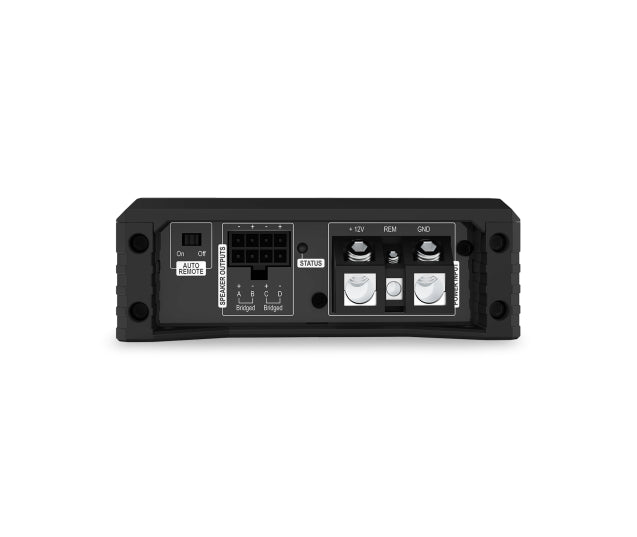

Flexible 4-channel and bridged configurations
-
High-efficiency Class D technology
-
Compact design for discreet installation
-
Engineered by Audiotec Fischer, Germany
Technical Specifications
-
Brand: HELIX
-
Model: AMPLIFY 204 X-OVER
-
Amplifier Type: 4-Channel
-
Amplifier Class: D
-
RMS Power at 4 Ohms: 4 × 100W
-
RMS Power at 2 Ohms: 4 × 190W
-
Bridged RMS Power at 4 Ohms: 2 × 380W
-
Frequency Response: 10Hz – 20kHz
-
Total Harmonic Distortion: 0.02%
-
Signal-to-Noise Ratio: 99dB
-
Damping Factor: 70
-
Amplifier Dimensions: 248 × 124 × 40mm
-
Manufacturer-Listed Weight: 3.1kg
Important Information
The AMPLIFY 204 X-OVER is suitable for premium aftermarket speaker upgrades and compatible custom automotive audio systems.
Its integrated crossover controls allow it to operate without requiring a separate DSP for basic frequency management.
Professional installation is recommended to ensure appropriate wiring, impedance matching and crossover configuration.
Sold individually. Speakers, subwoofers, wiring kits and installation accessories are not included.
