HELIX M SIX Amplifier

HELIX M SIX - Versatile 6-Channel Amplifier

Elevate your audio experience with the HELIX M SIX, a versatile 6-channel amplifier designed to handle a variety of speaker configurations, including 3-way, 2-way, or subwoofer applications. With a powerful output of 100 Watts RMS per channel at both 4 Ohms and 2 Ohms, this compact amplifier delivers exceptional sound performance while remaining cool and efficient, thanks to its advanced Class D technology.

Key Features:

• High Output Power: Each channel provides 100 Watts RMS, ensuring your speakers produce dynamic sound regardless of the configuration.
• Bridged Configurations: Delivering up to 3 x 200 Watts RMS, the M SIX adapts effortlessly to your audio needs, allowing you to maximize performance.
• Start-Stop Capability: Designed for modern vehicles, this amplifier continues to operate even when the battery voltage drops to 6V during engine cranking, ensuring reliability on the road.
• Integrated Active Crossover: Fine-tune your sound with highpass, lowpass, bandpass, and subsonic filters for tailored audio performance.

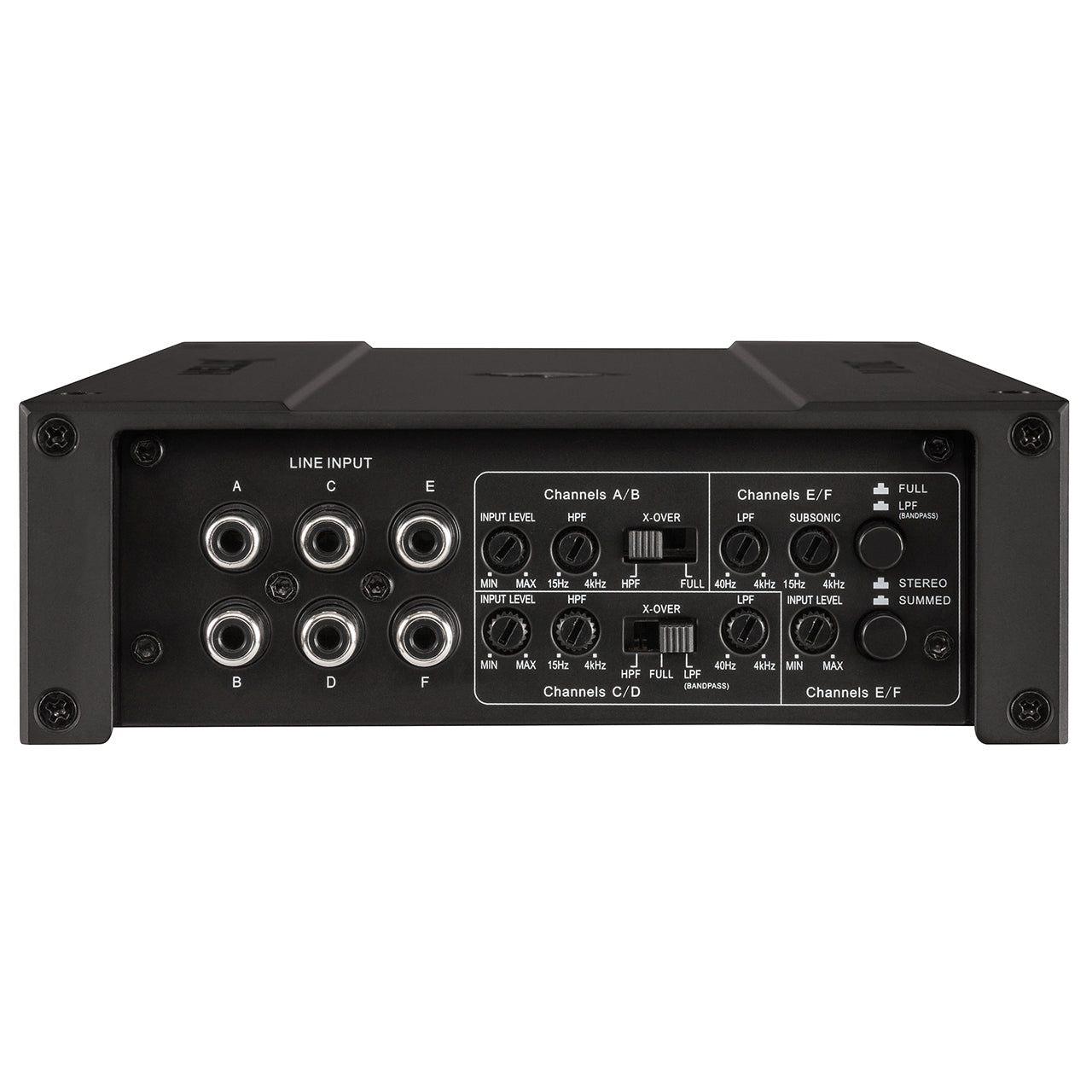

• Flexible Input Routing: The "Input mode" switch on channels E & F allows for adaptable input signal routing to fit your specific setup.

Technical Specifications:

• Output Power RMS:
  • 6 x 100 Watts @ 4 Ohms
  • 6 x 100 Watts @ 2 Ohms
  • Bridged: 3 x 200 Watts @ 4 Ohms
• Class D Technology: Ensures maximum efficiency and minimal heat generation.
• Frequency Response: 10 Hz - 30,000 Hz for a broad audio range.
• Signal-to-Noise Ratio: 98 dB (A-weighted) for crystal-clear sound without distortion.
• Damping Factor: 100 for precise control over speaker movement.

Dimensions:

• Size: 50 mm (H) x 320 mm (W) x 154 mm (D) / 2.00" x 12.60" x 6.06"

What's Included:

• 1 x HELIX M SIX Amplifier
• 1 x Mounting Material
• 1 x Instruction Manual

The HELIX M SIX amplifier is your go-to solution for powerful and versatile audio performance in any vehicle. Its compact design, high output capability, and extensive feature set make it a perfect addition to any sound system. Upgrade today and enjoy the difference!
