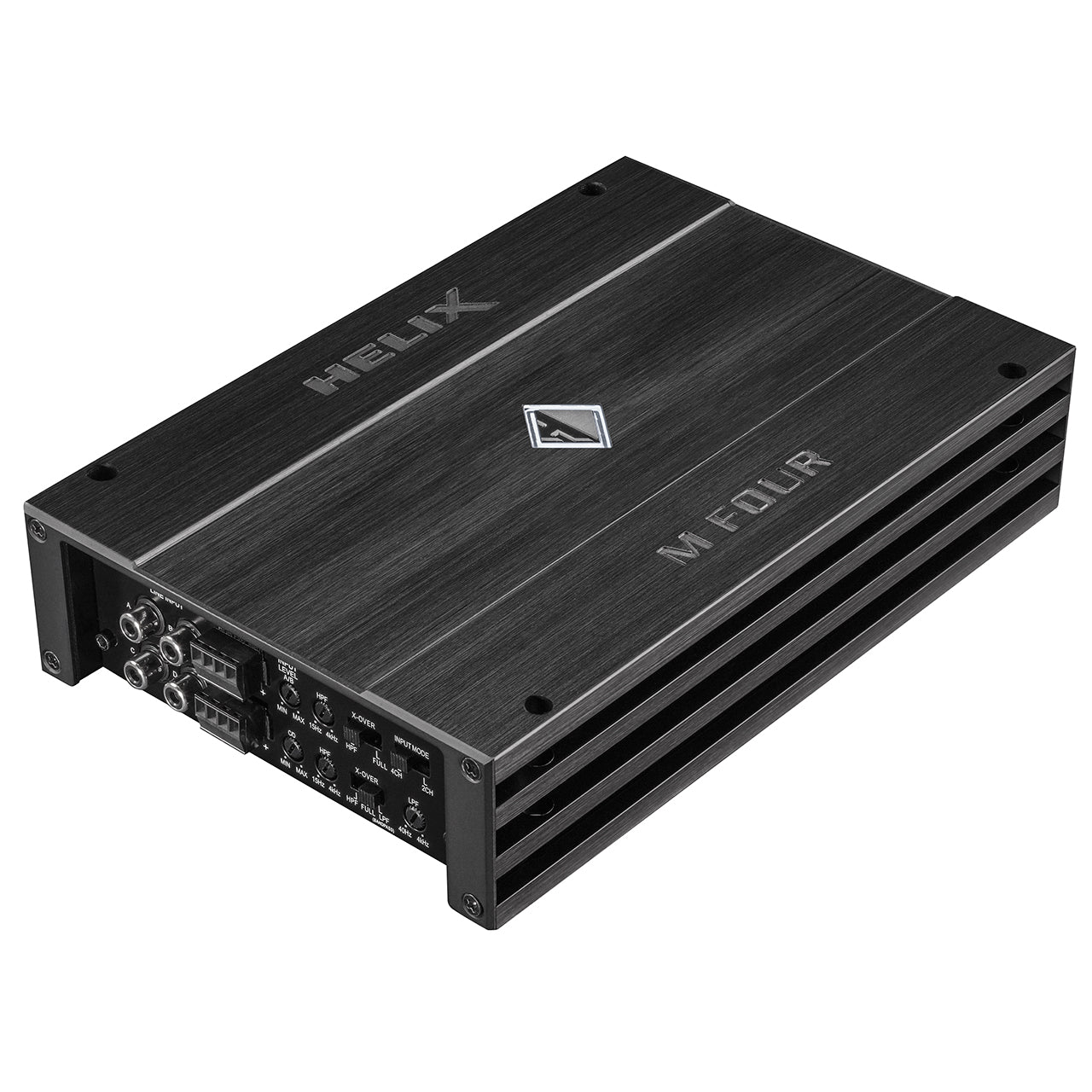

HELIX M FOUR Amplifier

HELIX M FOUR - High-Performance Class D Amplifier

Revitalize your audio system with the HELIX M FOUR, a compact yet powerful amplifier designed to elevate the sound experience in your vehicle. Delivering an impressive 100 Watts RMS per channel into both 4 Ohms and 2 Ohms loads, this amplifier packs a punch while maintaining its cool thanks to its highly efficient Class D topology. Whether you opt for a 3-channel or 2-channel configuration, the M FOUR can output up to 2 x 200 Watts RMS of clean, undistorted power.

Key Features:

• Compact Powerhouse: The M FOUR’s small footprint allows for easy installation without compromising on output power, providing 100 Watts RMS per channel at both 4 and 2 Ohms.
• Smart Technology: Equipped with start-stop capability, the M FOUR operates smoothly even when your vehicle’s voltage drops to 6V, ensuring reliable performance during engine cranking.
• Advanced Input Handling: The innovative ADEP (Advanced Diagnostics Error Protection) circuit eliminates issues commonly associated with connecting aftermarket amplifiers to OE car radios, preventing diagnostic errors and maintaining essential features like fader functions.
• Integrated Active Crossover: Customize your audio experience with built-in highpass, lowpass, and bandpass filters to suit your sound preferences.

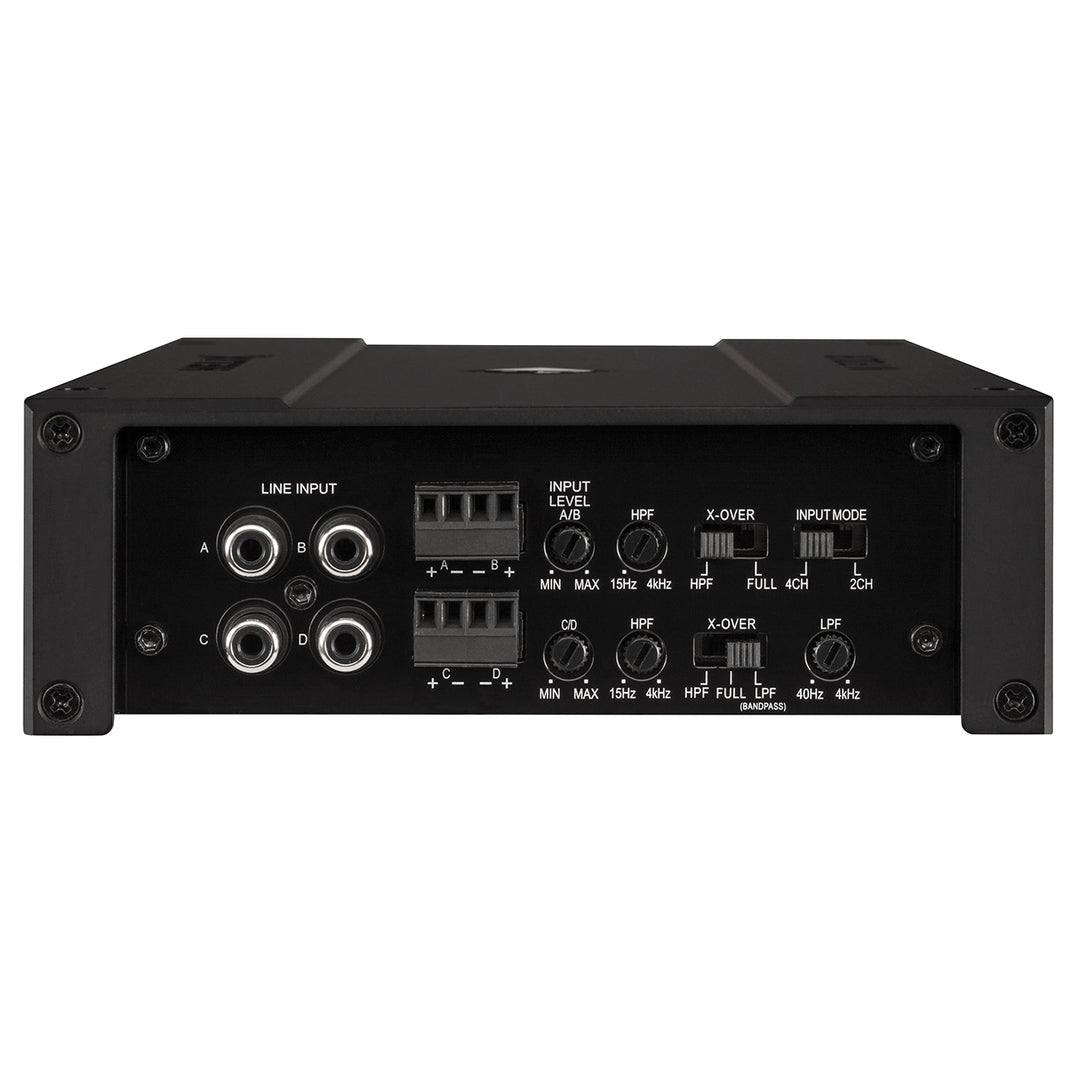

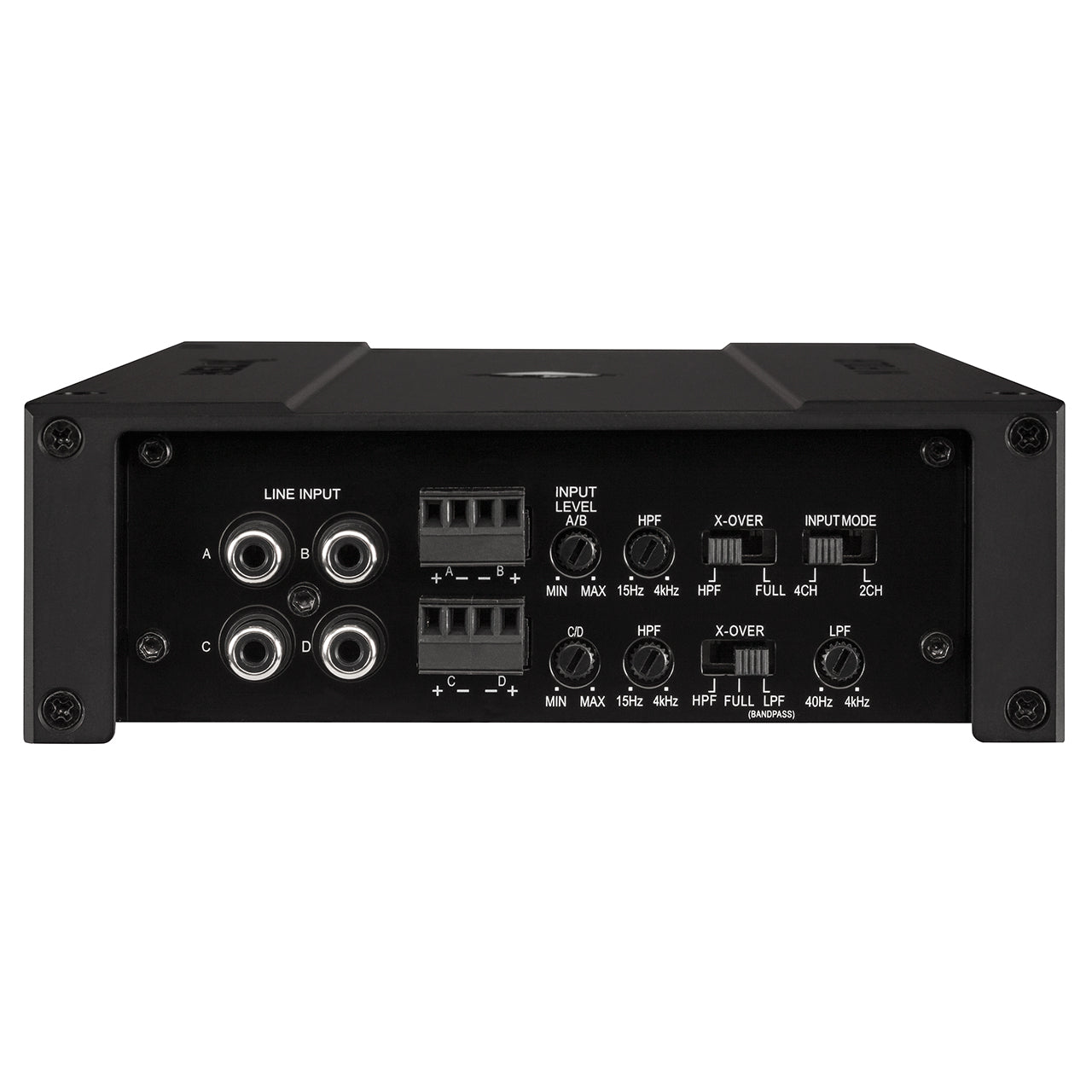

• Flexible Input Options: The amplifier includes 4 RCA inputs and 4 high-level speaker inputs, along with a remote in for seamless integration into your audio system.

Technical Specifications:

• Output Power RMS:
  • 4 x 100 Watts @ 4 Ohms
  • 4 x 100 Watts @ 2 Ohms
  • 2 x 200 Watts (Bridged @ 4 Ohms)
• Class D Technology: Delivers maximum efficiency with minimal heat dissipation.
• Frequency Response: 10 Hz - 30,000 Hz for rich and dynamic audio playback.
• Signal-to-Noise Ratio: 98 dB (A-weighted) for clear, distortion-free sound.
• Damping Factor: 100 for excellent control over speaker movement.

Dimensions:

• Size: 50 mm (H) x 230 mm (W) x 154 mm (D) / 2.00" x 9.06" x 6.06"

What's Included:

• 1 x HELIX M FOUR Amplifier
• 1 x Mounting Material
• 1 x Instruction Manual

Elevate your driving experience with the HELIX M FOUR. Designed for modern vehicles and equipped with intelligent features, this amplifier is your ultimate solution for achieving high-quality sound performance on the road. Upgrade today and enjoy the perfect blend of power, efficiency, and advanced technology!
