Rear Wall Panels – Frequently Asked Questions
General Questions (All Versions)
Q: What does the Rear Wall Panel do?
A: It provides a clean, contoured finish to the rear wall of your vehicle while retaining essential factory storage. It can also be configured to house a subwoofer and/or lithium battery in the upgraded versions.
Q: Will the Rear Wall Panel fit with sound deadening installed?
A: Yes it will fit over the top of 'Stage 1' sound deadener (2mm peel-and-stick foil layer), but it will not fit with full 'Stage 2' sound deadening such as mass noise liner. Our panel itself acts as an effective sound deadening solution and is more effective than Stage 2 liner.
Q: Is it easy to fit?
A: Yes. It installs using four factory holes with no damage to the vehicle. A nutsert tool is required to install four 6mm nutserts. Full installation hardware and instructions are included.
Q: What is it made from?
A: All versions are made from exterior-grade marine bonded plywood, with the lower section upholstered in carpet for durability and the upper section in vinyl to match the interior.
Q: Can it be colour matched to my interior?
A: Yes, we offer DeluxeTrim Vinyl in Black or Grey to match your seats and trims.
Q: Can it be built to suit the Multi Drive Technologies Child Restraint Bracket?
A: Yes, we can customize the cutout to suit this bracket for an additional cost.
Standard Rear Wall Panel
Q: What’s included?
A:
Contoured wall panel (half carpet / half vinyl)
Retains factory bottle jack and tool bag
Installation hardware and instructions
Q: What’s not included?
A: No audio components, subwoofer enclosure, battery housing, or terminals.
Rear Wall Panel + Subwoofer Enclosure
Q: What’s included?
A:
Everything from the Standard Rear Wall Panel
Sealed subwoofer enclosure (approx. 17L) to suit Focal P25FSE
Pre-cut mounting hole (approx. 235mm)
Terminal board for sub-to-amp wiring
Retains factory bottle jack, tool bag, and jack handles
Q: Do you supply the subwoofer?
A: No, the subwoofer and amplifier are sold separately. We recommend the Focal P25FSE for optimal fit and performance.
Q: Why not fit a larger sub?
A: The enclosure is optimised for the listed subwoofers to ensure correct acoustic performance and fitment without major modifications.
Premium Rear Wall Panel
Q: What’s included?
A:
Everything from the Subwoofer Enclosure version
Custom-fit sealed subwoofer enclosure (for select Focal/Helix models)
Battery enclosure for a lithium battery
Terminal board
Installation hardware and instructions
Q: What needs to be relocated for this version?
A: The factory jack and toolkit must be relocated to accommodate the battery enclosure.
Q: Does the rear seat still fold normally?
A: Yes, but it must be rotated upwards before folding forward for full access.
Q: What are the dimensions?
A: 660mm high x 100mm deep x 1390mm long (deepest point at the sub enclosure).
Fitment & Compatibility
Q: Which vehicles do the Rear Wall Panels suit?
A: Designed specifically for the Toyota 79 Series LandCruiser range
Q: Can the panel be modified to fit other vehicles?
A: These panels are precision-made for the 70 Series and not recommended for other models without custom work.
Q: Will this interfere with my rear seat belts or child restraint points?
A: No, we can provide a Multidrive technologies child restraint cut out.
Q: Can the Rear Wall Panel be fitted with rear side consoles?
A: Yes, it’s compatible with our Rear Side Consoles (sold separately).
Audio & Electrical Integration
Q: Can you pre-wire the panel for me?
A: We can cut and mount provisions for your chosen subwoofer, but wiring installation is typically completed by your audio installer.
Q: Which subwoofers fit the enclosure?
A: The standard enclosure suits the Focal P25FSE, while the premium version can be built for select Focal, Morel and Helix models.

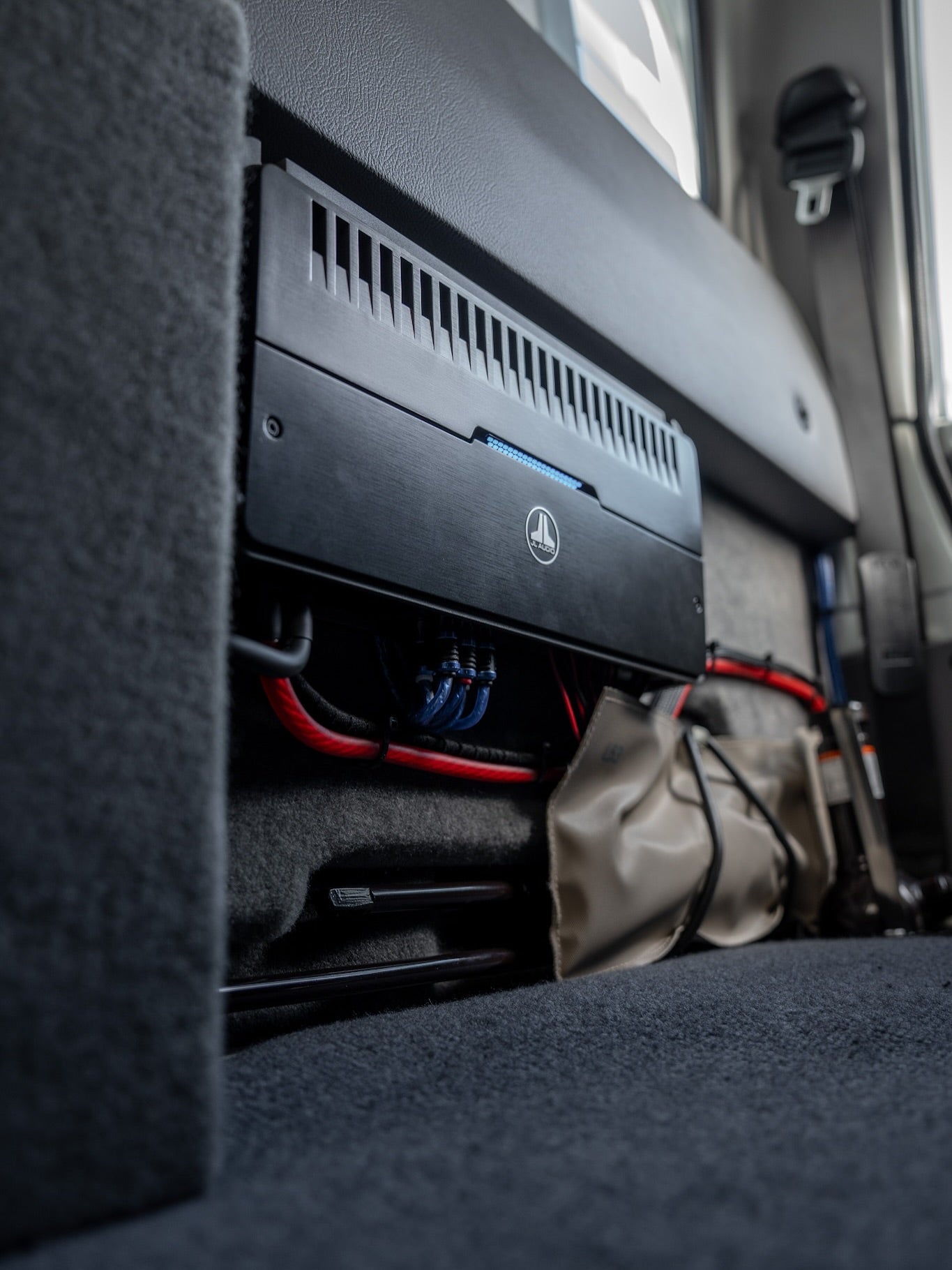

Q: Can I fit an amplifier to the Rear Wall Panel?
A: Yes, there is space to mount an amp alongside the subwoofer enclosure.
Q: Can I run a second battery with this panel?
A: Only the Premium Rear Wall Panel includes a battery enclosure; other versions do not provide battery mounting space.
Installation & Maintenance
Q: Can I install this myself or should I get it professionally fitted?
A: Many customers DIY fit using our instructions, but professional installation is recommended for panels with subwoofer or battery enclosures.
Q: How long does installation take?
A: Around 1–2 hours for the standard version, up to 3–4 hours for the premium version with wiring and battery setup.
Q: Is any cutting or drilling required?
A: No cutting is required. Four 6mm nutserts must be installed into factory holes.
Q: How do I clean the panel?
A: Wipe vinyl sections with a damp cloth and mild detergent; vacuum carpet sections. Avoid harsh chemicals.
