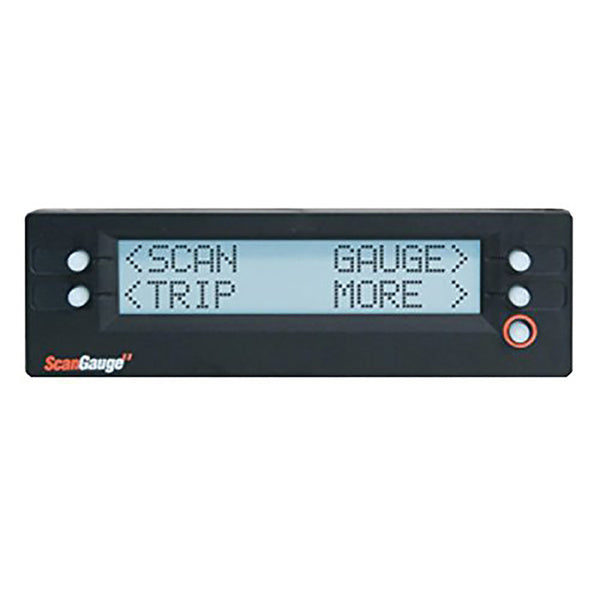

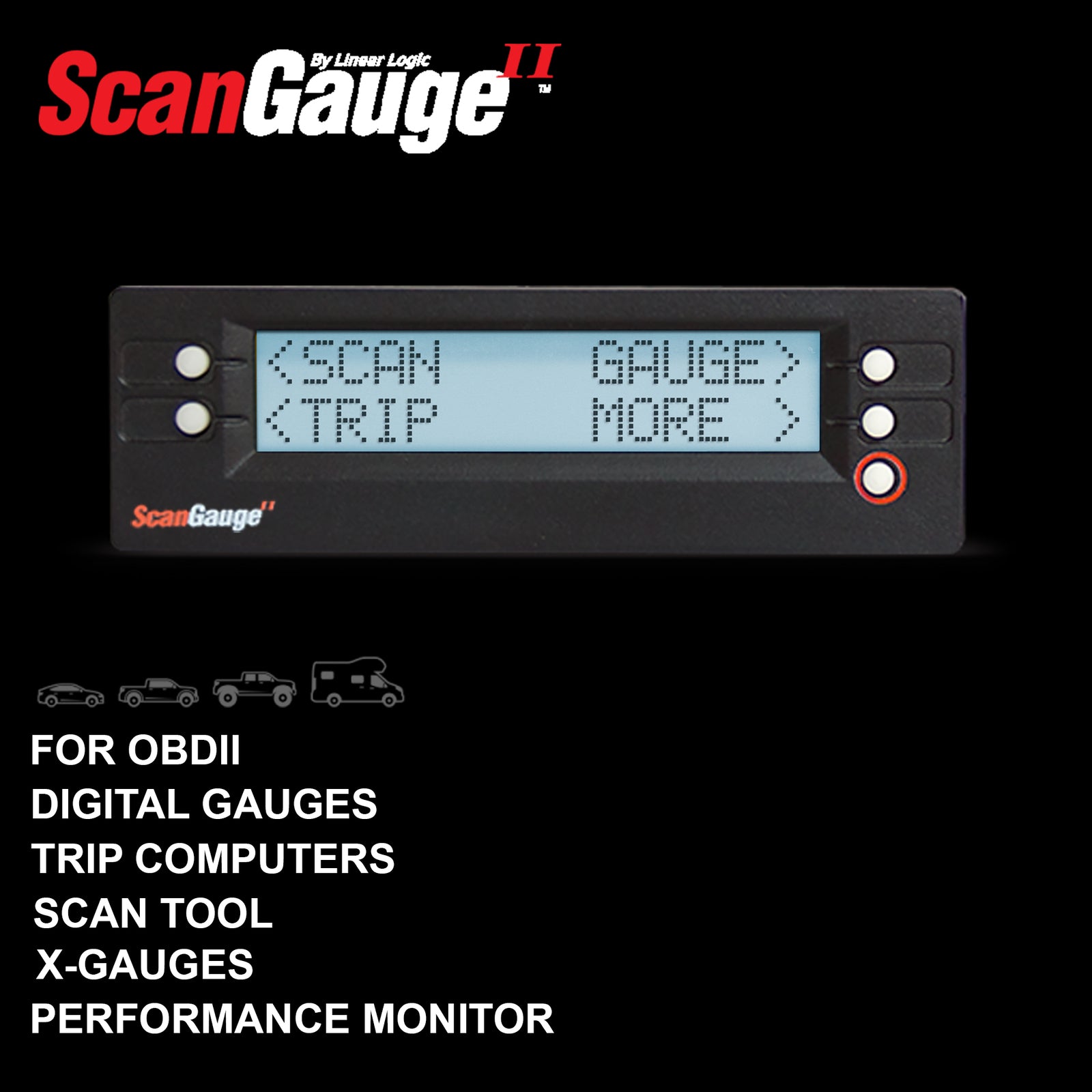

ScanGauge-II – Advanced OBD2 Multi-Gauge & Scan Tool (AU Version)

scsMonitor. Diagnose. Improve.

Description:
The ScanGauge-II is your all-in-one vehicle monitor, combining live digital gauges, trip computers, diagnostic tools, and performance tracking — all in a compact, easy-to-install unit. Designed specifically for OBDII-compliant vehicles, this version features the latest Australian firmware (v4.52AU) and supports all OBDII protocols.

Whether you're a daily commuter, off-roader, or touring enthusiast, ScanGauge-II gives you the tools to understand and optimise your vehicle’s performance and fuel economy.

Key Features

• Compatible with all OBDII protocols

• Displays up to 4 real-time digital gauges per screen

• More than 15 built-in digital gauges

• Trip computers track distance, fuel usage, cost, and more

• Scan Tool reads & clears engine trouble codes

• X-Gauge™ programmable system for vehicle-specific parameters like transmission temp, EGT, DPF soot, etc.

• Performance Monitor™ for 0-60 times, braking, and quarter-mile tracking

• Backlit screen with adjustable colour display

• Menu-driven interface with simple 5-button navigation

• Compact, portable design with 6ft cable and Velcro® mounting

Digital Gauges Include:

• RPM, Speed (MPH/KPH), Horsepower

• Coolant Temp, Intake Air Temp, Fuel Pressure

• Fuel usage (L/100km, L/hr), Cost per km, Trip cost

• Throttle Position, Manifold Pressure, Battery Voltage

• Engine Load, Ignition Timing
  Note: Available data varies by vehicle make and model.

Trip Computers

• Time & Distance Trips: Tracks today’s trip, previous day, and current driving session

• Fuel & Tank Trips: Calculates distance to empty, litres used, average economy, fuel cost, and more

• Stores data even when powered off

OBD2 Scan Tool Functions

• Read and clear DTC (Diagnostic Trouble Codes)

• View conditions when fault occurred

• Reset check engine light

• View onboard test completion status for emissions readiness

What's in the Box

• ScanGauge-II unit (Firmware v4.52AU)

• 1.8m OBD2 ScanGauge cable

• Velcro mounting tape

• Quick Start Guide

• User Manual

Product Specs

• Dimensions: 12.2cm x 3.8cm x 2.55cm

• Power: OBD2 port (no batteries required)

• Install: Plug-and-play with automatic vehicle protocol detection

Trusted by 4WDers, truck drivers, and fleet operators across Australia.
ScanGauge-II gives you the visibility and insight to drive smarter, safer, and more efficiently — no tools, no hassle.
