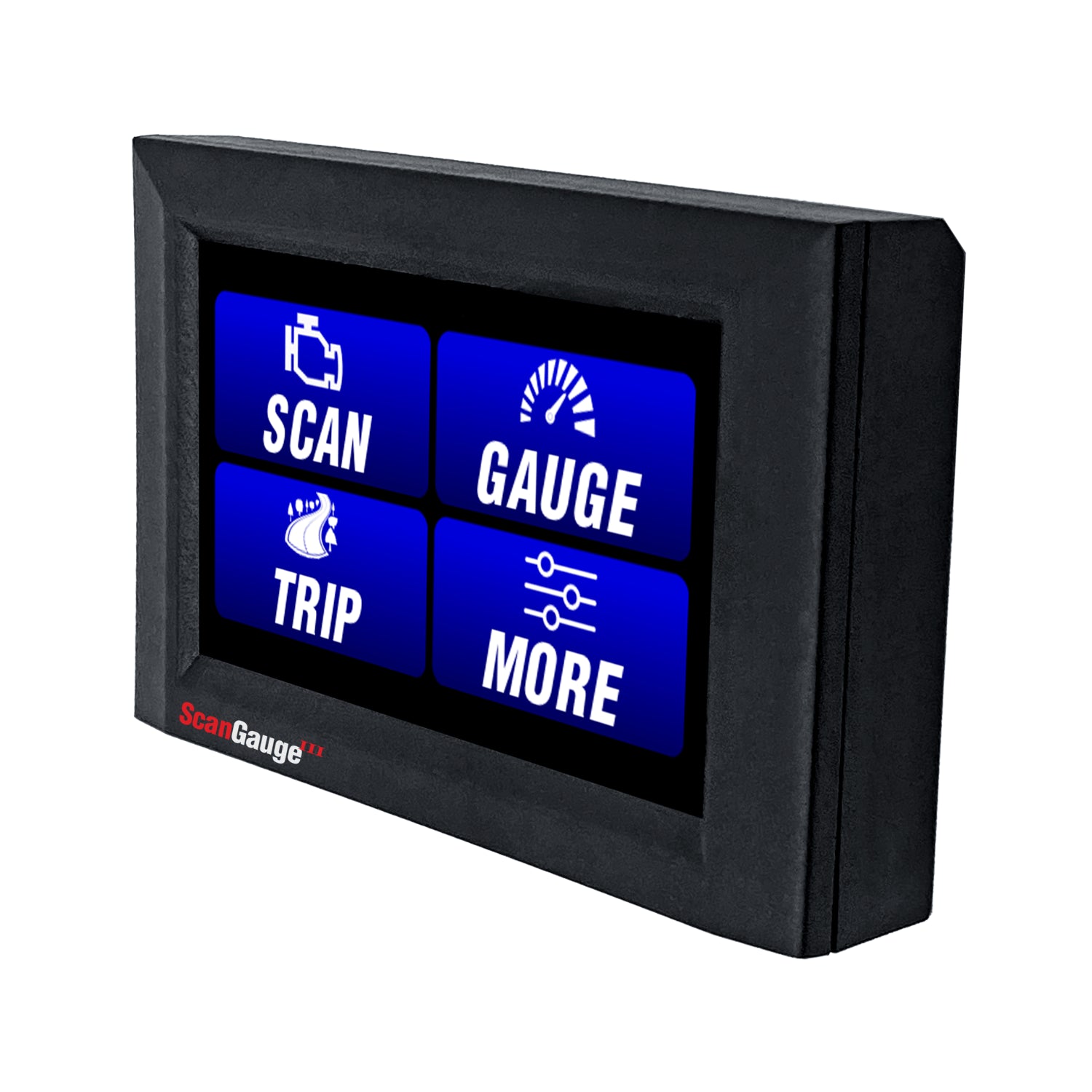

ScanGauge-III – Advanced OBD2 Digital Gauge & Trip Computer

All the features you’ve been asking for — in one powerful, compact unit.

Monitor your vehicle like never before with the ScanGauge-III, the next-generation OBD2 tool that gives you real-time digital readouts, advanced diagnostics, trip tracking, and customisable vehicle-specific gauges — all through a vibrant capacitive touchscreen interface.

Key Features

• Live Digital Gauges: Display up to 9 gauges per screen, fully configurable

• Capacitive Touchscreen: Easy swipe and touch navigation with over 16 million backlight colour options

• X-Gauge™ Support: Add vehicle-specific gauges like transmission temp, EGT, DPF level, oil temp and more

• Trip Computers: 5 built-in trip modes track distance, fuel cost, tank range, speed, idle time, and more

• Scan Tool Functions: Read and clear trouble codes, reset check engine light, and see conditions that triggered a fault

• Fuel Economy Tracking: Instant and average fuel economy, cost per trip, litres per hour, and more

• Auto Scan: Automatically detects X-Gauge support for your vehicle

• Compact & Easy to Install: No tools required – plugs directly into your vehicle's OBD2 port

• Multi-Vehicle Support: Quickly move between vehicles using the included suction mount and 6ft cable

• Compatible with most OBD2-compliant vehicles

Real-Time Gauges Include:

• RPM, Speed, Throttle Position

• Water Temp, Fuel Pressure, Intake Air Temp

• Battery Voltage, Engine Load, Horsepower

• Fuel Usage (L/100km, L/hr, Cost per km)

• Transmission & Oil Temp (via X-Gauge™)
  Note: Available gauges vary by vehicle make/model.

Trip Computers

Track and retain driving data even after shutdown:

• Fuel used / Fuel cost

• Max coolant temp & RPM

• Distance, hours, average speed

• Tank-to-empty and litres per 100km

Diagnostic Tools

• Read & clear engine fault codes

• View conditions when the fault occurred

• Clear check engine lights

• Emissions test readiness monitor

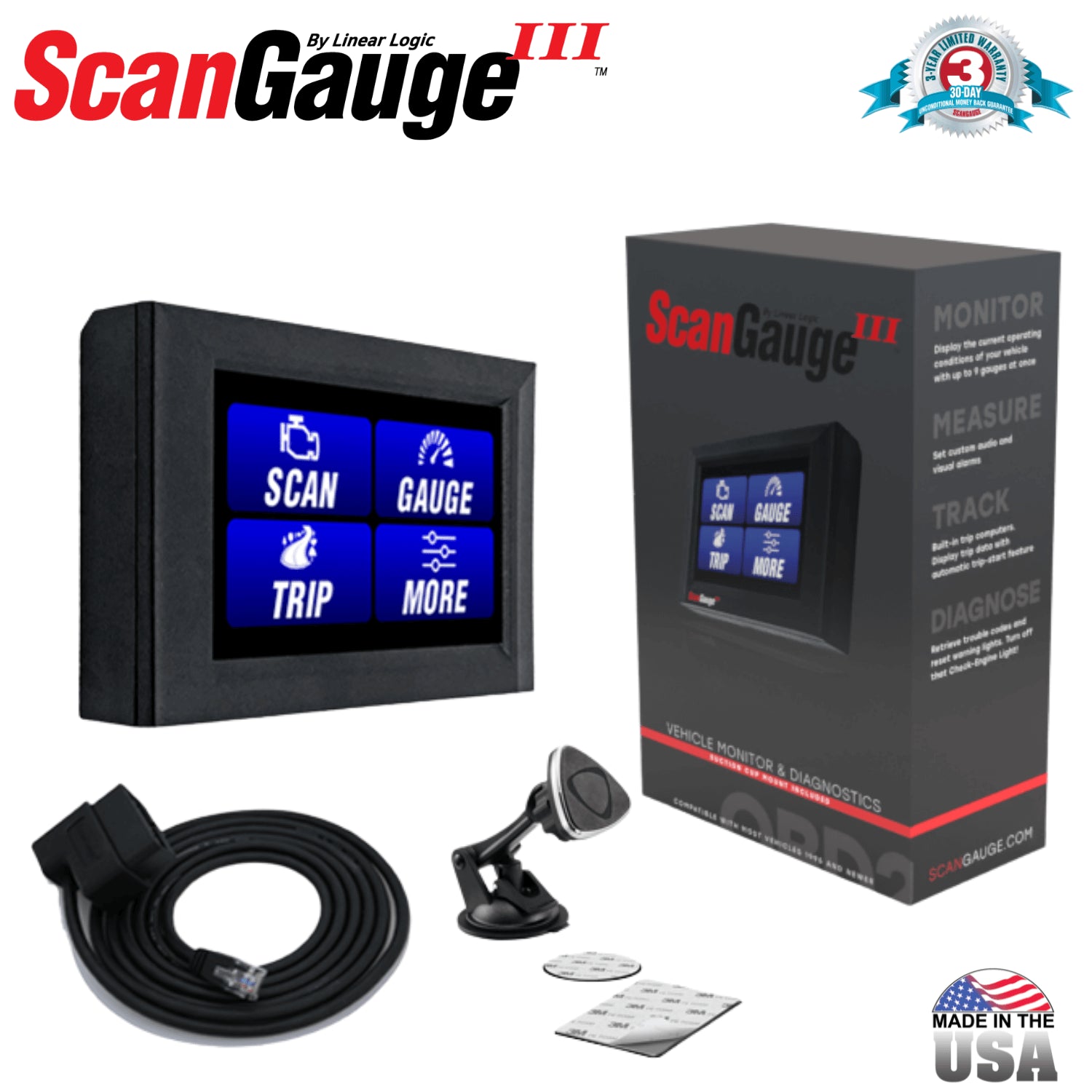

What’s in the Box

• ScanGauge-III main unit

• 1.8m ScanGauge OBD2 cable

• Suction cup mount

Tech Specs

• Dimensions: 12.7cm x 8.1cm x 2.55cm

• Installation: Plug-and-play via OBD2

• Power: No batteries needed

Built for serious drivers, off-roaders, and touring rigs — ScanGauge-III is more than a gauge, it’s your onboard co-pilot.
Order yours today and take full control of your vehicle’s performance.
