HELIX IK S12 12" Subwoofer

HELIX IK S12 - Compact Shallow Subwoofer

Transform your audio experience with the HELIX IK S12, a shallow subwoofer designed for powerful deep bass without sacrificing valuable space. With its ultra-low installation depth, this subwoofer opens up new possibilities for compact and sleek enclosure designs, making it the ideal choice for modern vehicle setups.

Key Features:

• Flat Design, Big Sound: Despite its shallow profile, the IK S12 delivers stunning bass performance that rivals larger woofers, thanks to its low resonant frequency and robust voice coils.
• Sturdy Construction: The speaker features an extremely stiff sandwich paper cone paired with a heavy-duty drive system, allowing for efficient power conversion into impressive sound pressure without compression effects.
• Vibration Reduction: The innovative magnet system includes a threaded hole, enabling secure attachment to the enclosure's back panel to minimize vibrations and enhance sound clarity, even with thinner walls.
• Flexible Configuration: Available in both 1 x 2 Ohms (SVC2) and 2 x 2 Ohms (DVC2) variants, the IK S12 accommodates various amplifier configurations for optimized performance.

All-Inclusive Package for DIY Enthusiasts:

The HELIX IK S12 comes with everything you need for a successful installation:

• High-Quality Connection Terminal: Features gold-plated screw terminals for maximum conductivity.

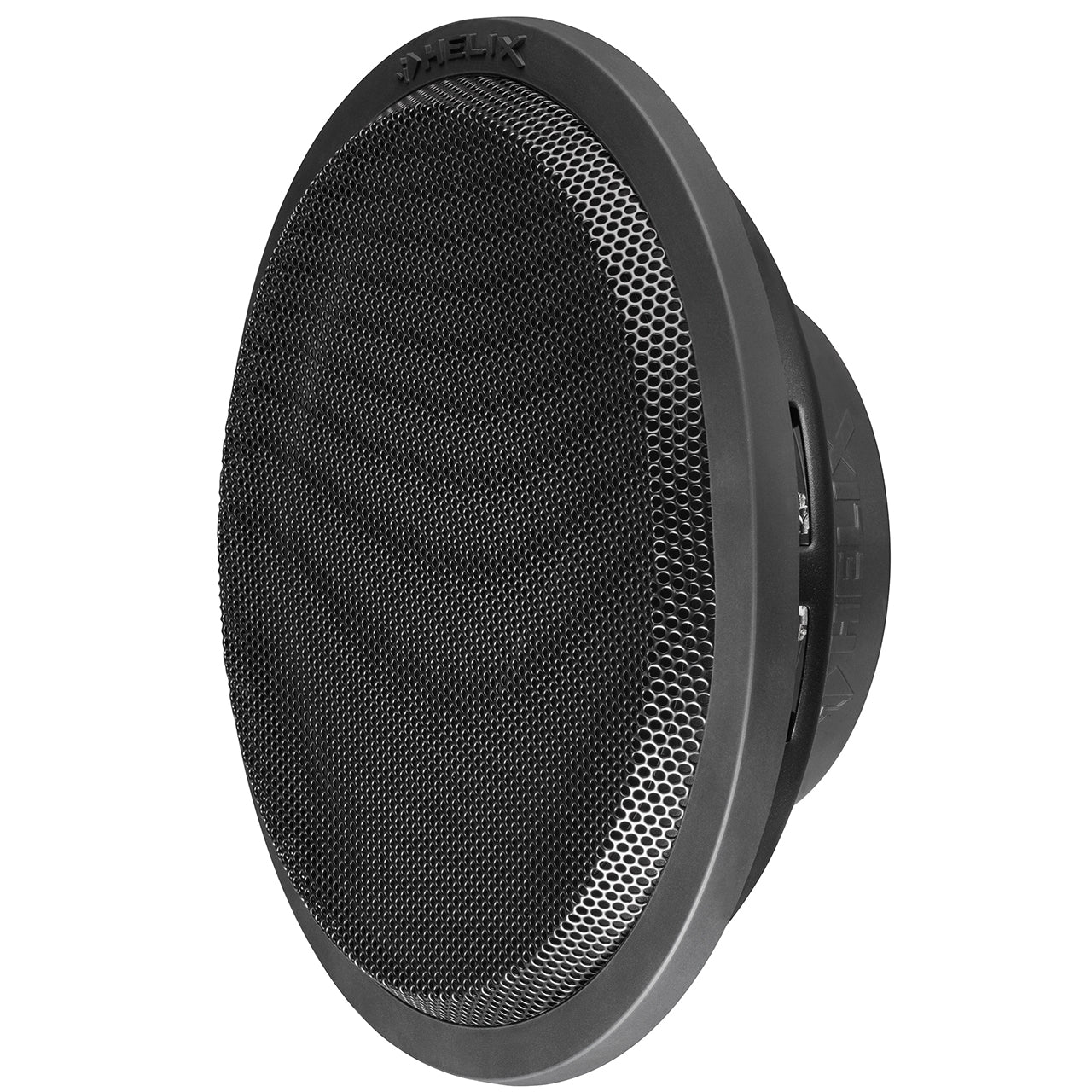

• Included Accessories: Comes complete with a solid protective grille, gasket, and an enclosure connecting terminal.
• Technical Guidance: Our technical data sheet provides recommendations for sealed and vented enclosures, detailing parameters such as net volume, port tuning frequency, and DSP settings for optimal performance.

Technical Specifications:

• Power Handling: 300W RMS / 600W Max
• Impedance: 2 x 2 Ω
• Resonance Frequency: 36 Hz
• Sensitivity: 91.0 dB @ 2.83V / 1m
• Cone Material: Sandwich paper cone
• Outer Diameter: 316 mm (12.44")
• Installation Depth: 95.5 mm (3.76")

Recommended Enclosure Volumes:

• Sealed Box:
  • Net Volume: 22 L
  • Lower Limiting Frequency (-3dB): 39 Hz
• Vented Box:
  • Net Volume: 40 L
  • Port Diameter: 100 mm (3.94")
  • Tuning Frequency: 36 Hz

Scope of Delivery:

• 1 x HELIX IK S12-DVC2 Subwoofer
• 1 x Grille
• 1 x Gasket
• 1 x Enclosure Connecting Terminal
• 1 x Data Sheet

Elevate your audio setup with the HELIX IK S12 and experience the deep bass you’ve always wanted, all while enjoying the flexibility of compact design. Perfect for both casual listeners and serious audio enthusiasts!
